Front Wiper and Washer (Except TMC Made): Notes

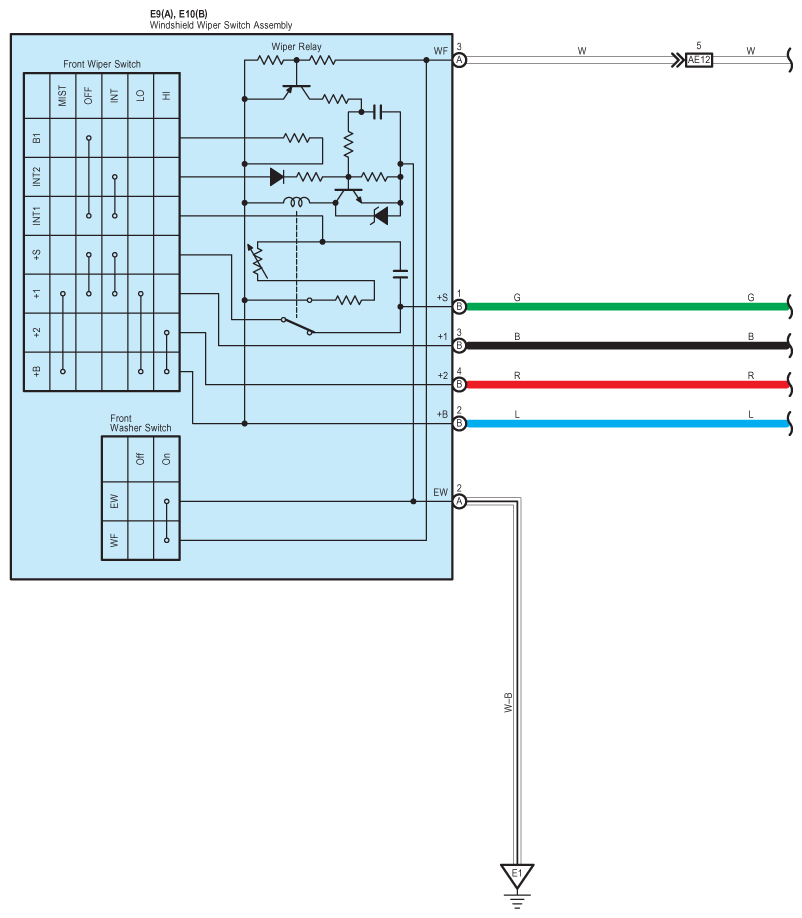

Fig 1: Front Wiper And Washer System Wiring Diagram (Except TMC Made; 1 Of 2)
G09106618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

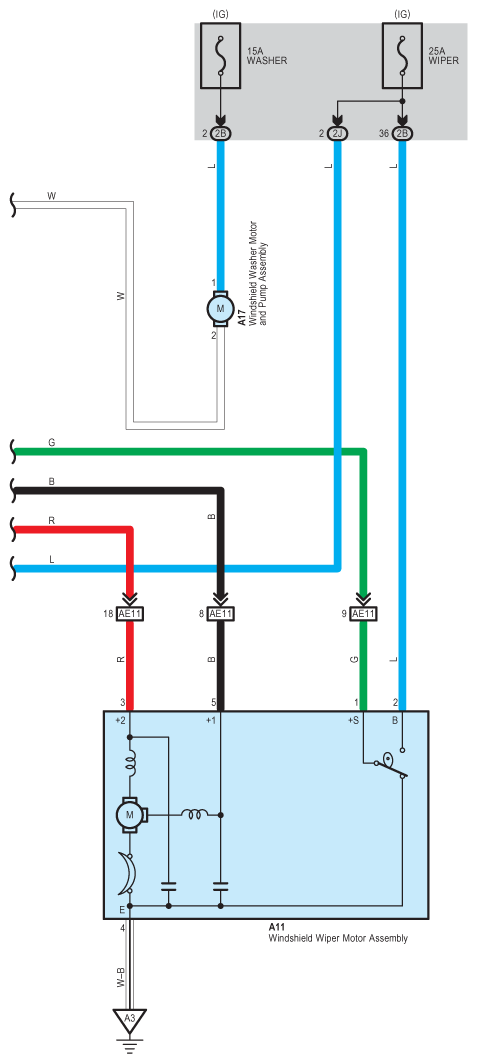

Fig 2: Front Wiper And Washer System Wiring Diagram (Except TMC Made; 2 Of 2)
G09106619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
