Electronically Controlled Transmission and A/T Indicator (TMC Made): Notes

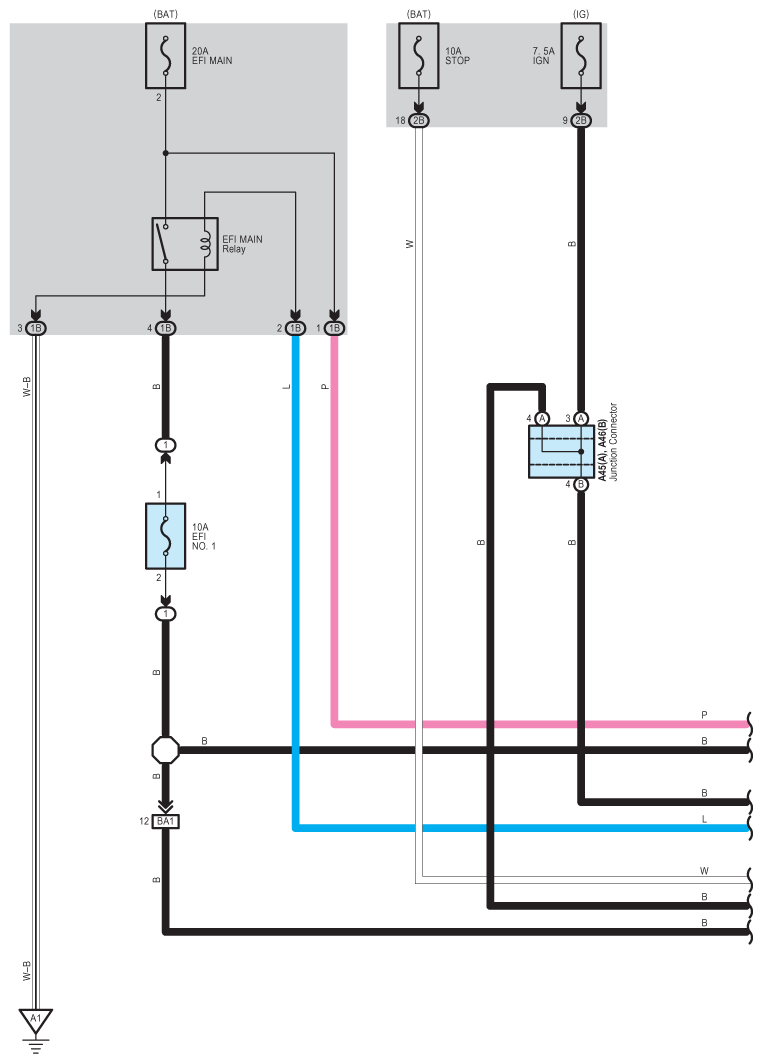

Fig 1: Electronically Controlled Transmission And A/T Indicator System Wiring Diagram (TMC Made; 1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

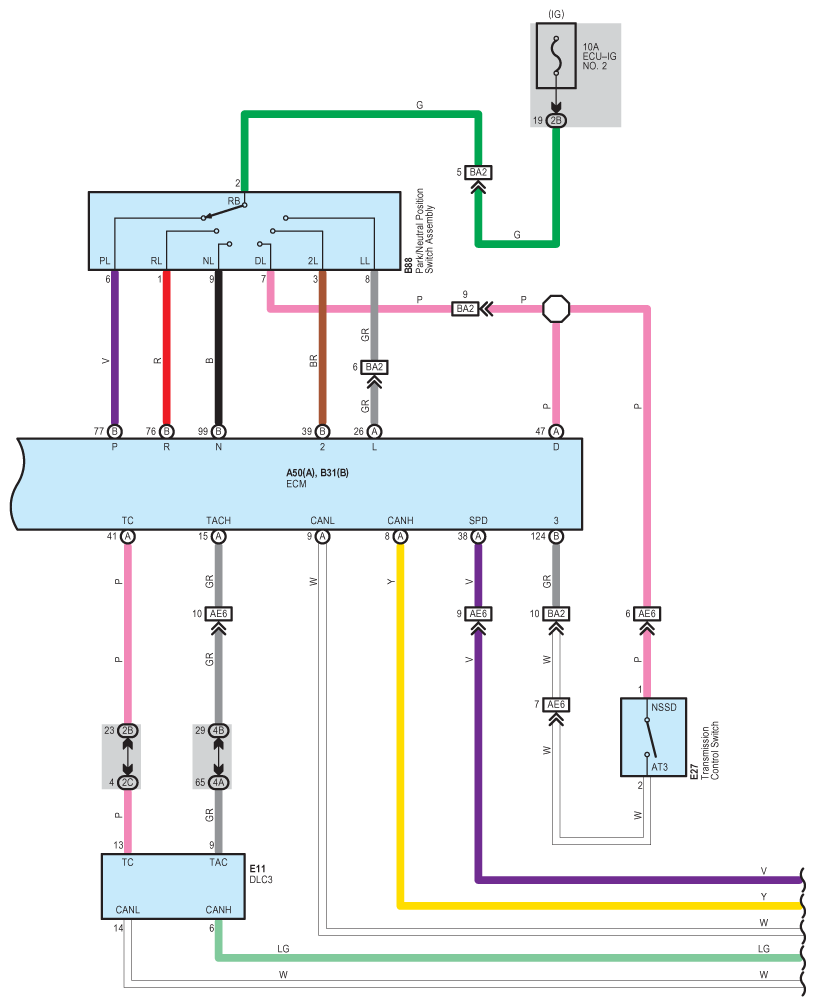

Fig 2: Electronically Controlled Transmission And A/T Indicator System Wiring Diagram (TMC Made; 2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

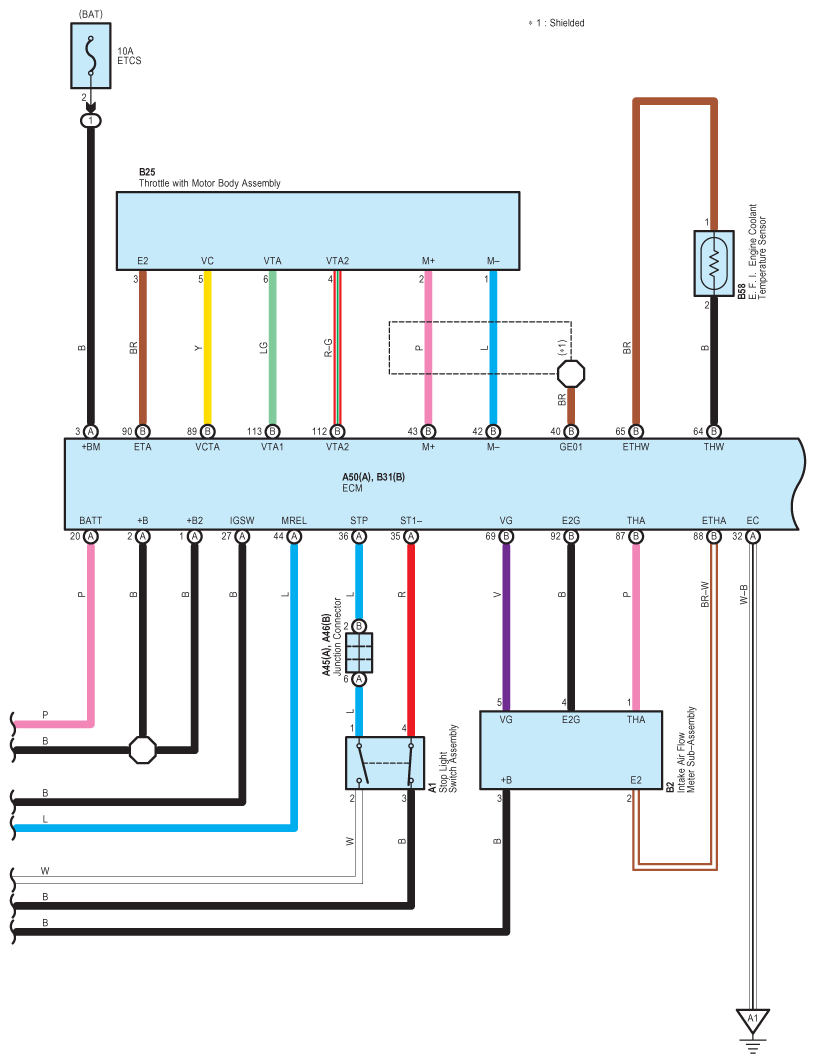

Fig 3: Electronically Controlled Transmission And A/T Indicator System Wiring Diagram (TMC Made; 3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

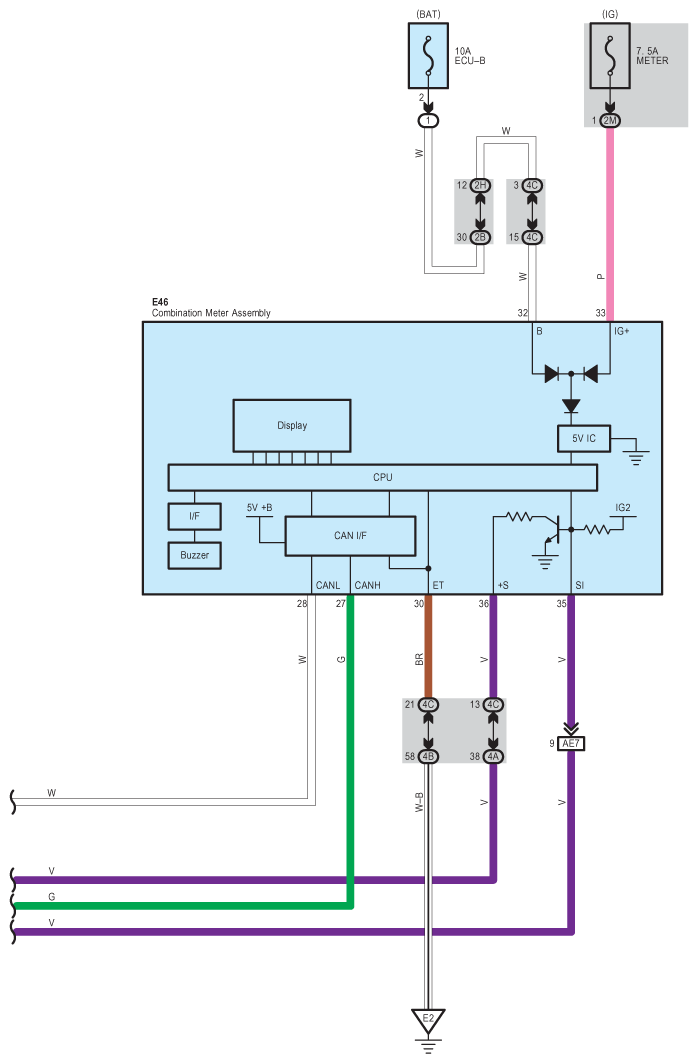

Fig 4: Electronically Controlled Transmission And A/T Indicator System Wiring Diagram (TMC Made; 4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

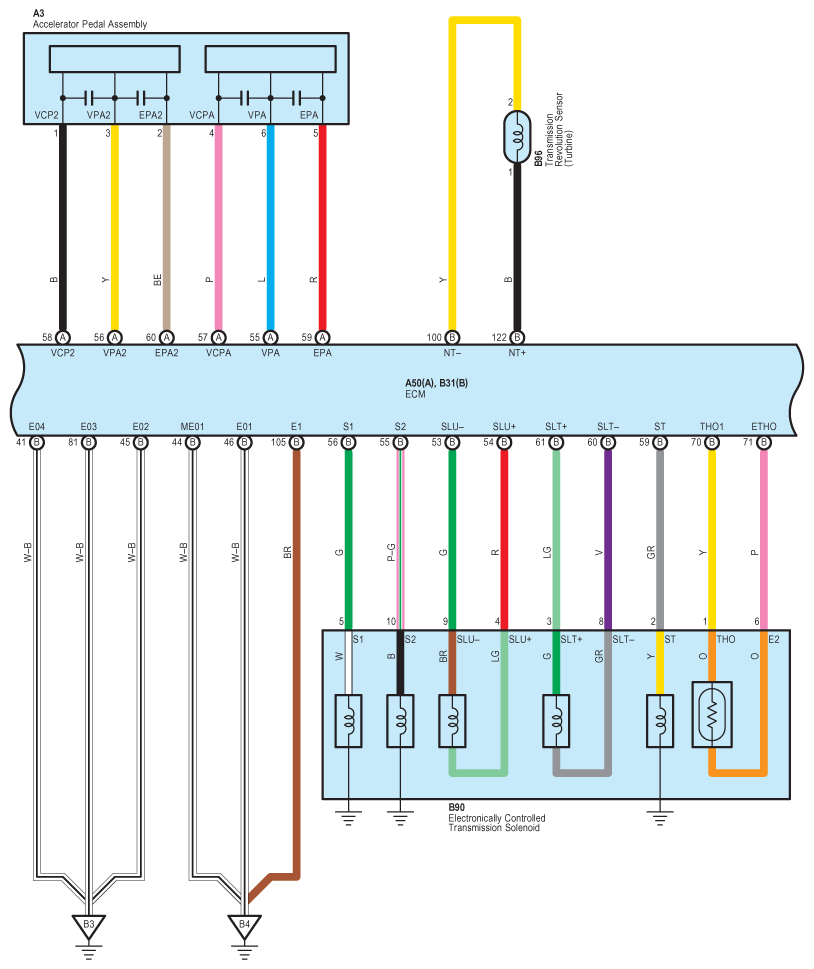

Fig 5: Electronically Controlled Transmission And A/T Indicator System Wiring Diagram (TMC Made; 5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

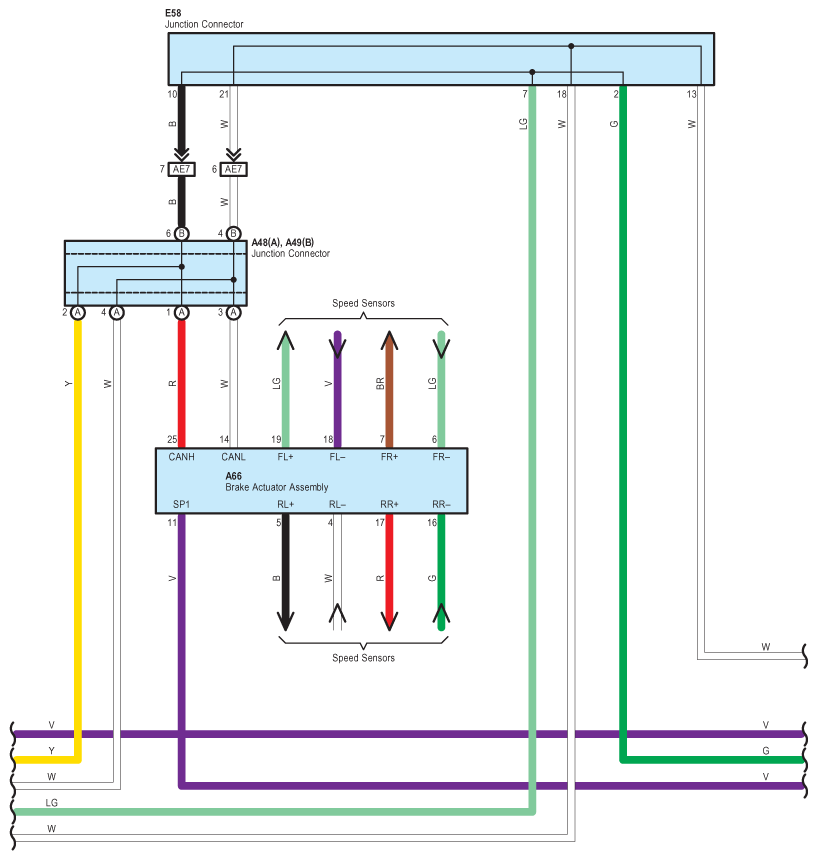

Fig 6: Electronically Controlled Transmission And A/T Indicator System Wiring Diagram (TMC Made; 6 Of 6)
