Cigarette Lighter (Except TMC Made): Notes

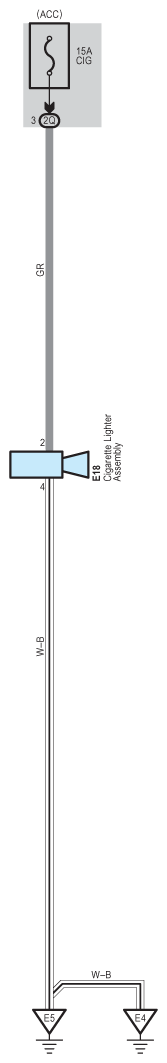

Fig 1: Cigarette Lighter System Wiring Diagram (Except TMC Made)

G09106697

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
