ABS, TRAC and VSC (TMC Made): Notes

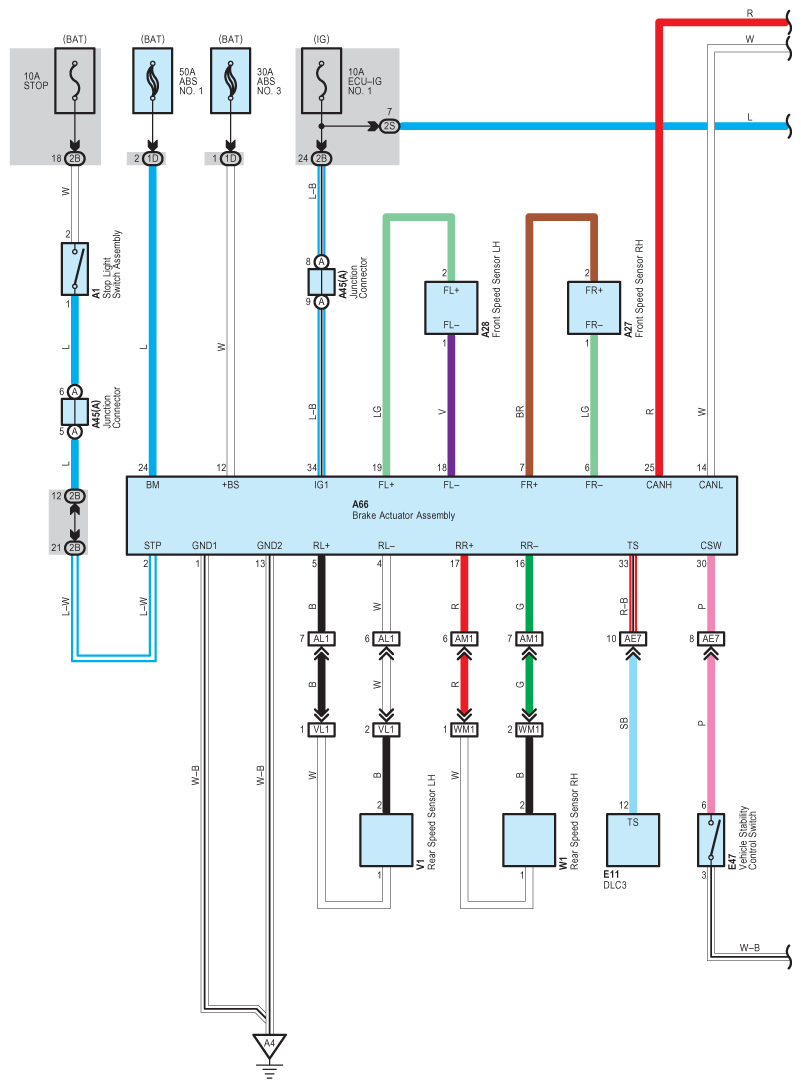

Fig 1: ABS, TRAC And VSC System Wiring Diagram (TMC Made; 1 Of 4)
G09106478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

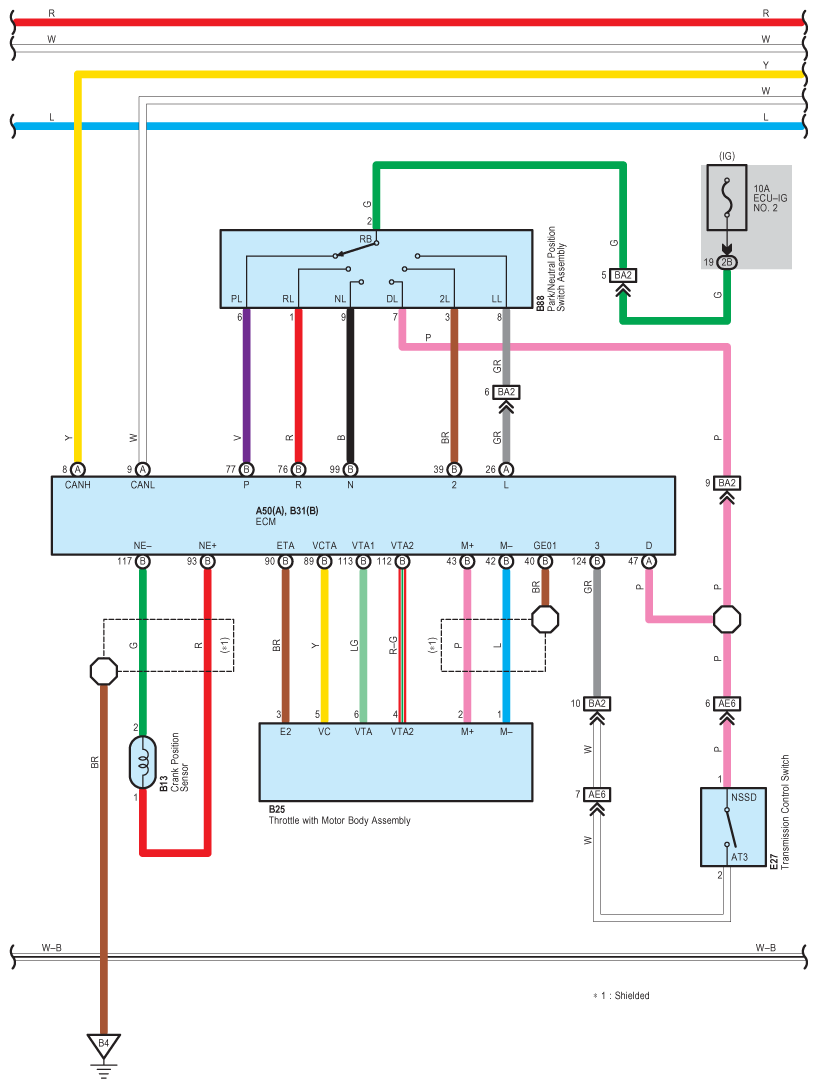

Fig 2: ABS, TRAC And VSC System Wiring Diagram (TMC Made; 2 Of 4)
G09106479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

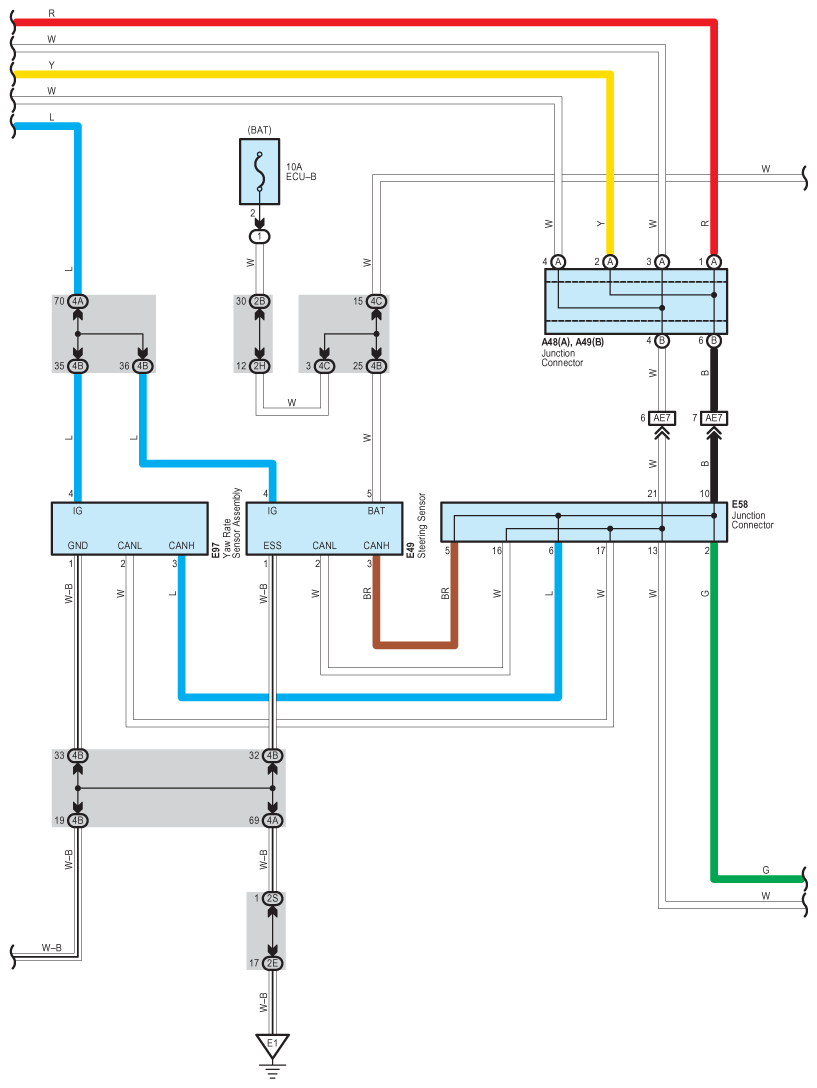

Fig 3: ABS, TRAC And VSC System Wiring Diagram (TMC Made; 3 Of 4)
G09106480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

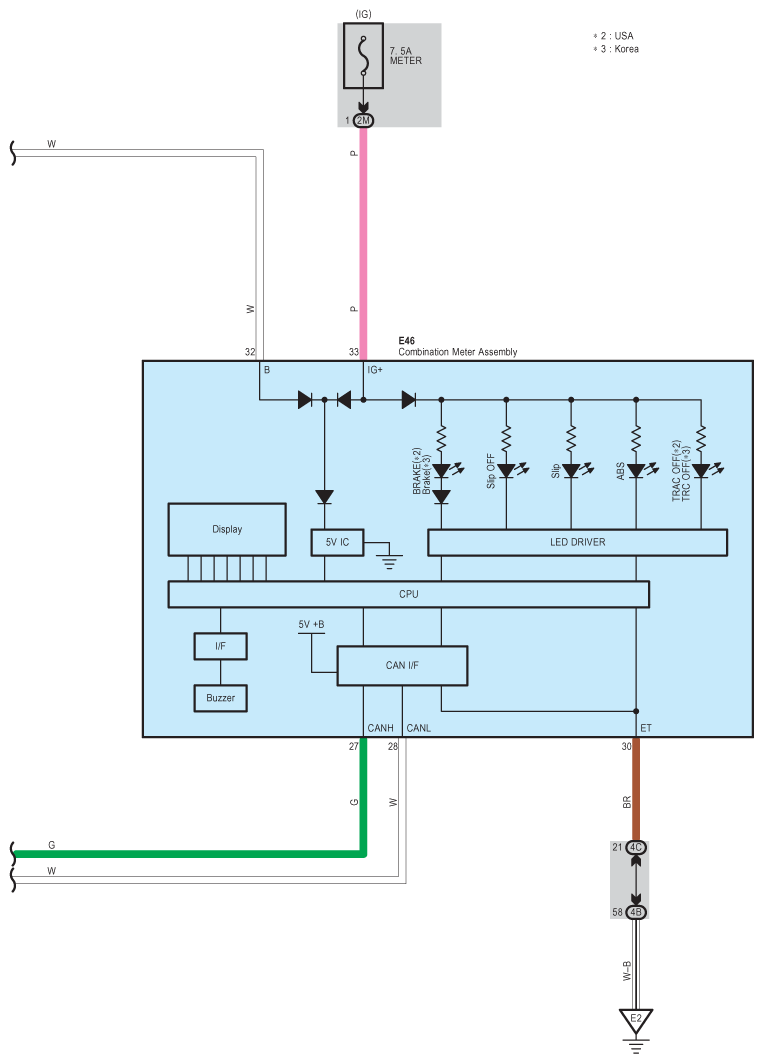

Fig 4: ABS, TRAC And VSC System Wiring Diagram (TMC Made; 4 Of 4)
G09106481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
