System Diagram

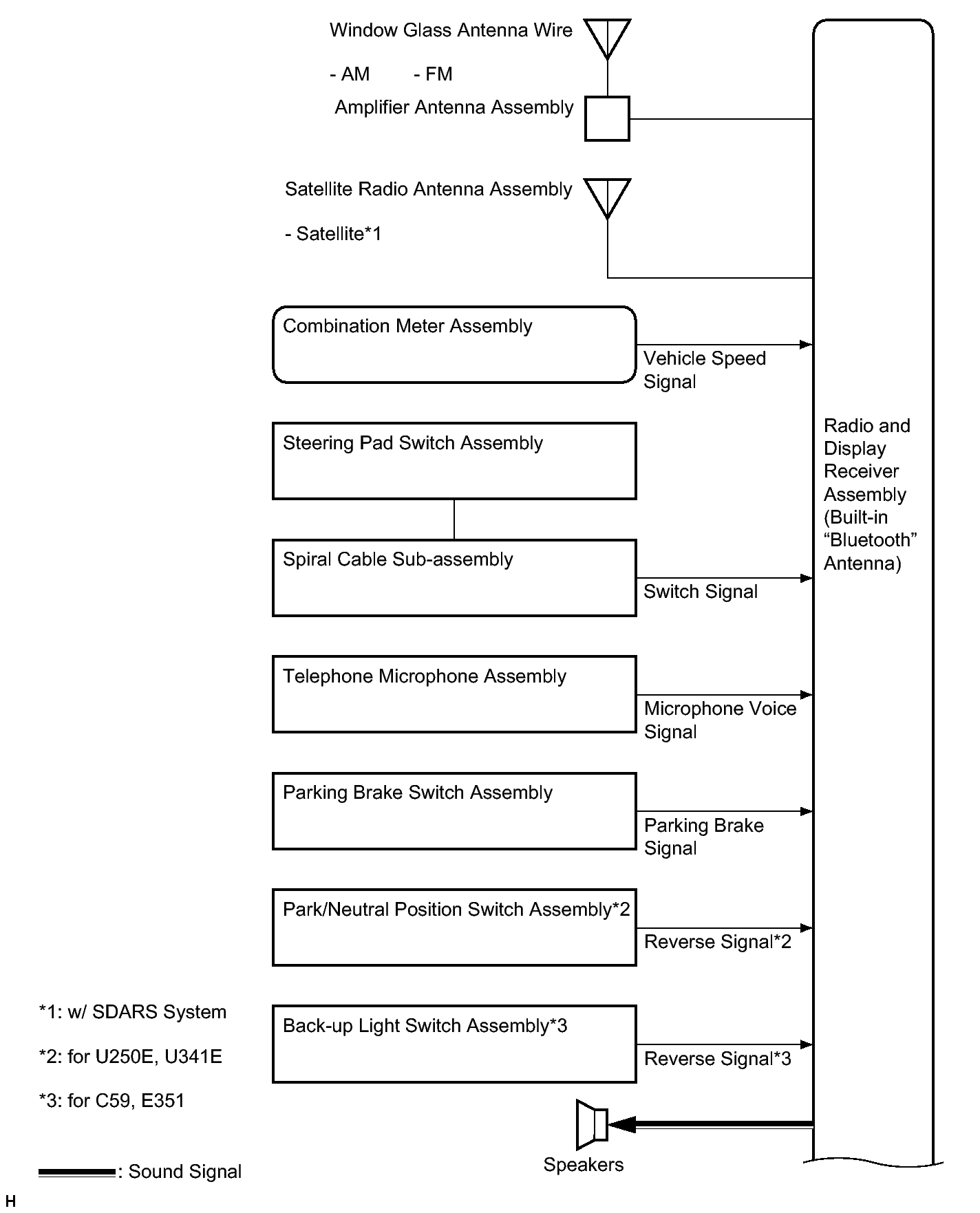

Fig 1: Navigation System System Diagram (1 Of 2)
GTY314933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

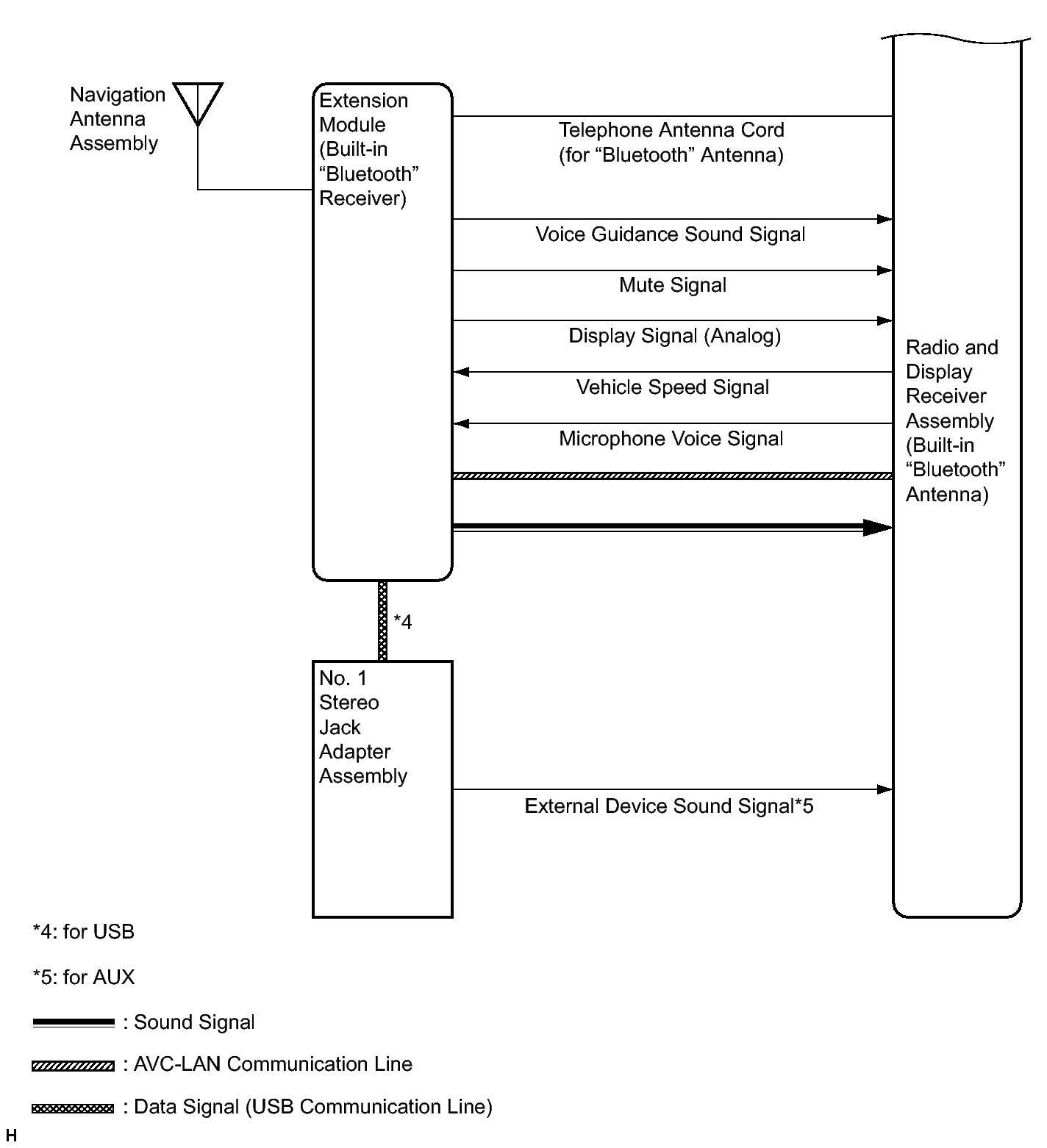

Fig 2: Navigation System System Diagram (2 Of 2)
GTY321060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
