VACUUM SWITCHING VALVE (for Engine Mounting): Components: Illustration

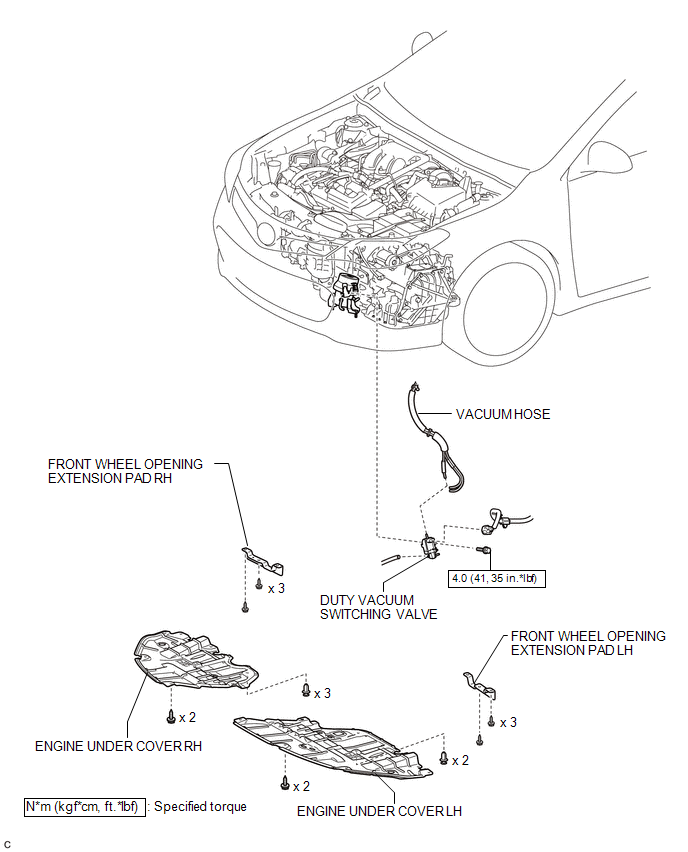

Fig 1: Identifying Vacuum Switching Valve (For Engine Mounting) Replacement Components With Torque Specifications
GTY373978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
