System Diagram

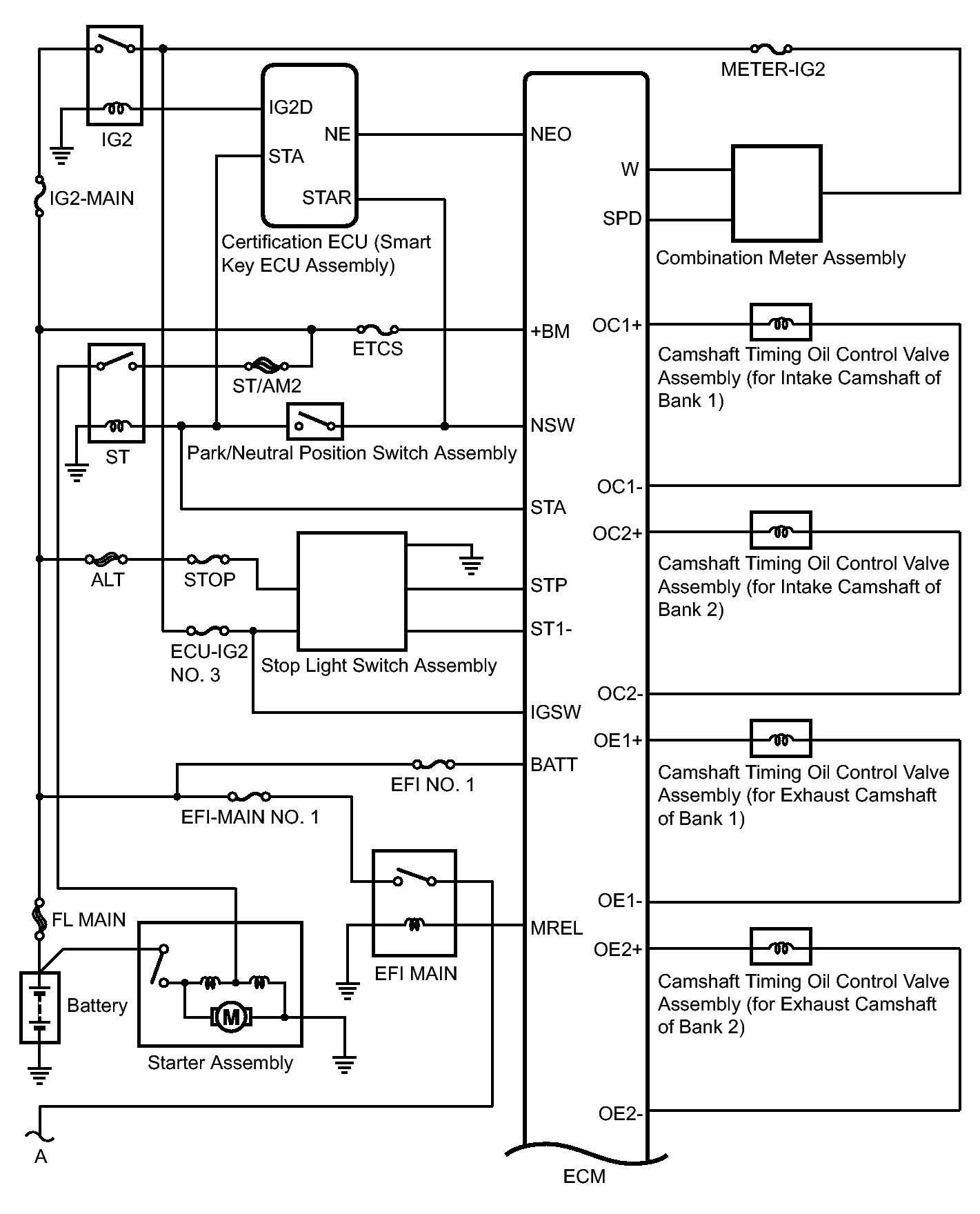

Fig 1: Engine Control System Diagram (1 Of 5)
GTY365395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

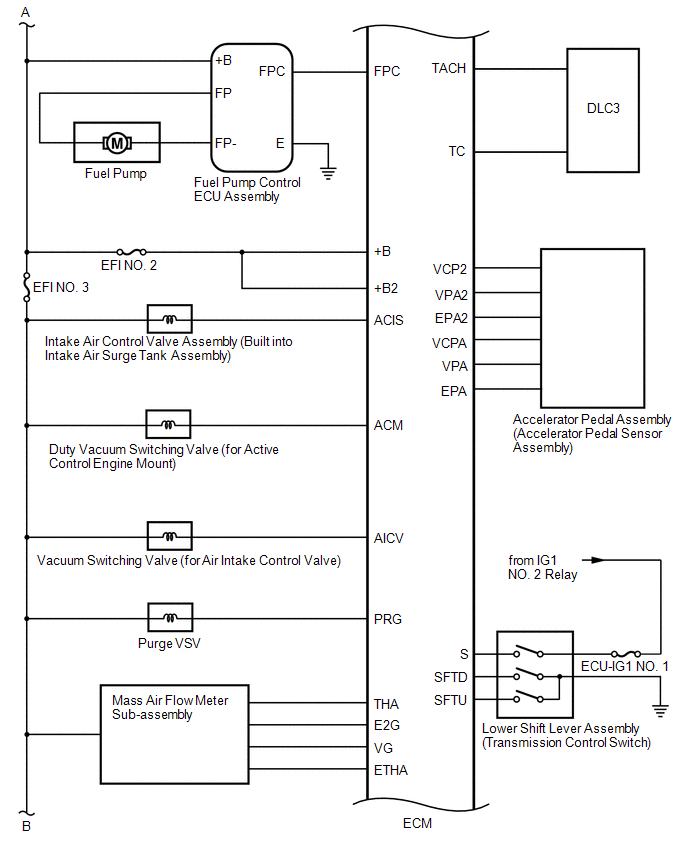

Fig 2: Engine Control System Diagram (2 Of 5)
GTY375508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

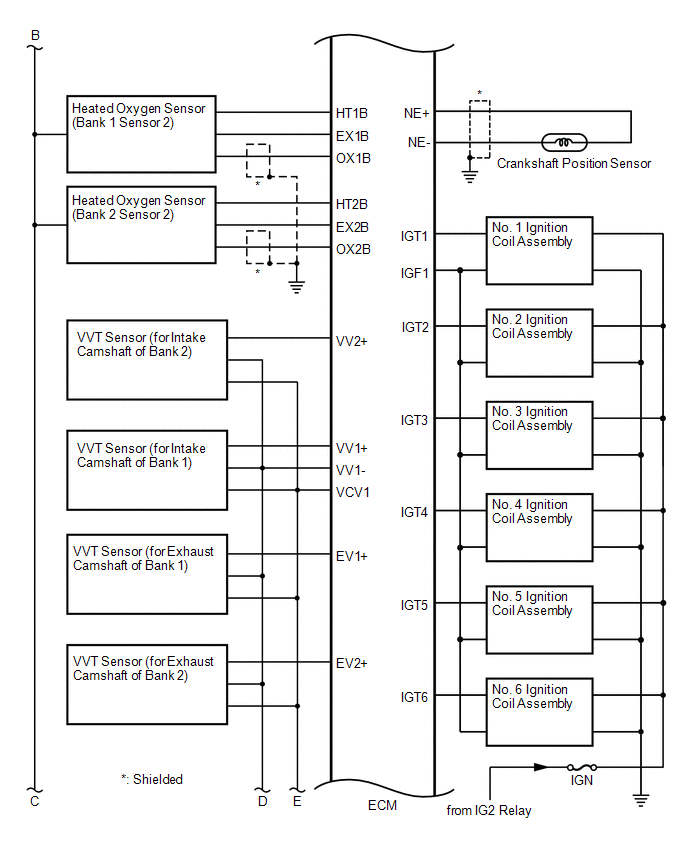

Fig 3: Engine Control System Diagram (3 Of 5)
GTY368510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

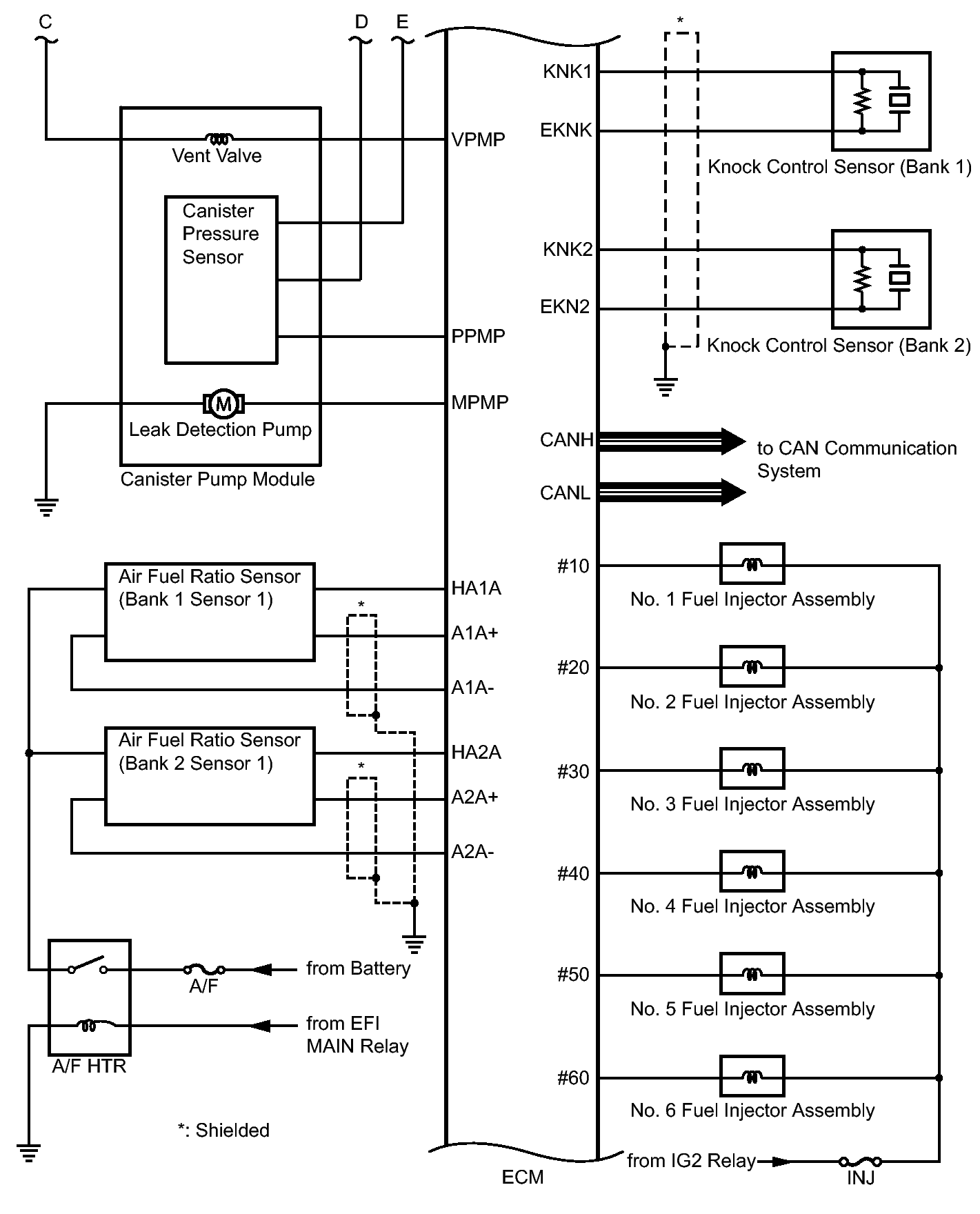

Fig 4: Engine Control System Diagram (4 Of 5)
GTY365974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

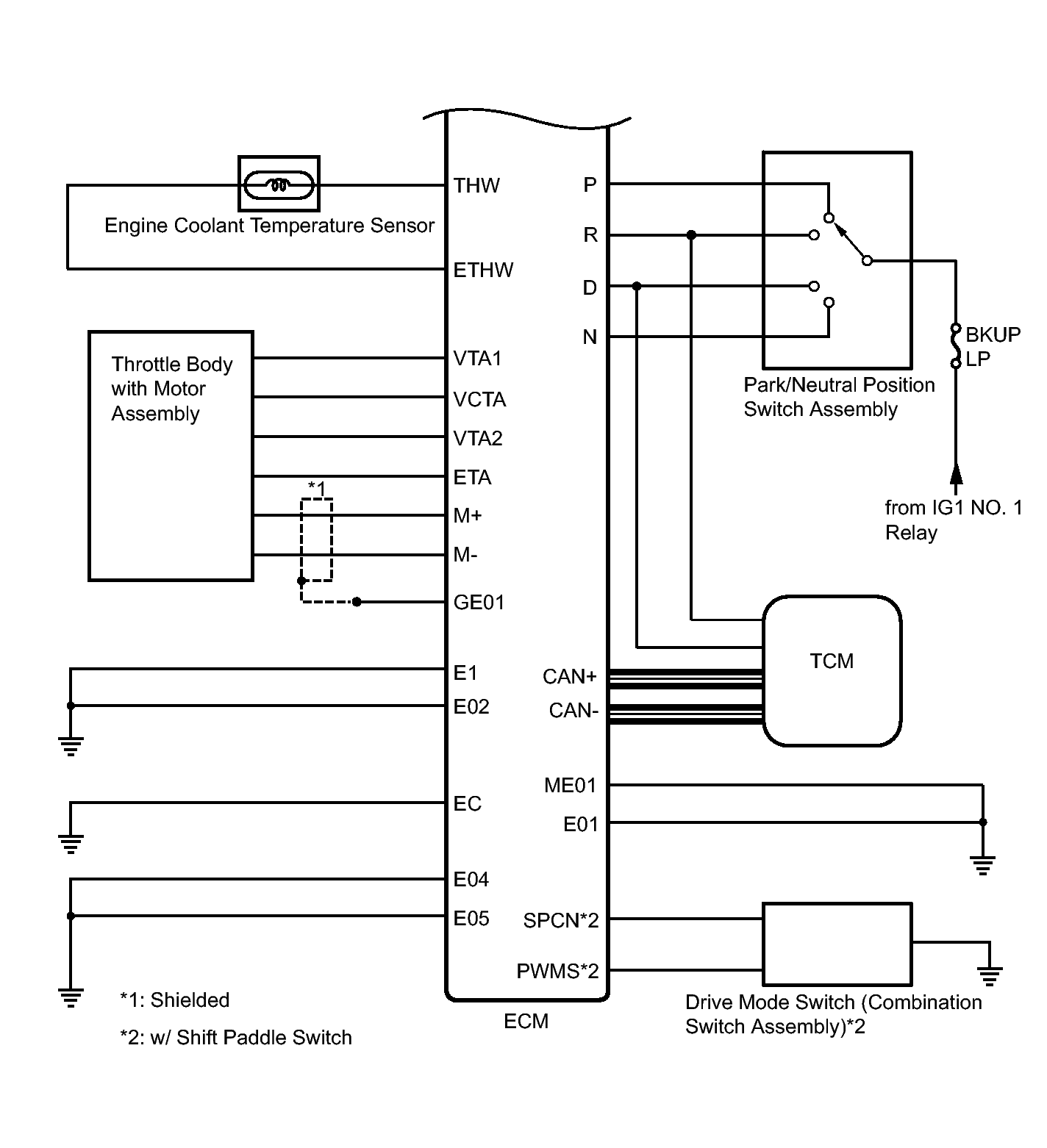

Fig 5: Engine Control System Diagram (5 Of 5)
GTY369240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
