System Diagram

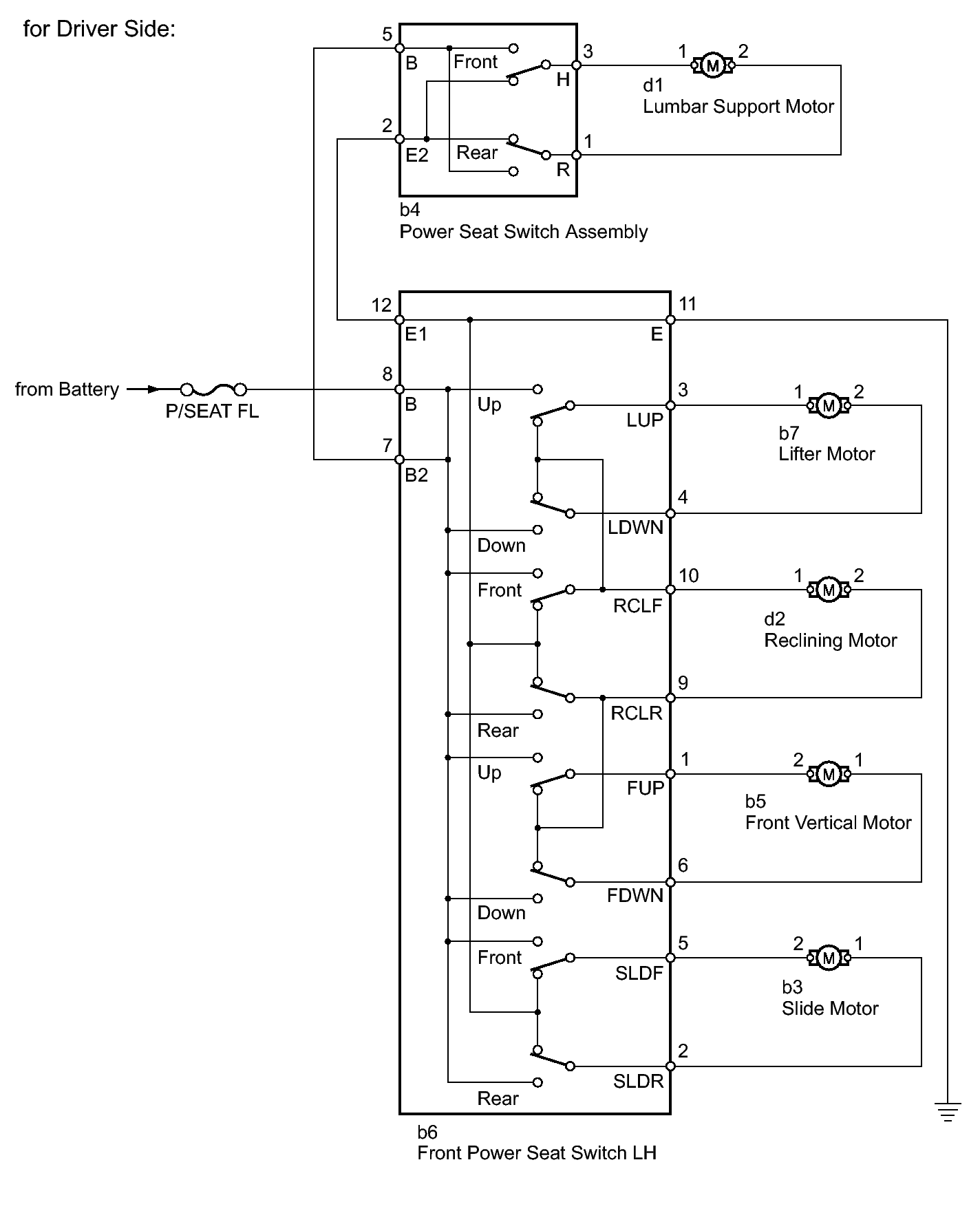

Fig 1: Identifying Front Power Seat Control System Circuit Diagram (Driver's Side)
GTY218077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

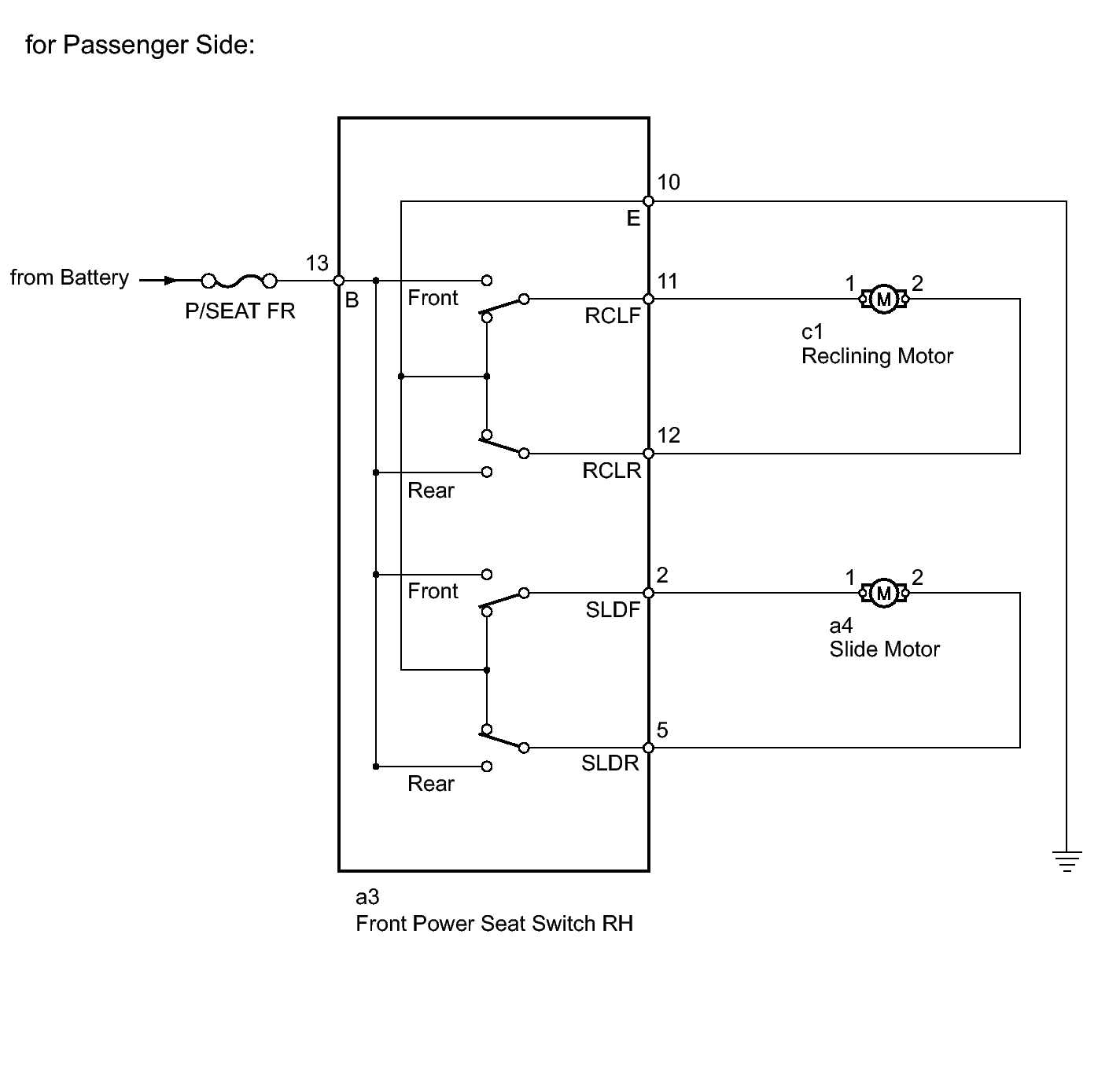

Fig 2: Identifying Front Power Seat Control System Circuit Diagram (Passenger's Side)
GTY211923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
