System Diagram

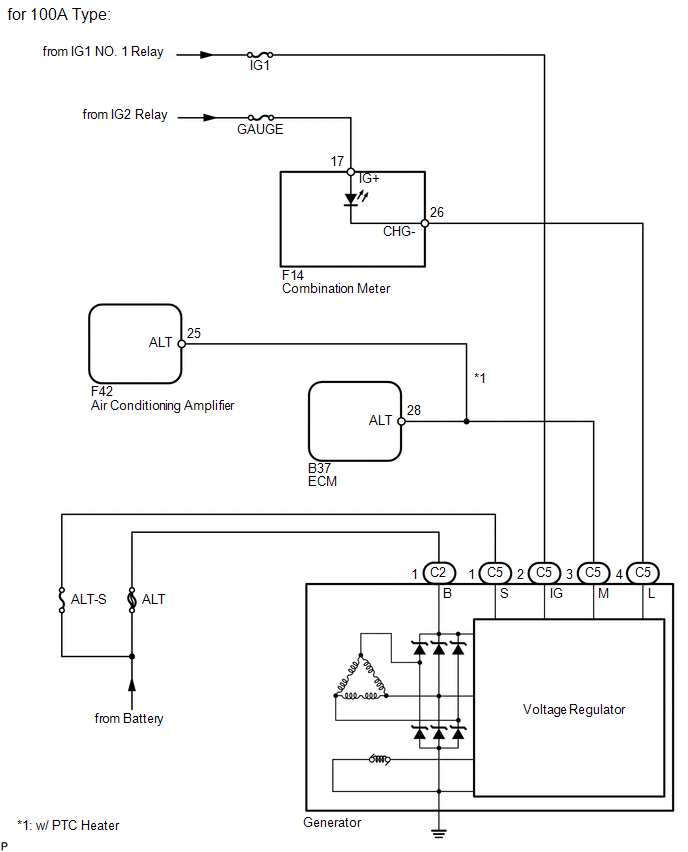

Fig 1: Identifying Charging System Circuit Diagram For 100A Type
GTY219754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

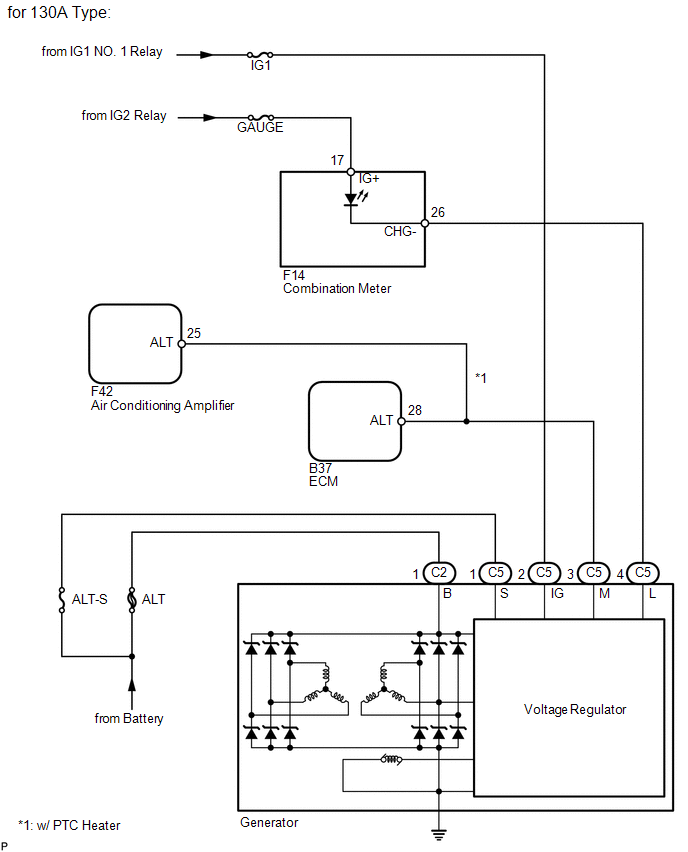

Fig 2: Identifying Charging System Circuit Diagram For 130A Type
GTY222090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
