System Diagram

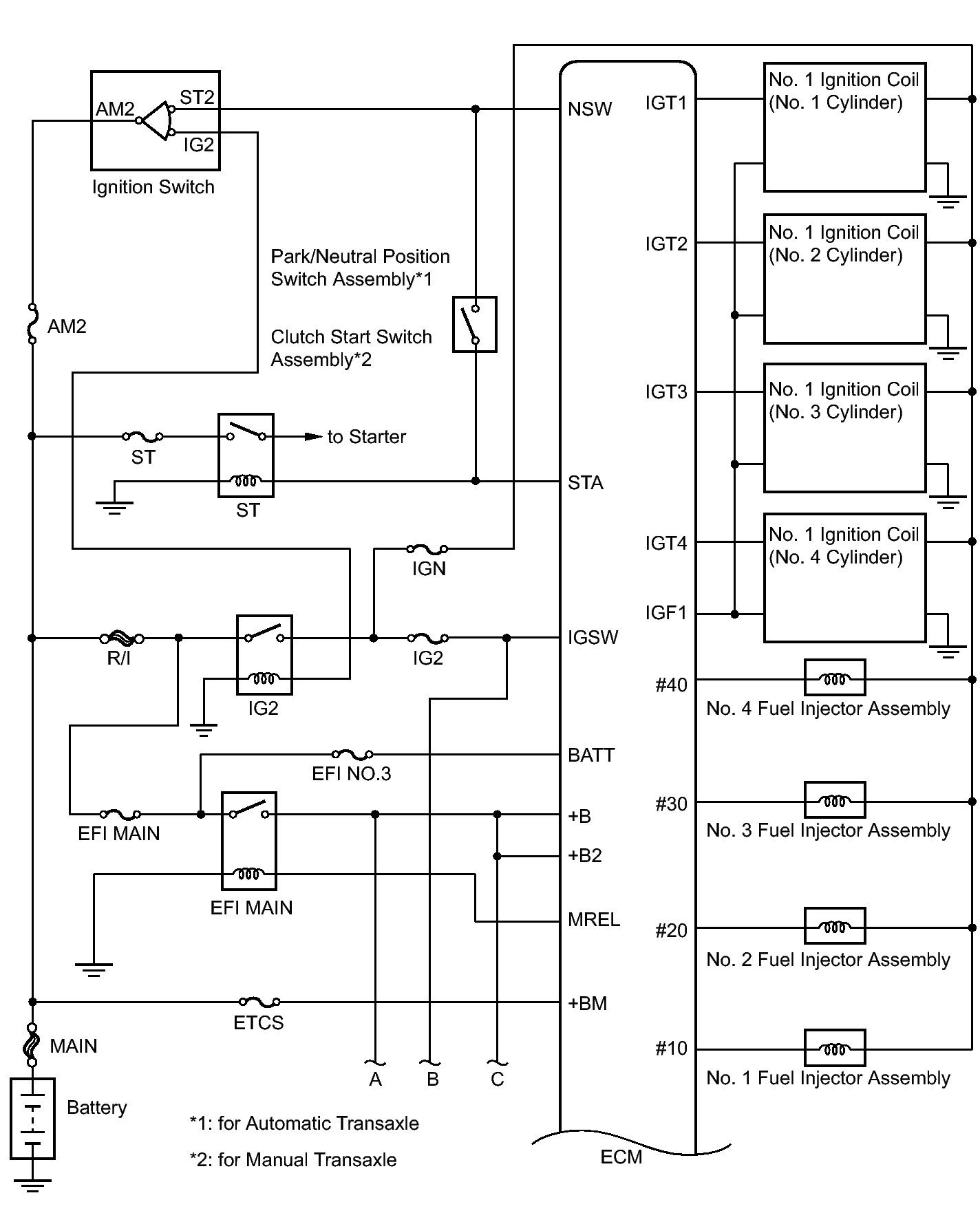

Fig 1: Engine Control System Wiring Diagram (1 Of 3)
GTY339593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

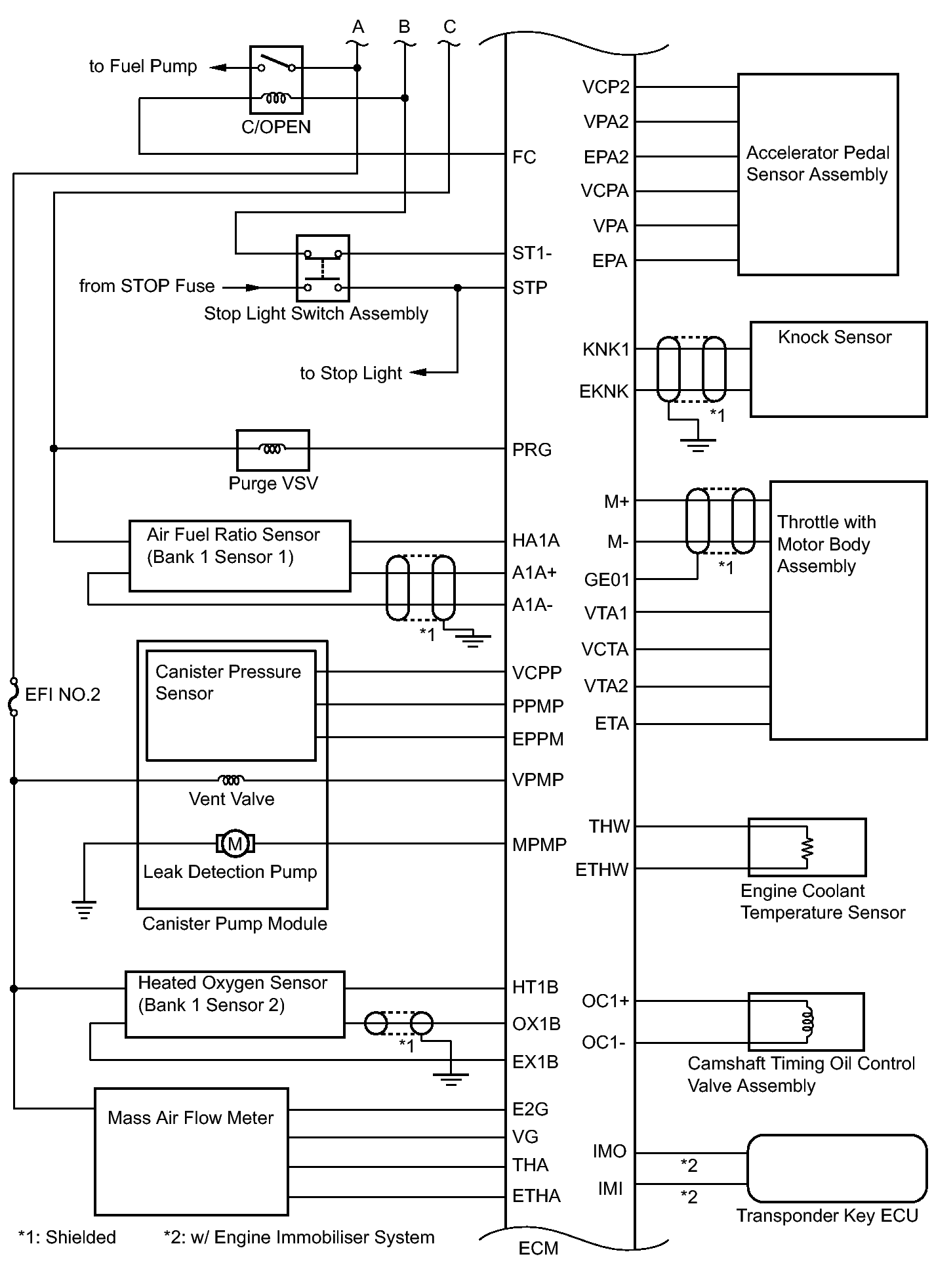

Fig 2: Engine Control System Wiring Diagram (2 Of 3)
GTY336227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

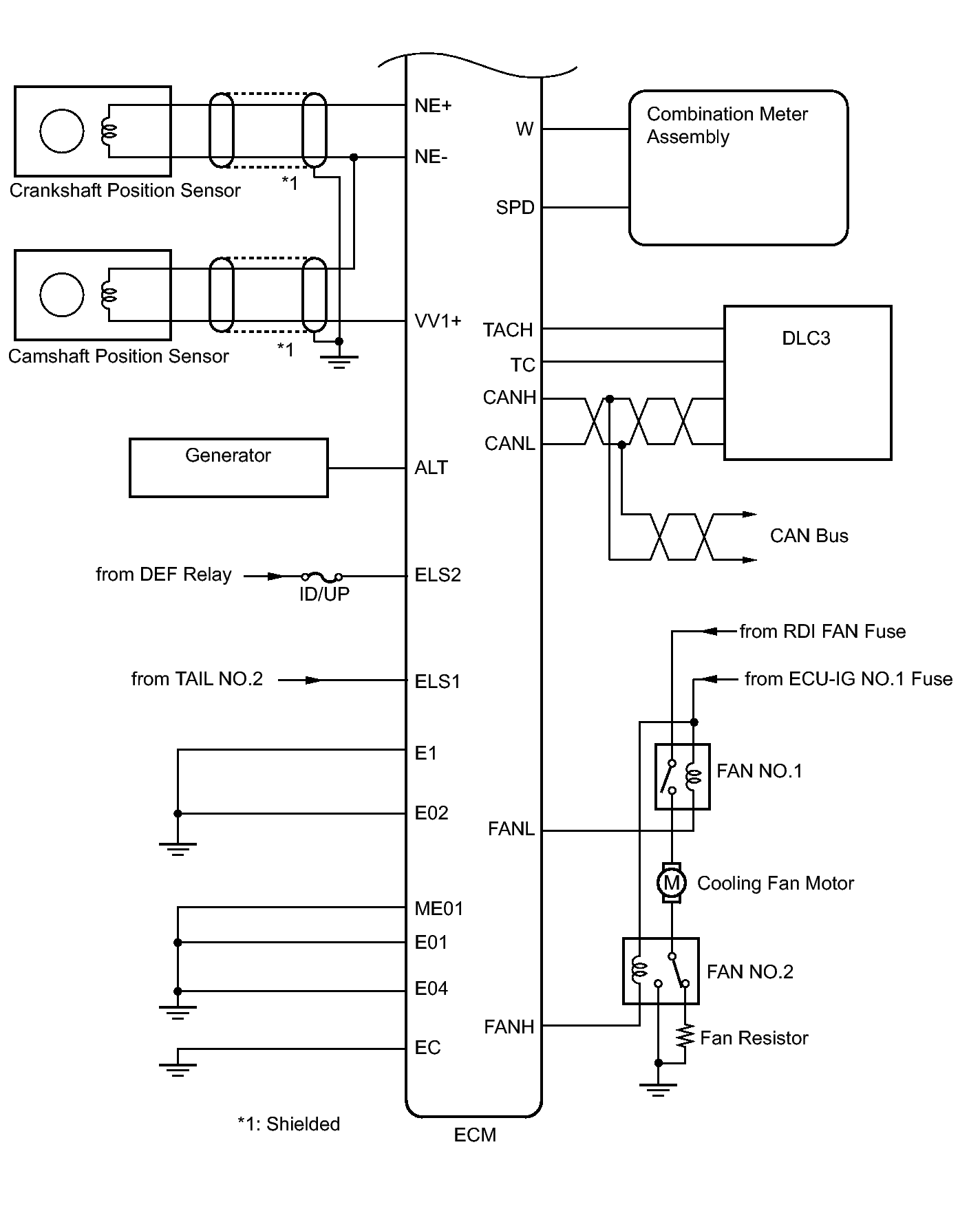

Fig 3: Engine Control System Wiring Diagram (3 Of 3)
GTY338960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
