SPIRAL CABLE (for Hatchback): Inspection: Inspection
- INSPECT SPIRAL CABLE SUB-ASSEMBLY NOTE:
- Do not remove the steering sensor from the spiral cable sub-assembly (w/ VSC).
- If there is a malfunction in the steering sensor, replace the spiral cable sub-assembly with steering sensor (w/ VSC).
- If there are any defects as mentioned below, replace the spiral cable sub-assembly with a new one:
- Scratches, cracks, dents or chips on the connector or the spiral cable sub-assembly.

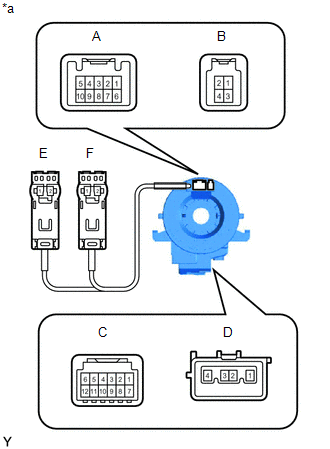

- Inspect the spiral cable sub-assembly.TEXT IN ILLUSTRATION
*a Component without harness connected
(Spiral Cable Sub-assembly)- Measure the resistance according to the value(s) in the table below.NOTE:
To avoid breaking the spiral cable sub-assembly, do not turn the spiral cable sub-assembly more than necessary.
Standard Resistance
Tester Connection Condition Specified Condition A-1 - C8
(HO)Center Below 1 Ω 2.5 rotations to the left 2.5 rotations to the right A-8 - C-4
(EAU)Center Below 1 Ω 2.5 rotations to the left 2.5 rotations to the right A-9 - C-5
(AU2)Center Below 1 Ω 2.5 rotations to the left 2.5 rotations to the right A-10 - C-6
(AU1)Center Below 1 Ω 2.5 rotations to the left 2.5 rotations to the right B-3 - C-1
(CCS)Center Below 1 Ω 2.5 rotations to the left 2.5 rotations to the right B-4 - C-2
(ECC)Center Below 1 Ω 2.5 rotations to the left 2.5 rotations to the right D-1 - E-2
(D+)Center Below 1 Ω 2.5 rotations to the left 2.5 rotations to the right D-2 - E-1
(D-)Center Below 1 Ω 2.5 rotations to the left 2.5 rotations to the right D-3 - F-1
(D2+)Center Below 1 Ω 2.5 rotations to the left 2.5 rotations to the right D-4 - F-2
(D2-)Center Below 1 Ω 2.5 rotations to the left 2.5 rotations to the right If the value is not within the specified range, replace the spiral cable sub-assembly.
- Measure the resistance according to the value(s) in the table below.
