SPIRAL CABLE (for Hatchback): Components: Illustration

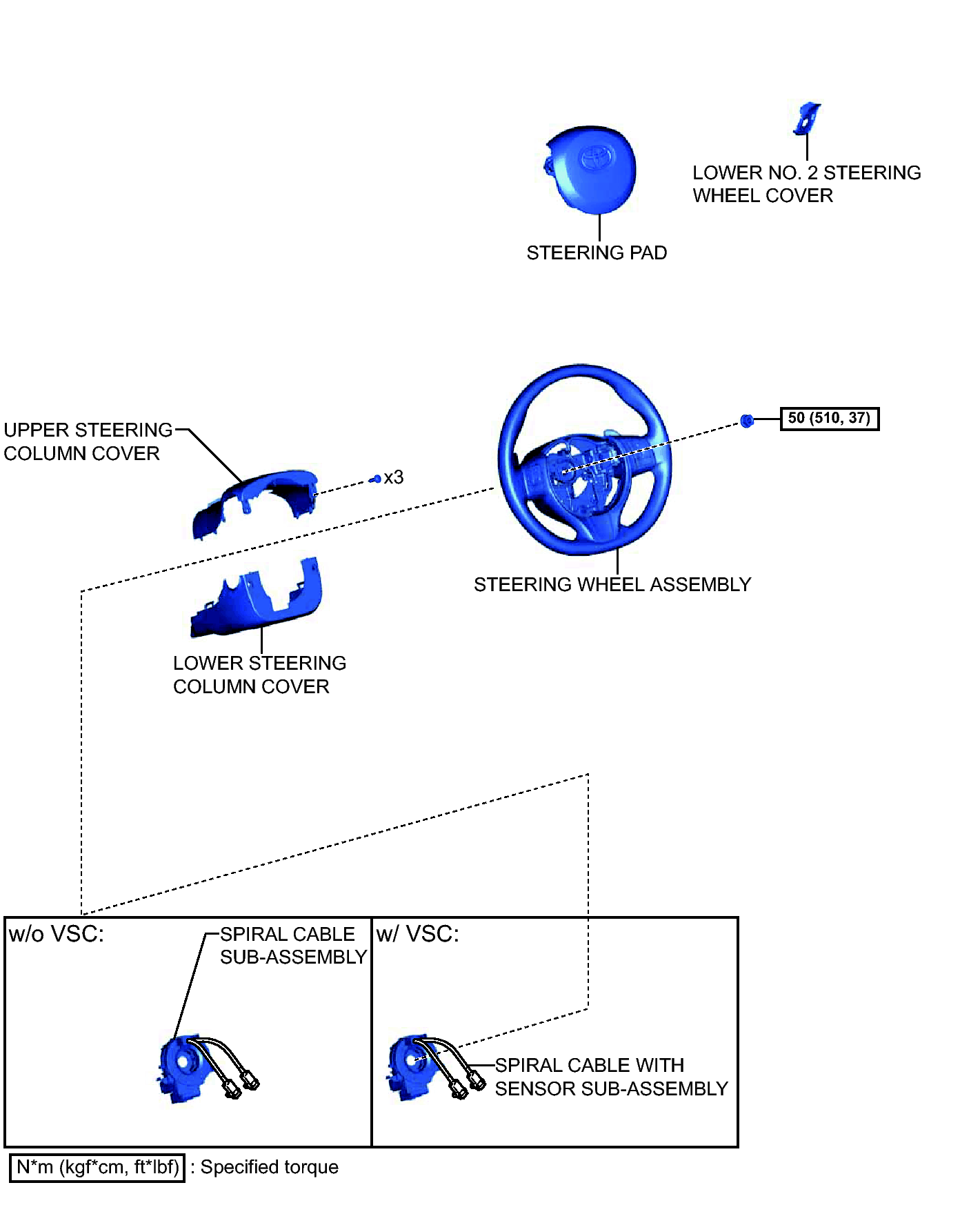

Fig 1: Identifying Spiral Cable Replacement Components With Torque Specifications (For Hatchback)

GTY331623

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
