Shift Lock: Notes

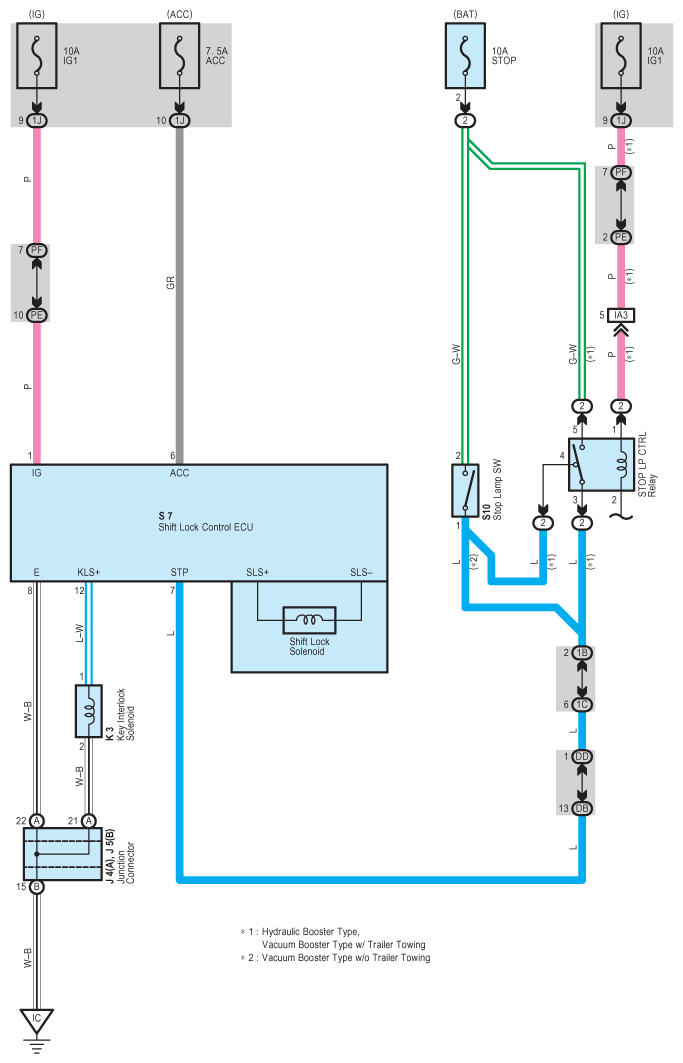

Fig 1: Shift Lock Wiring Diagram

G08847258

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
