Remote Up / Down Function does not Operate: Wiring Diagram

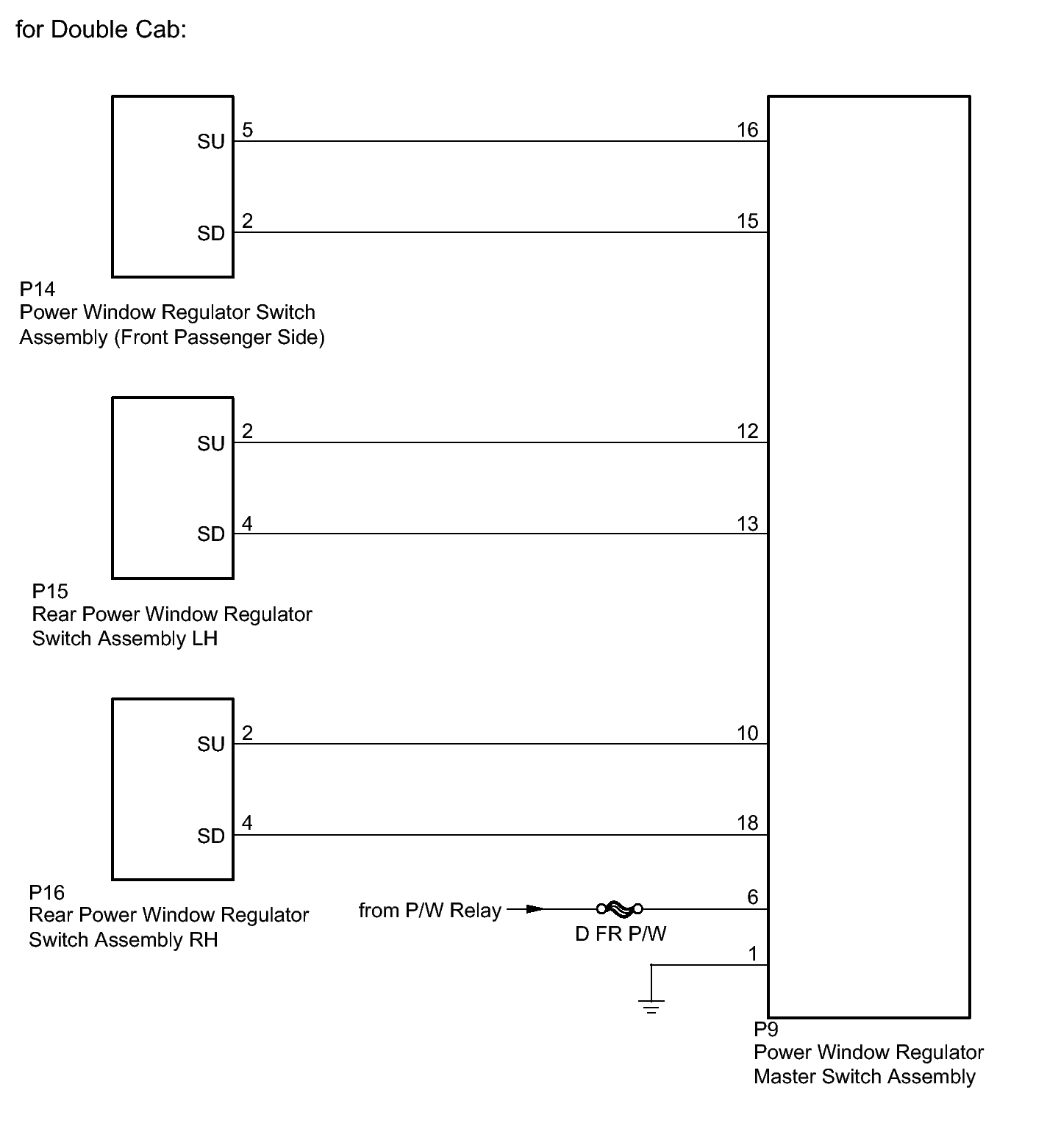

Fig 1: Power Window Control System Wiring Diagram (Double Cab)
GTY325975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Power Window Control System Wiring Diagram (Access Cab)
GTY336375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
