SMART KEY SYSTEM (for Start Function)
>>
Parts Location
>>
Illustration
Parts Location: Illustration

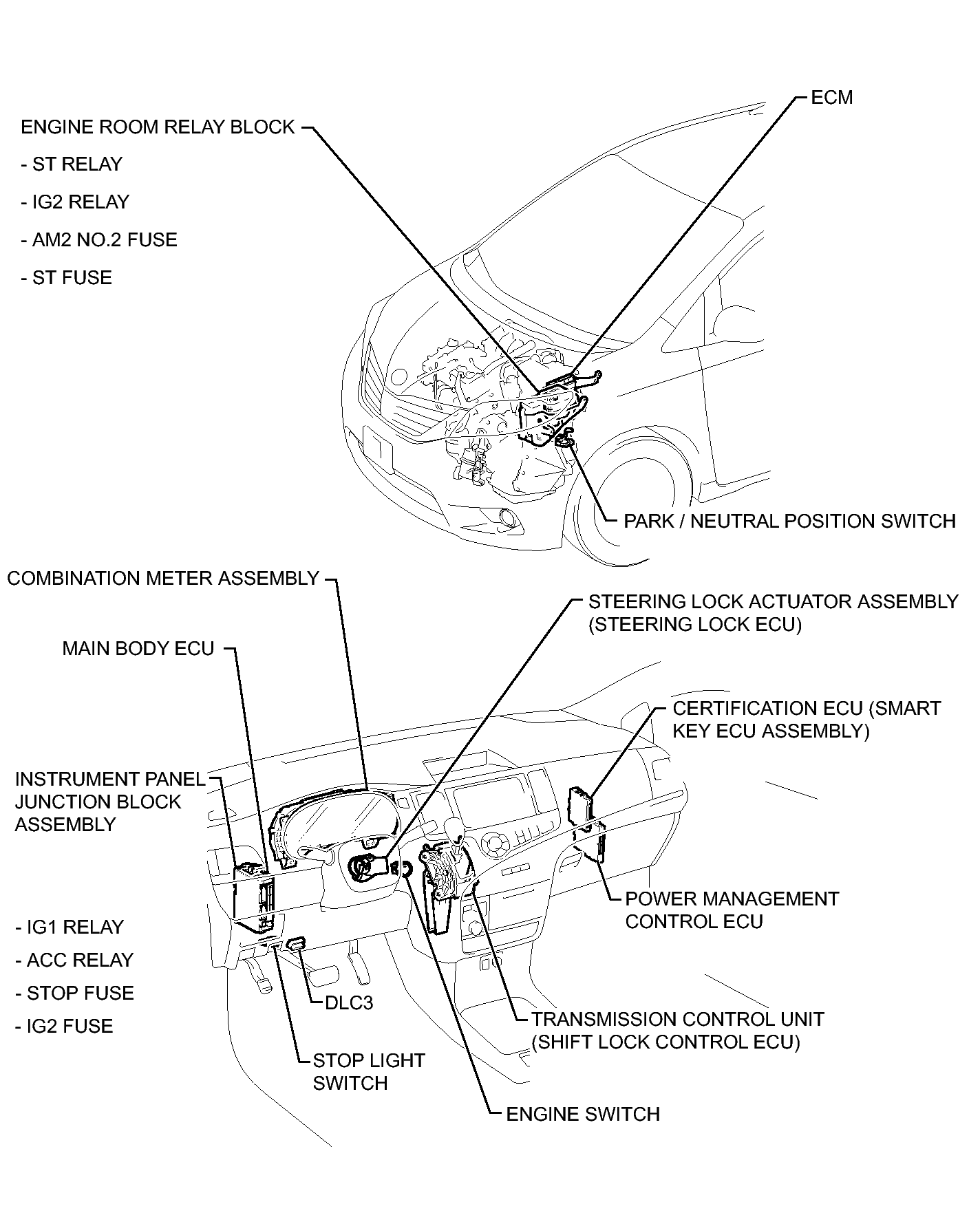

Fig 1: Smart Key System (For Start Function) Components Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
