DTC P0403: Exhaust Gas Recirculation Control Circuit: Wiring Diagram

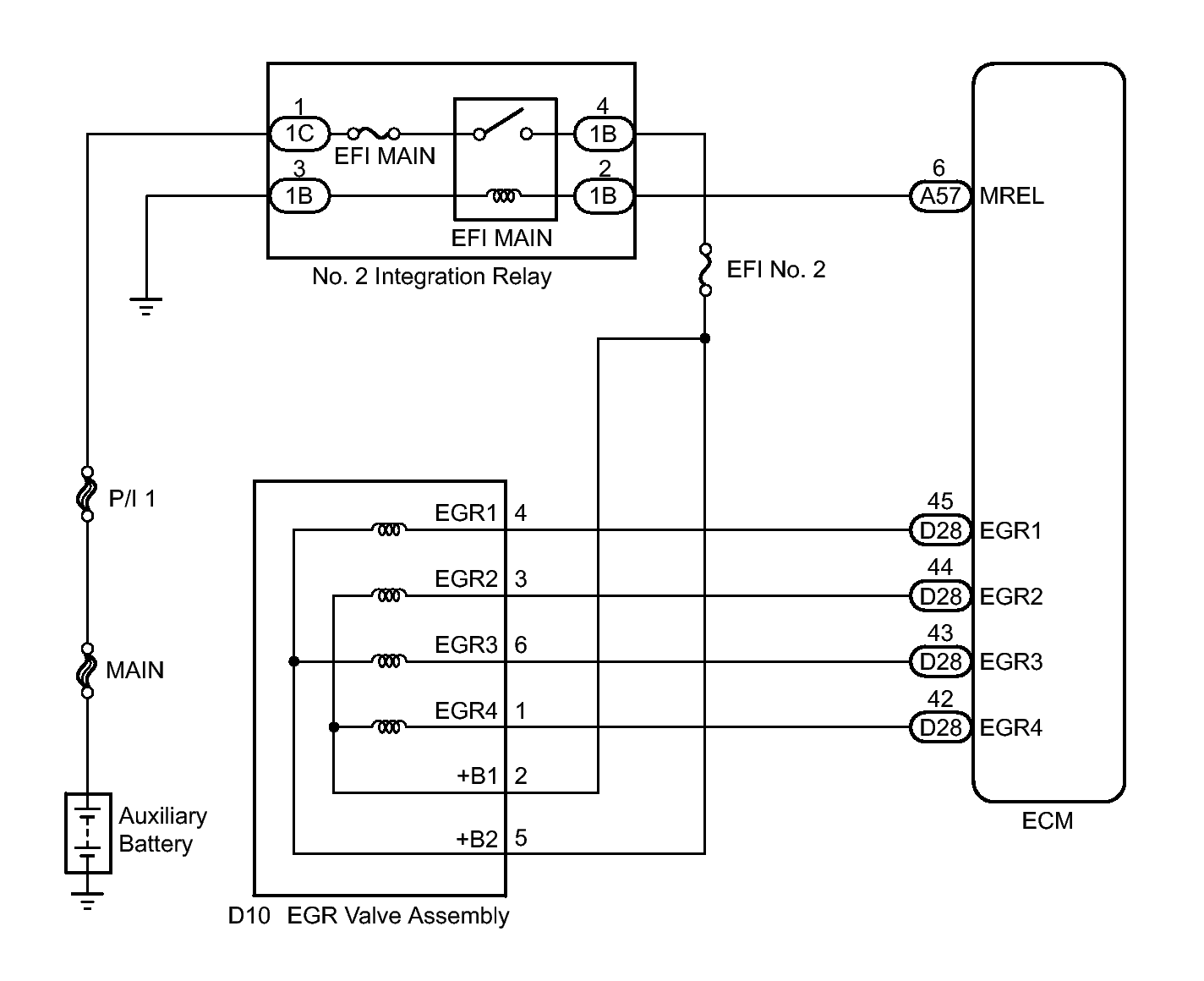

Fig 1: EGR Valve Assembly Circuit Diagram

GTY331725

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
