Turn Signal Flasher Assembly: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL TURN SIGNAL FLASHER ASSEMBLY
    1. Connect the connector.

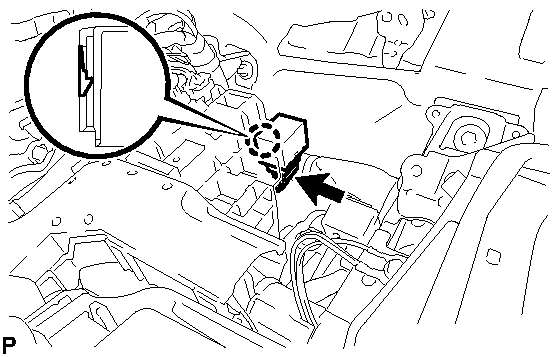

      Fig 1: Identifying Turn Signal Flasher Assembly Claw & Connector
      GTY213360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the claw to install the turn signal flasher assembly.
  2. INSTALL NO. 3 SIDE DEFROSTER NOZZLE DUCT  . Refer to INSTALLATION - Step 12
  3. INSTALL HEADUP DISPLAY (w/ Headup Display)  . Refer to INSTALLATION - Step 1
  4. INSTALL UPPER INSTRUMENT PANEL ASSEMBLY

    Refer to INSTALLATION
