Headlight Assembly: Reassembly: Reassembly

WARNING: This page is about a different variant/trim than selected.

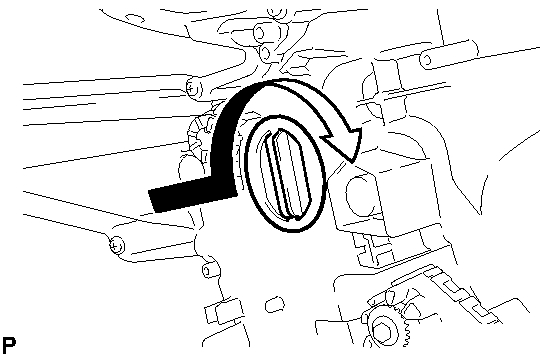

INSTALL COVER RING (for LED Headlight)
1. Turn the cover ring in the direction indicated by the arrow shown in the illustration to install it.

  Fig 1: Turning Cover Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEADLIGHT GASKET (for LED Headlight)
1. Install a new headlight gasket.
INSTALL HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY (for LED Headlight)
1. Connect the connector.

  Fig 2: Identifying Headlight Control ECU Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the headlight light control ECU sub-assembly with the 4 screws.

  Fig 3: Identifying Headlight Light Control ECU Sub-Assembly (For Led Headlight)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEADLIGHT CORD (for Halogen Headlight)
1. Engage the 2 clamps and install the headlight cord.

  Fig 4: Identifying Headlight Cord & Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

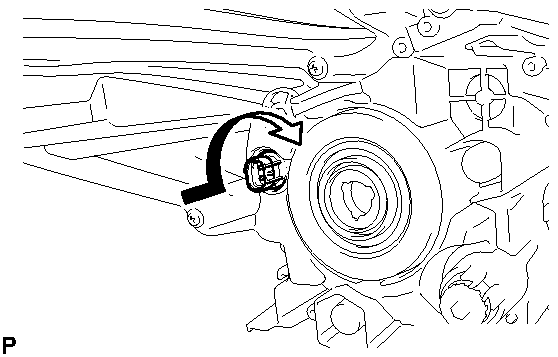

INSTALL CLEARANCE LIGHT BULB (for Halogen Headlight)
1. Install the clearance light bulb to the headlight cord.
2. Turn the headlight cord with the clearance light bulb in the direction indicated by the arrow shown in the illustration and connect them as a unit.

  Fig 5: Installing Clearance Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

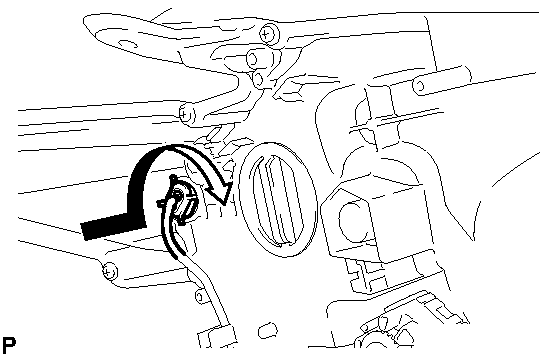

INSTALL FRONT SIDE MARKER LIGHT BULB (for Halogen Headlight)
1. Install the front side marker light bulb to the front side marker light socket.
2. Turn the front side marker light socket with the front side marker light bulb in the direction indicated by the arrow shown in the illustration and install them as a unit.

  Fig 6: Installing Front Side Marker Light Bulb (For Halogen Headlight)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SIDE MARKER LIGHT BULB (for LED Headlight)
1. Install the front side marker light bulb to the socket.
2. Turn the socket with the front side marker light bulb in the direction indicated by the arrow shown in the illustration and connect them as a unit.

  Fig 7: Installing Front Side Marker Light Bulb (For LED Headlight)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

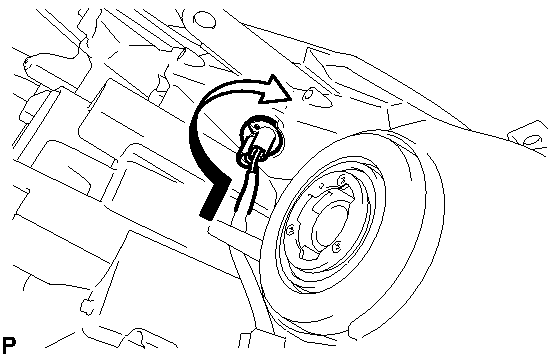

INSTALL NO. 2 HEADLIGHT BULB (for Halogen Headlight)
1. Turn the No. 2 headlight bulb in the direction indicated by the arrow shown in the illustration to install it.

  Fig 8: Installing No. 2 Headlight Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Do not touch the bulb glass.
  - Correctly align the 3 tabs on the bulb when installing it to the headlight assembly.

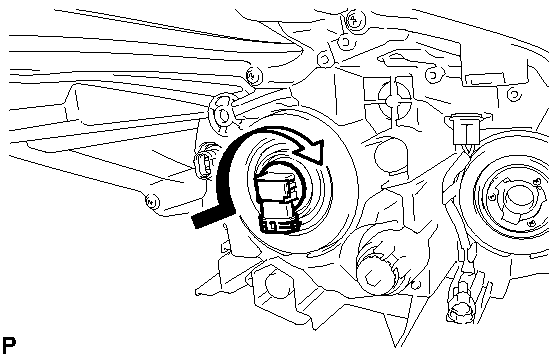

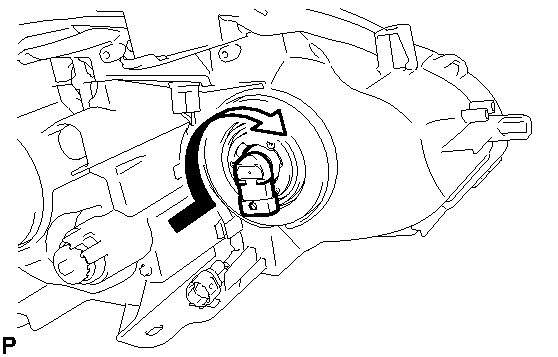

INSTALL NO. 1 HEADLIGHT BULB
1. Turn the No. 1 headlight bulb in the direction indicated by the arrow shown in the illustration to install it.

  Fig 9: Installing No. 1 Headlight Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not touch the bulb glass.
