Headlight Assembly: Disassembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

REMOVE NO. 1 HEADLIGHT BULB
1. Turn the No. 1 headlight bulb in the direction indicated by the arrow shown in the illustration, and remove it.

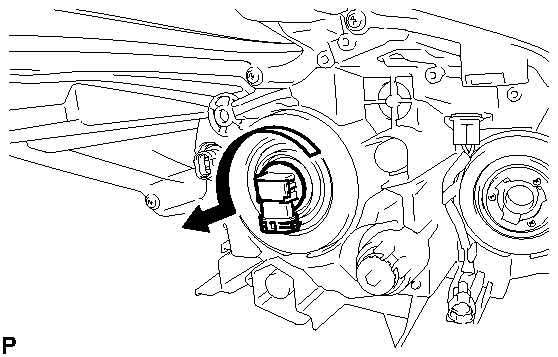

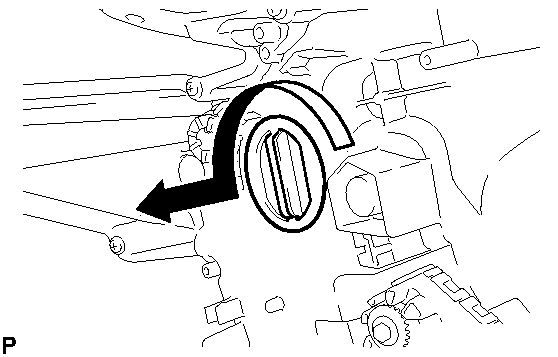

  Fig 1: Removing No. 1 Headlight Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not touch the bulb glass.
REMOVE NO. 2 HEADLIGHT BULB (for Halogen Headlight)
1. Turn the No. 2 headlight bulb in the direction indicated by the arrow shown in the illustration, and remove it.

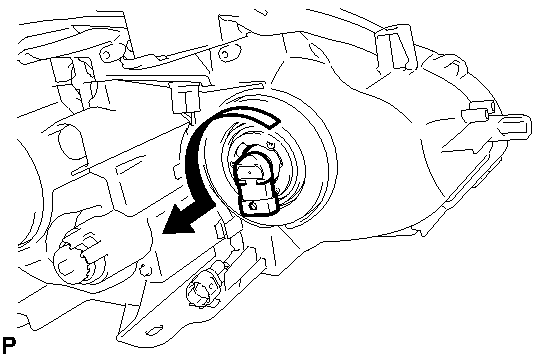

  Fig 2: Removing No. 2 Headlight Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not touch the bulb glass.
REMOVE FRONT SIDE MARKER LIGHT BULB (for Halogen Headlight)
1. Turn the front side marker light socket with the front side marker light bulb in the direction indicated by the arrow shown in the illustration, and remove them as a unit.

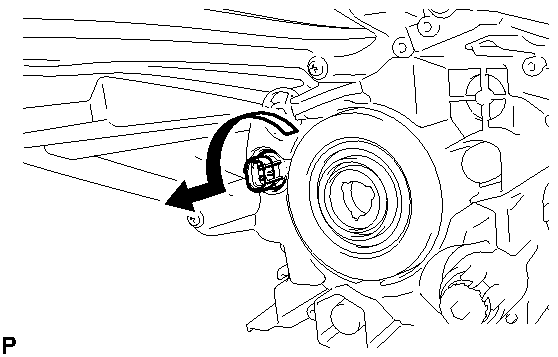

  Fig 3: Removing Front Side Marker Light Bulb (For Halogen Headlight)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the front side marker light bulb from the front side marker light socket.
REMOVE FRONT SIDE MARKER LIGHT BULB (for LED Headlight)
1. Turn the socket with the front side marker light bulb in the direction indicated by the arrow shown in the illustration, and disconnect them as a unit.

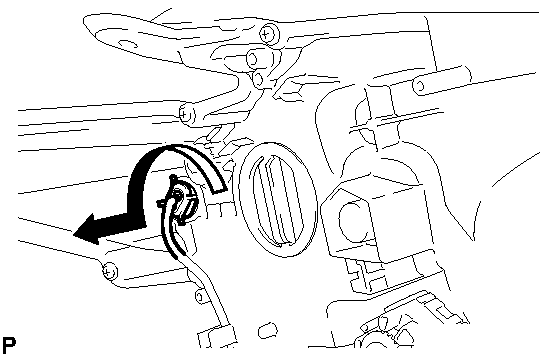

  Fig 4: Removing Front Side Marker Light Bulb (For LED Headlight)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the front side marker light bulb from the socket.
REMOVE CLEARANCE LIGHT BULB (for Halogen Headlight)
1. Turn the headlight cord with the clearance light bulb in the direction indicated by the arrow shown in the illustration, and disconnect them as a unit.

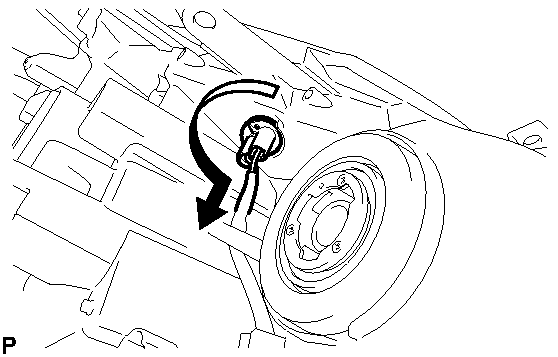

  Fig 5: Removing Clearance Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the clearance light bulb from the headlight cord.
REMOVE HEADLIGHT CORD (for Halogen Headlight)
1. Disengage the 2 clamps and remove the headlight cord.

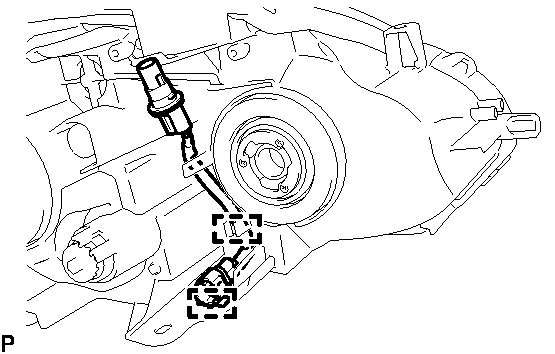

  Fig 6: Identifying Headlight Cord & Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY (for LED Headlight)
1. Remove the 4 screws and disconnect the headlight light control ECU sub-assembly.

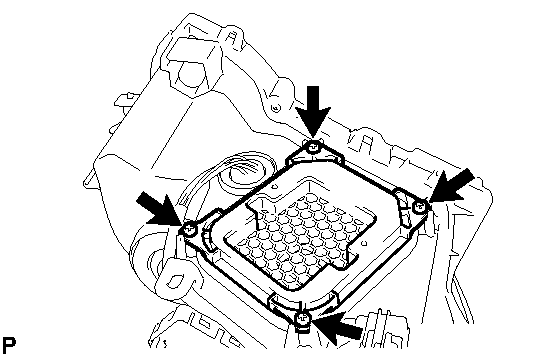

  Fig 7: Identifying Headlight Light Control ECU Sub-Assembly (For Led Headlight)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the connector and remove the headlight light control ECU sub-assembly.

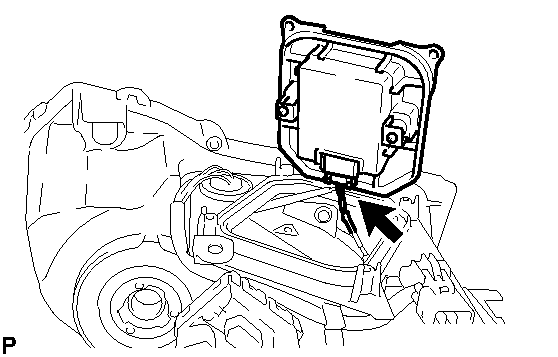

  Fig 8: Identifying Headlight Control ECU Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEADLIGHT GASKET (for LED Headlight)
1. Remove the headlight gasket.
  NOTE:
  After the headlight gasket is removed, be sure to replace it with a new one. Failure to do this may cause water ingress.
REMOVE COVER RING (for LED Headlight)
1. Turn the cover ring in the direction indicated by the arrow shown in the illustration, and remove it.

  Fig 9: Turning Cover Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
