Fog Light Assembly: Reassembly: Reassembly

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL FOG LIGHT BULB
    1. Turn the fog light bulb in the direction indicated by the arrow shown in the illustration to install it.

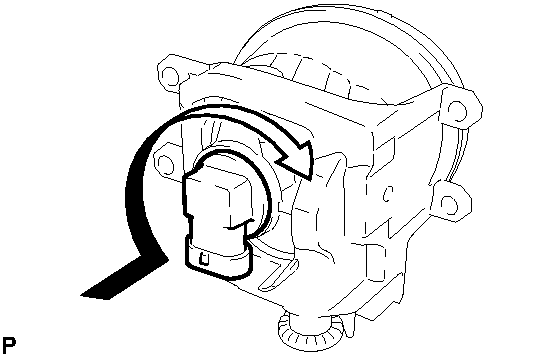

      Fig 1: Installing Fog Light Bulb
      GTY343957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the bulb glass.
