Fog Light Assembly: Disassembly: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FOG LIGHT BULB
    1. Turn the fog light bulb in the direction indicated by the arrow shown in the illustration and remove it.

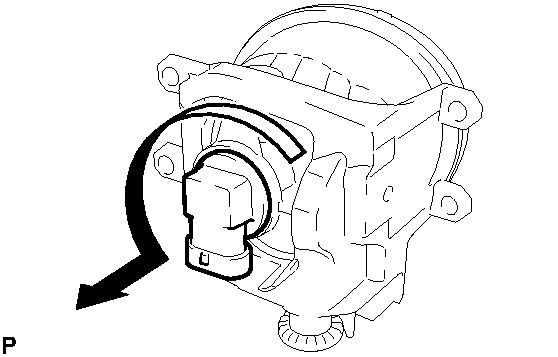

      Fig 1: Removing Fog Light Bulb
      GTY323836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the bulb glass.
