Parts Location: Illustration

WARNING: This page is about a different variant/trim than selected.

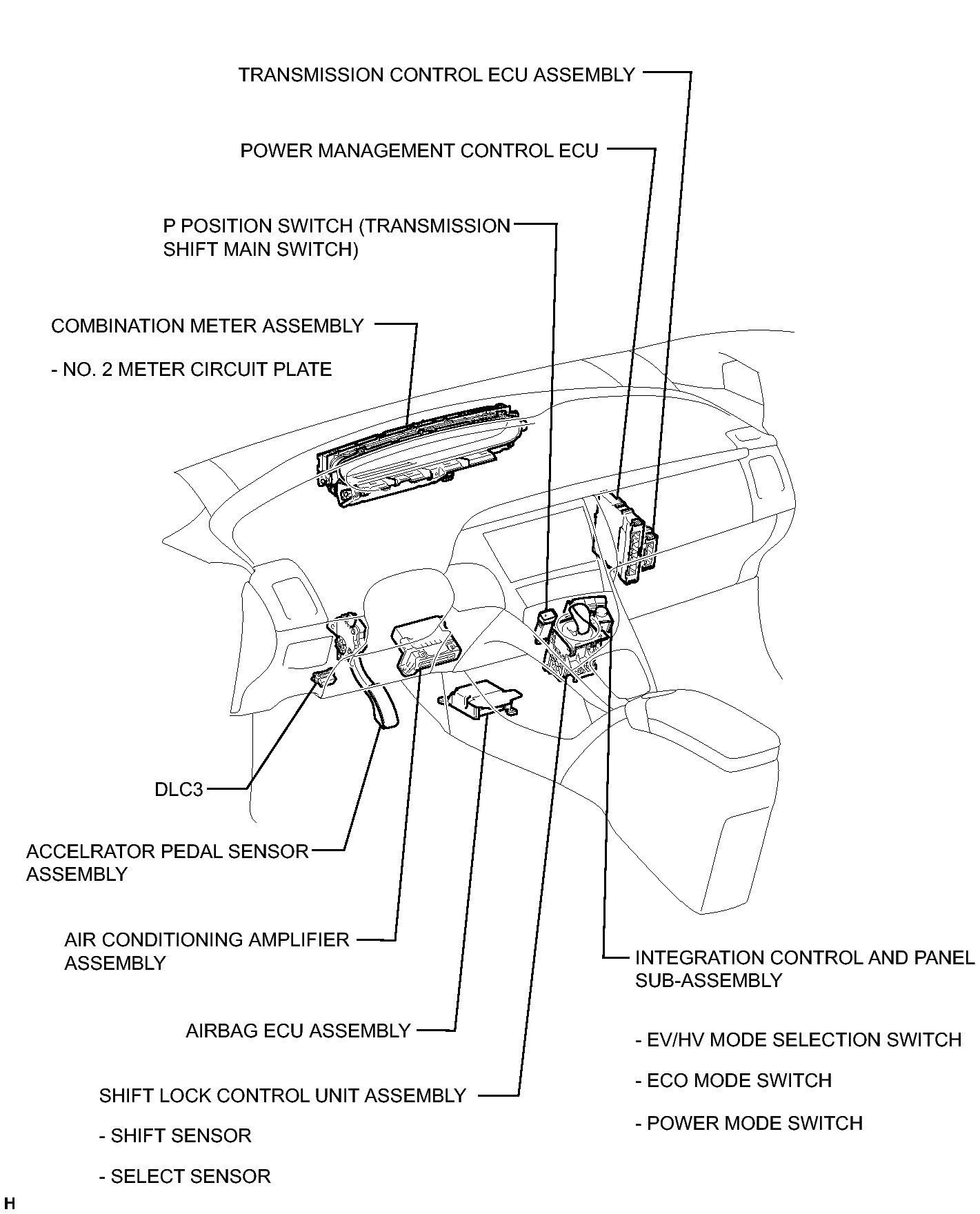

Fig 1: Identifying Hybrid Control System Components Location (1 Of 6)
GTY342332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

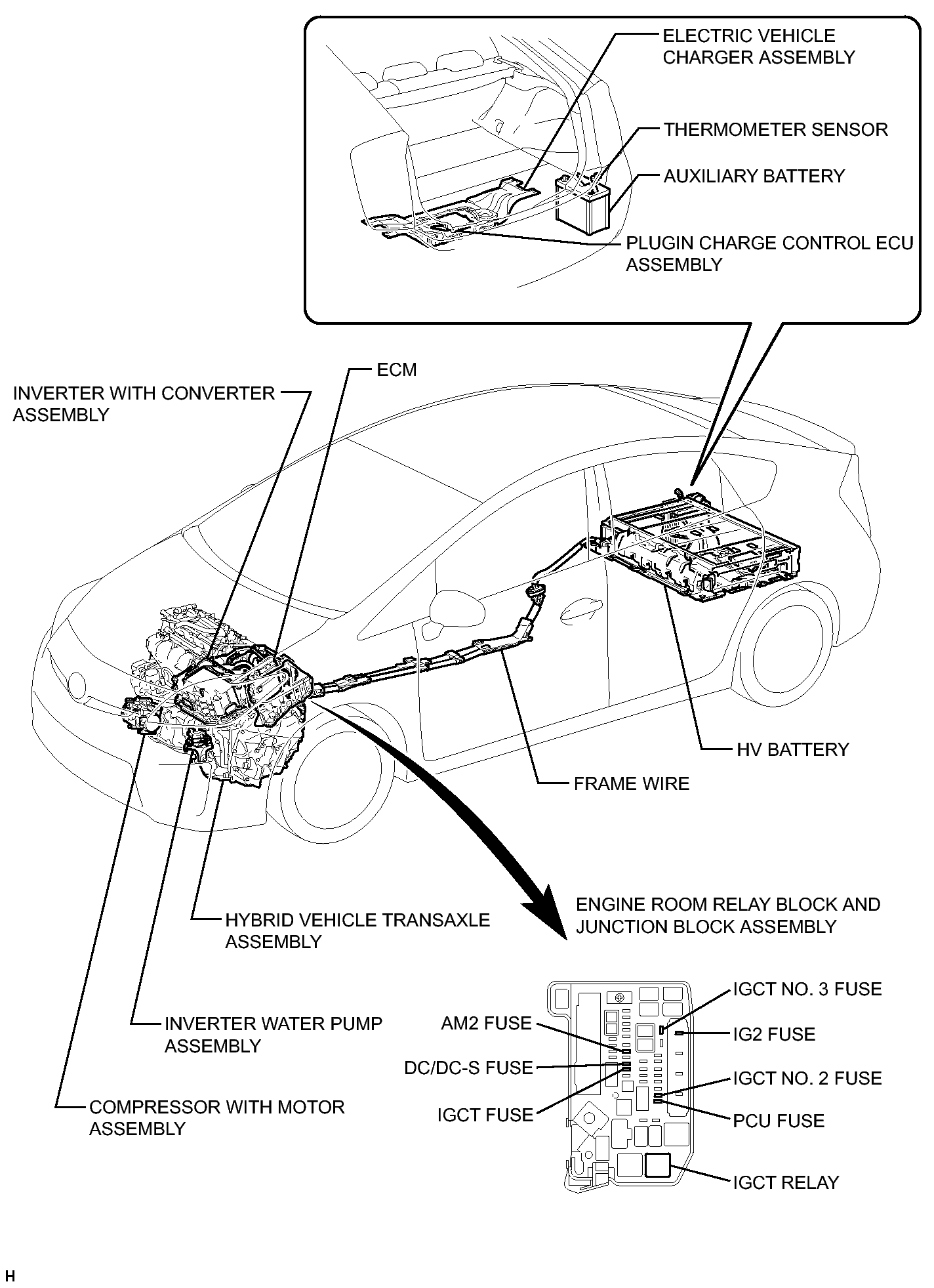

Fig 1: Identifying Hybrid Control System Components Location (2 Of 6)
GTY324485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

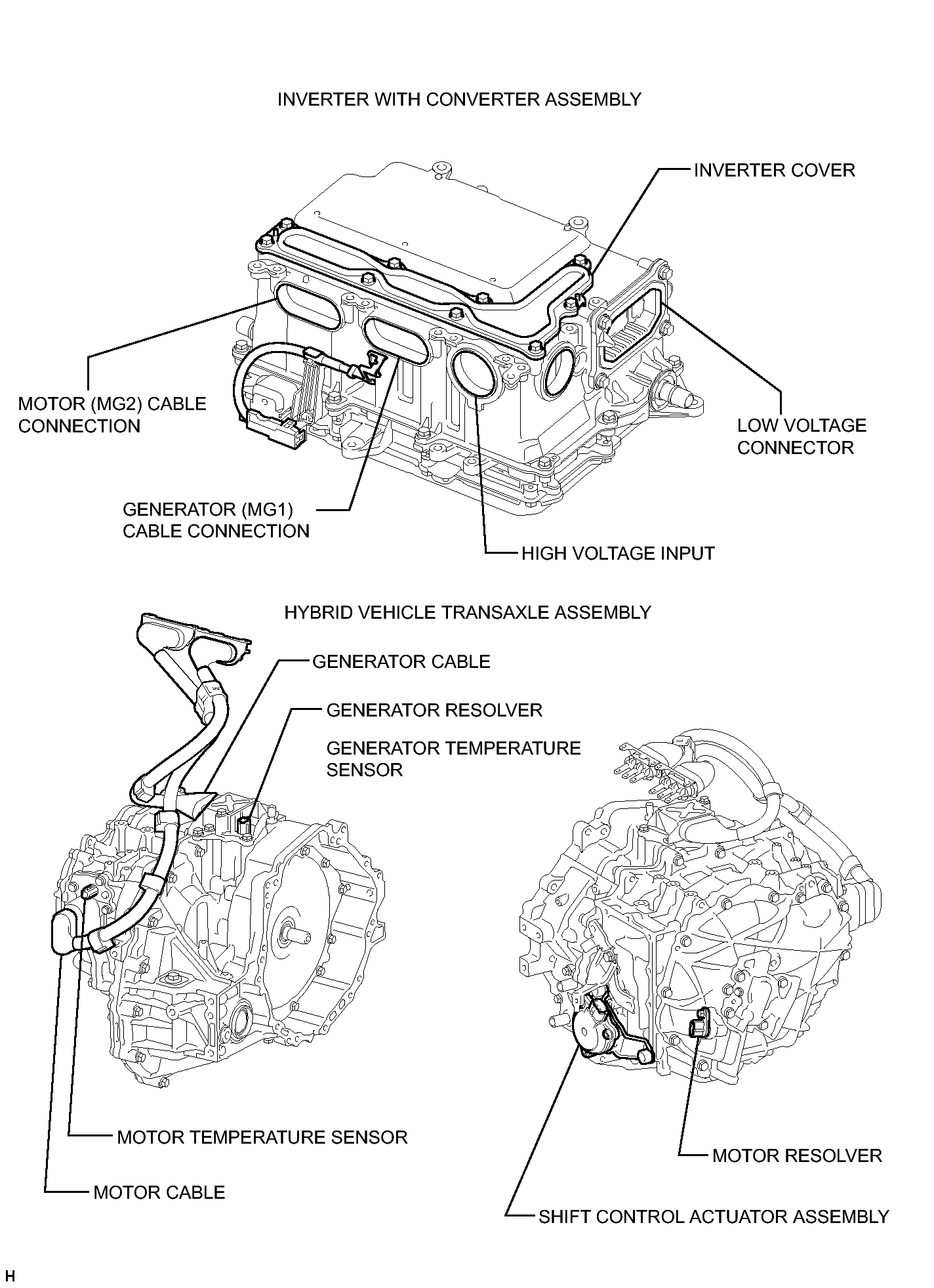

Fig 1: Identifying Hybrid Control System Components Location (3 Of 6)
GTY342800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

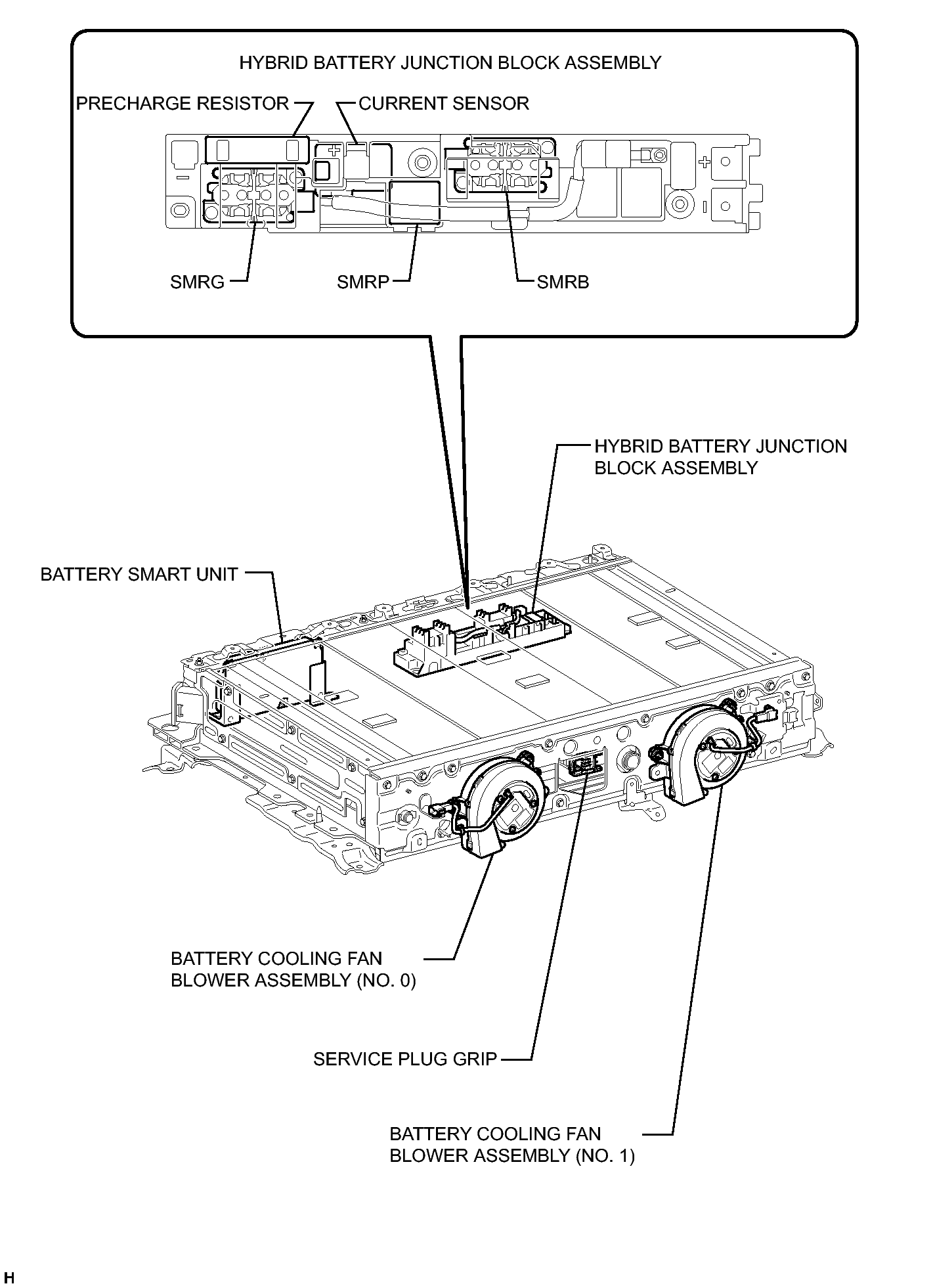

Fig 1: Identifying Hybrid Control System Components Location (4 Of 6)
GTY341305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

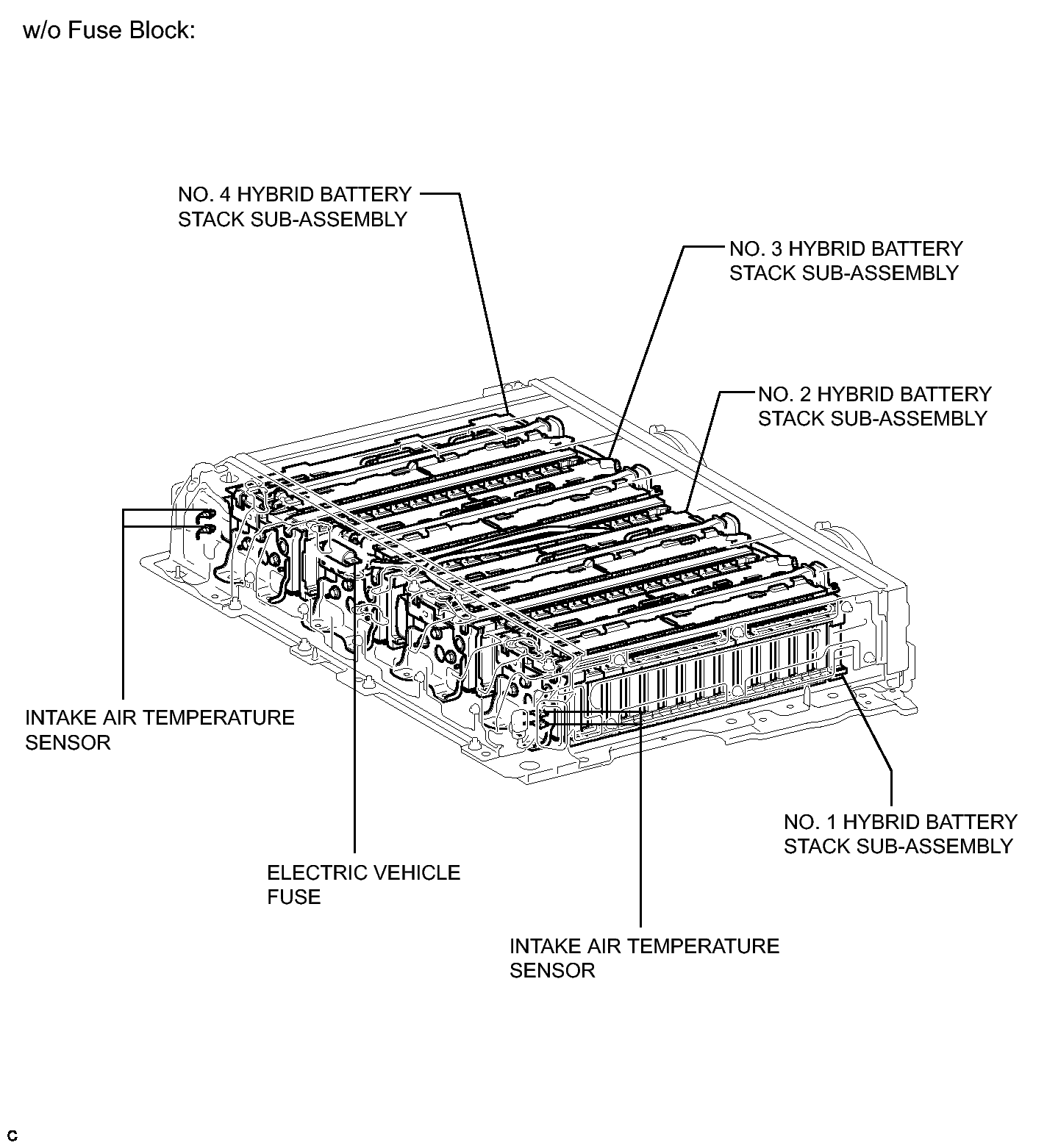

Fig 1: Identifying Hybrid Control System Components Location (5 Of 6)
GTY333123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

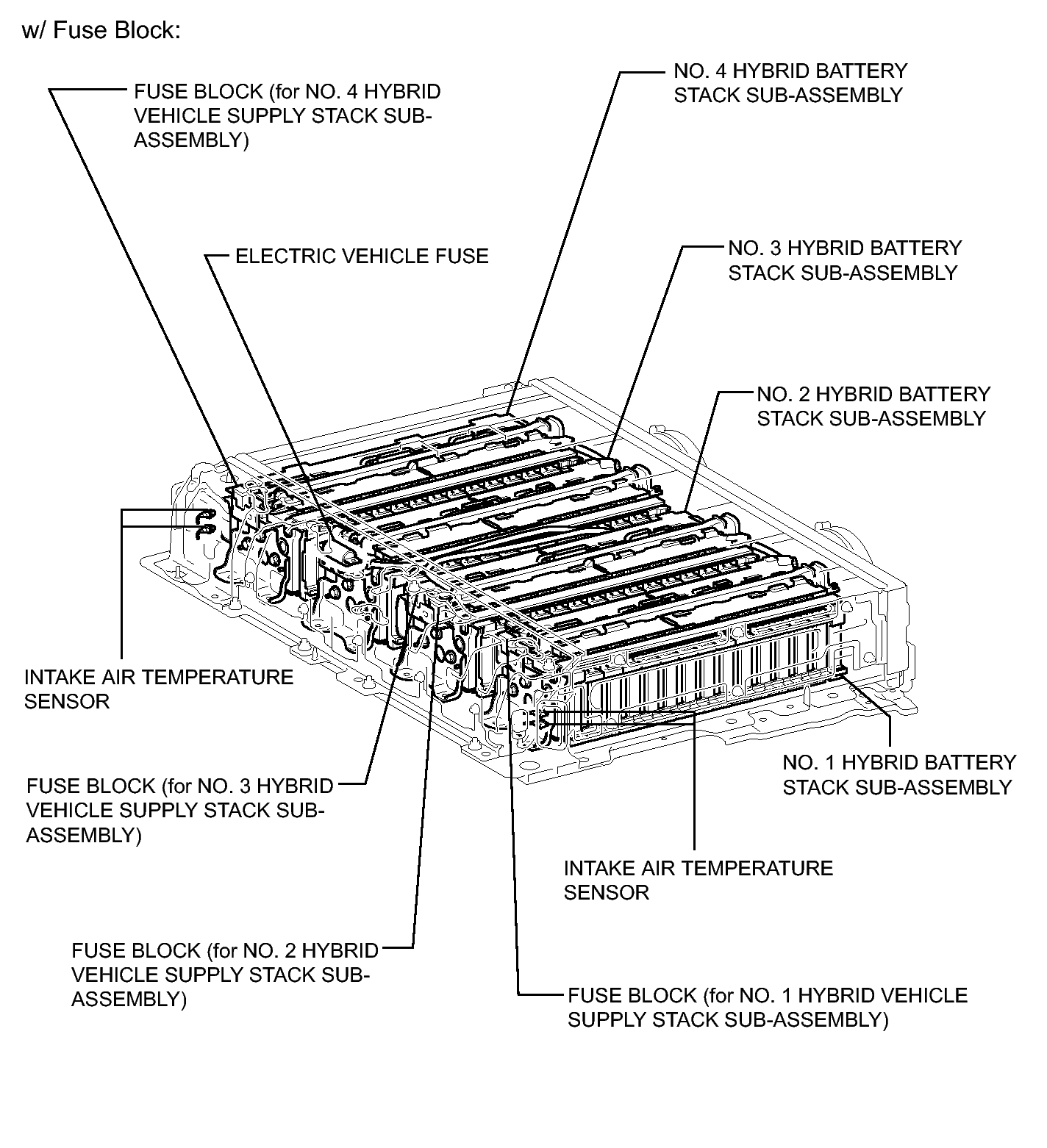

Fig 1: Identifying Hybrid Control System Components Location (6 Of 6)
GTY326727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
