Section 130 (Front Power Seat Control System (Plug-In) (Inspection))
>>
Front Power Seat Control System
>>
Parts Location
>>
Illustration
Parts Location: Illustration
WARNING:
This page is about a different variant/trim than selected.

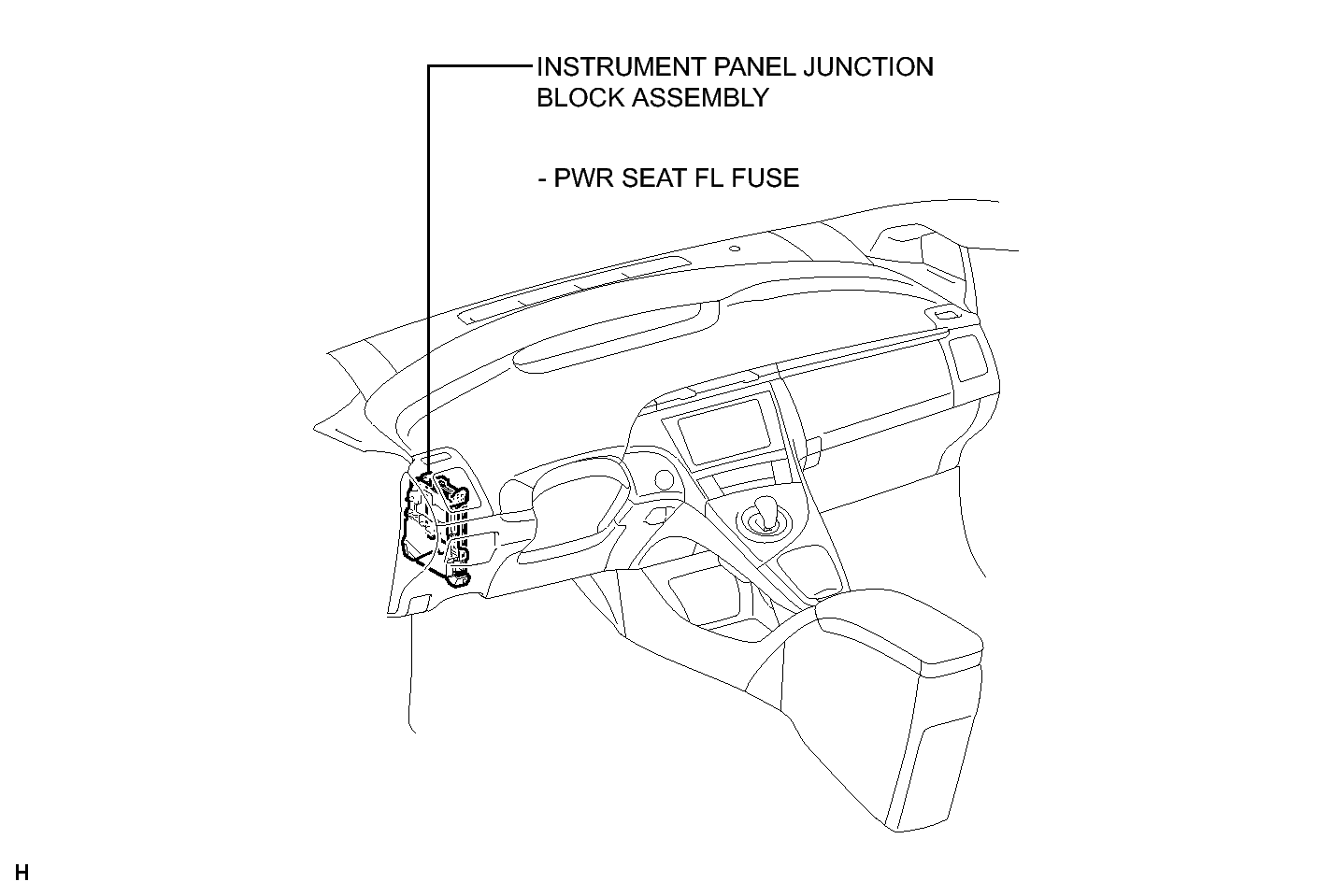

Fig 1: Identifying Front Power Seat Control Replacement Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

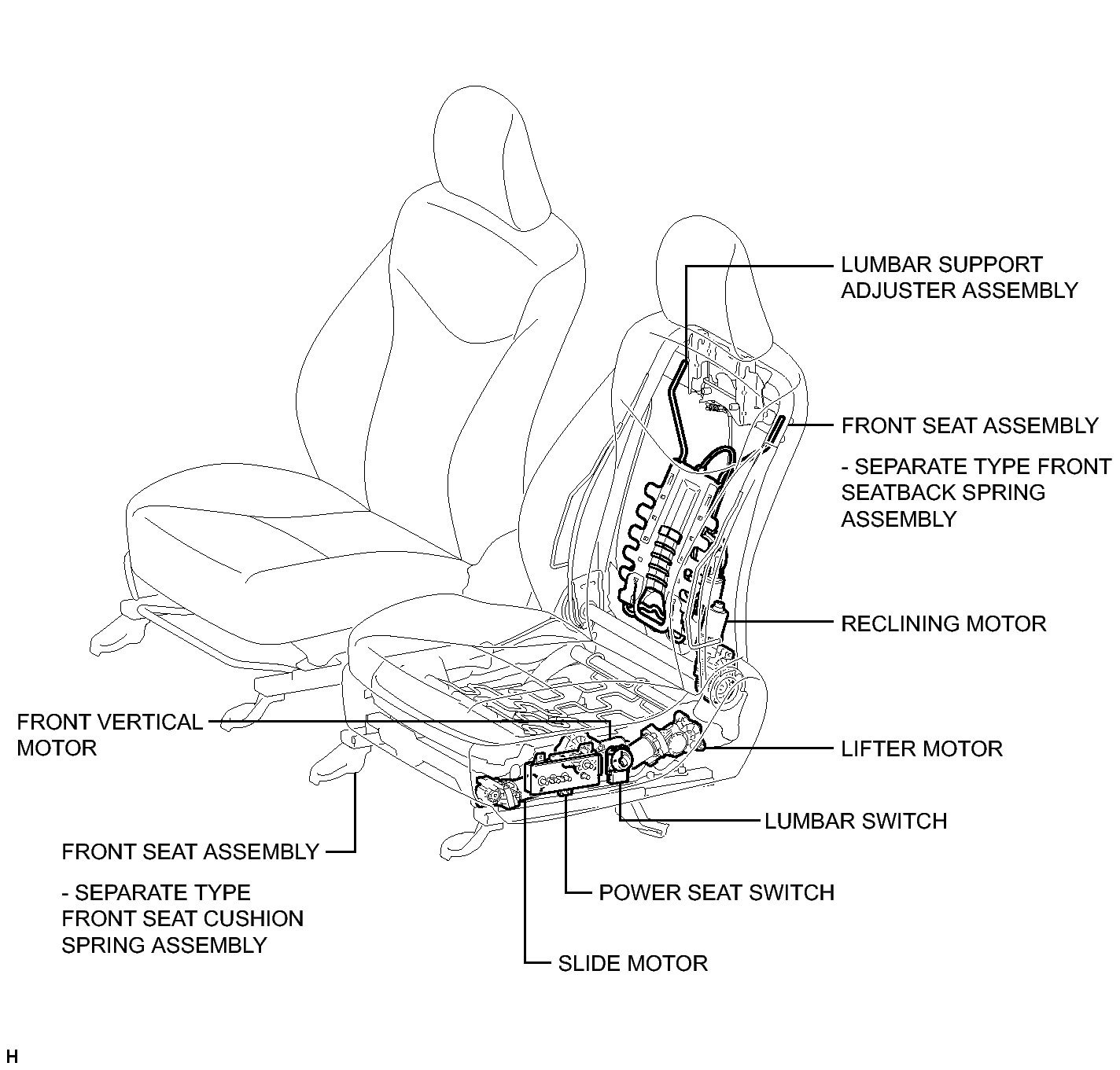

Fig 1: Identifying Front Power Seat Control Replacement Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
