Wireless Door Lock Control System (Except Plug-In) (Diagnostics - Introduction)
>>
Wireless Door Lock Control System
>>
System Diagram
>>
System Diagram
System Diagram

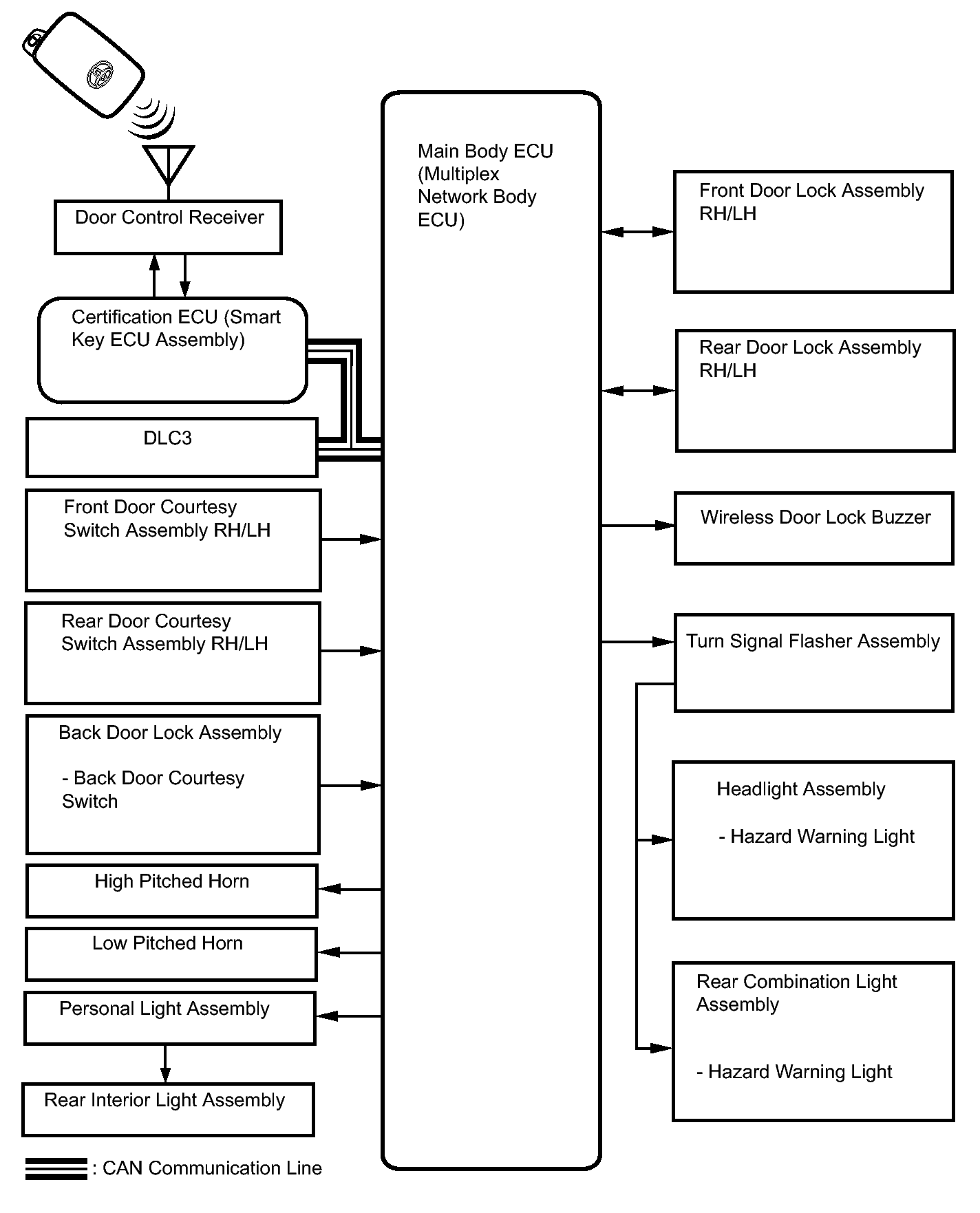

Fig 1: Identifying Wireless Door Lock Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE
Transmitting ECU (Transmitter)
Receiving ECU (Receiver)
Signal
Line
Certification ECU
(Smart key ECU assembly)
Main body ECU
(Multiplex network body ECU)
Wireless door lock signal
CAN
