Stop Light Switch Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

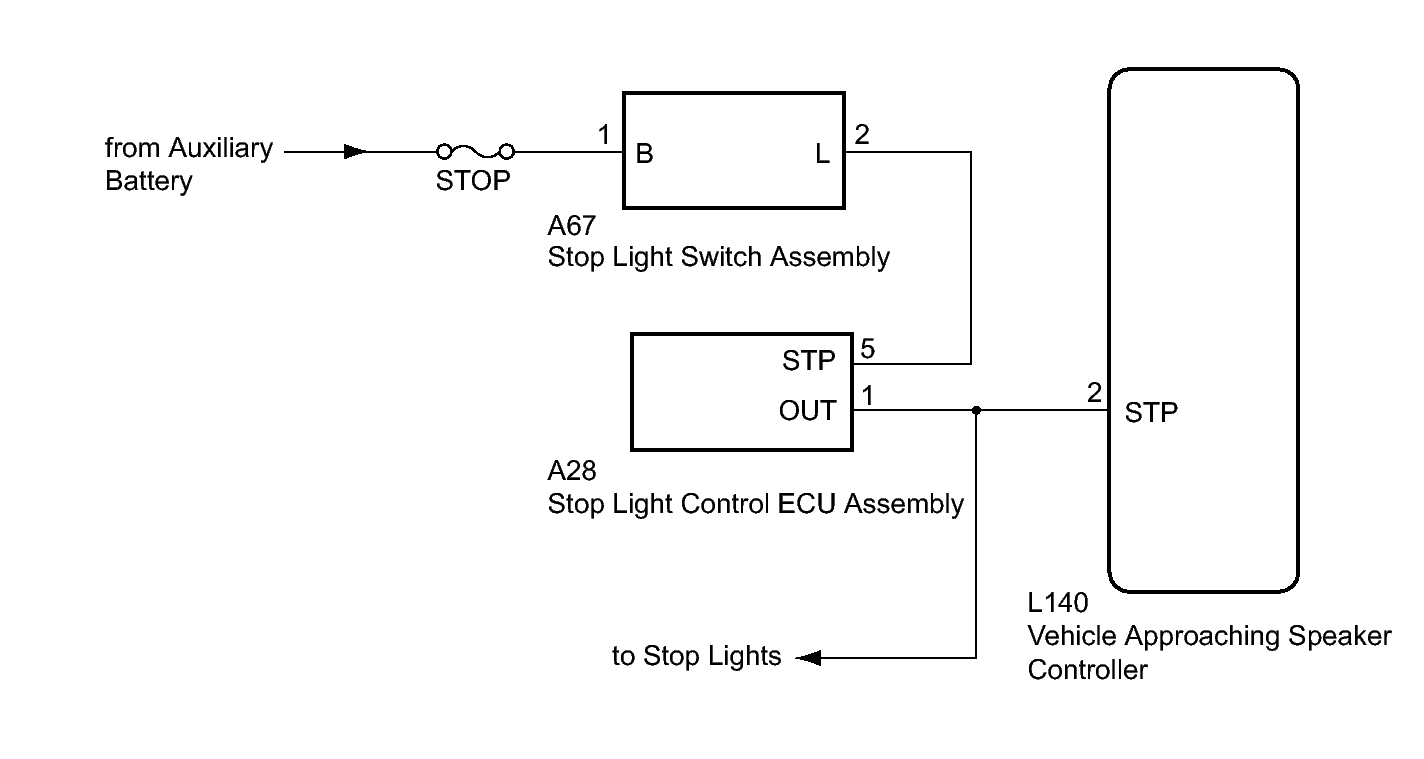

Fig 1: Stop Light Switch Circuit Wiring Diagram
GTY337933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
