Door Control Receiver: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

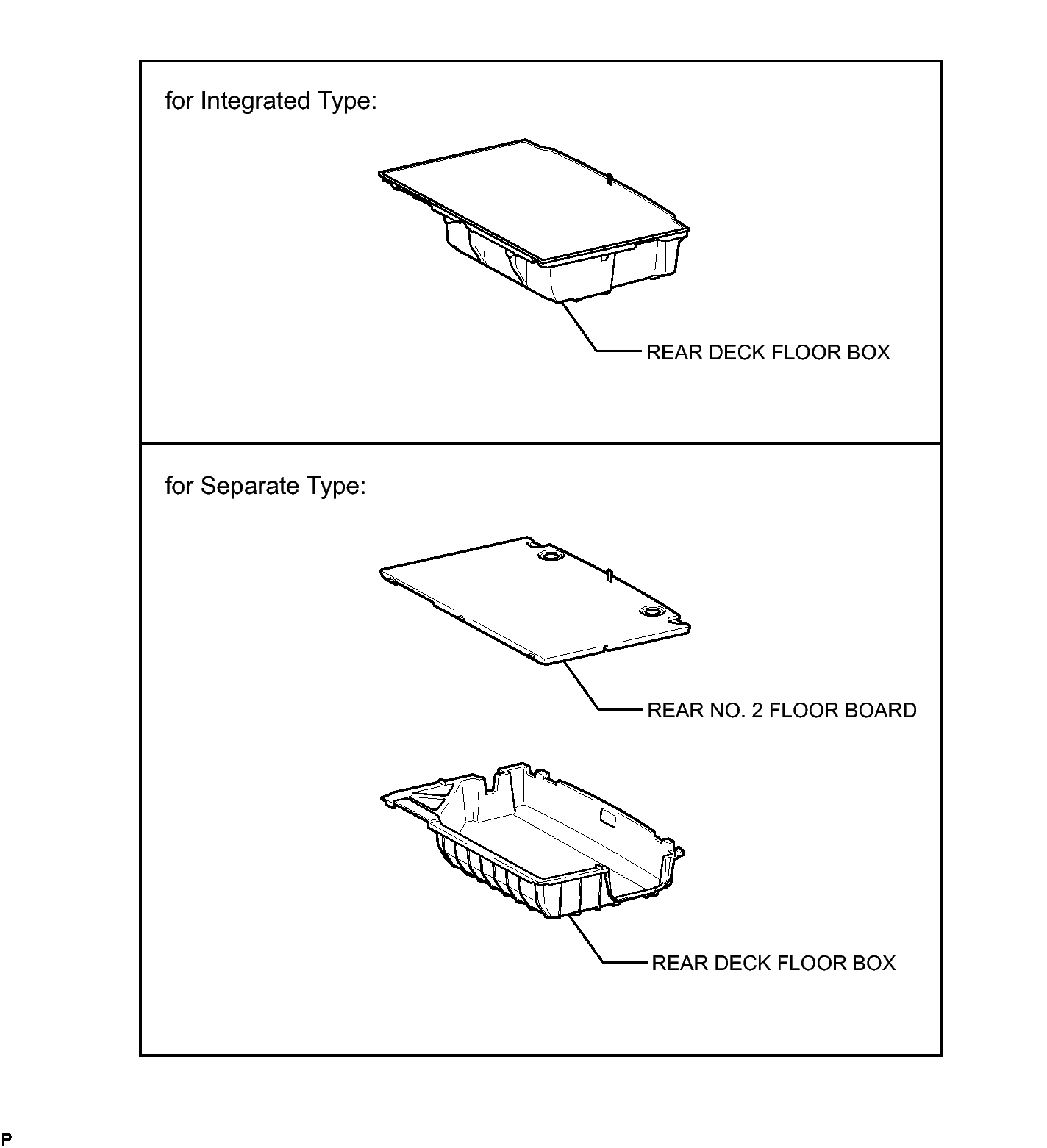

Fig 1: Identifying Door Control Receiver Replacement Components (1 Of 4)
GTY219601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

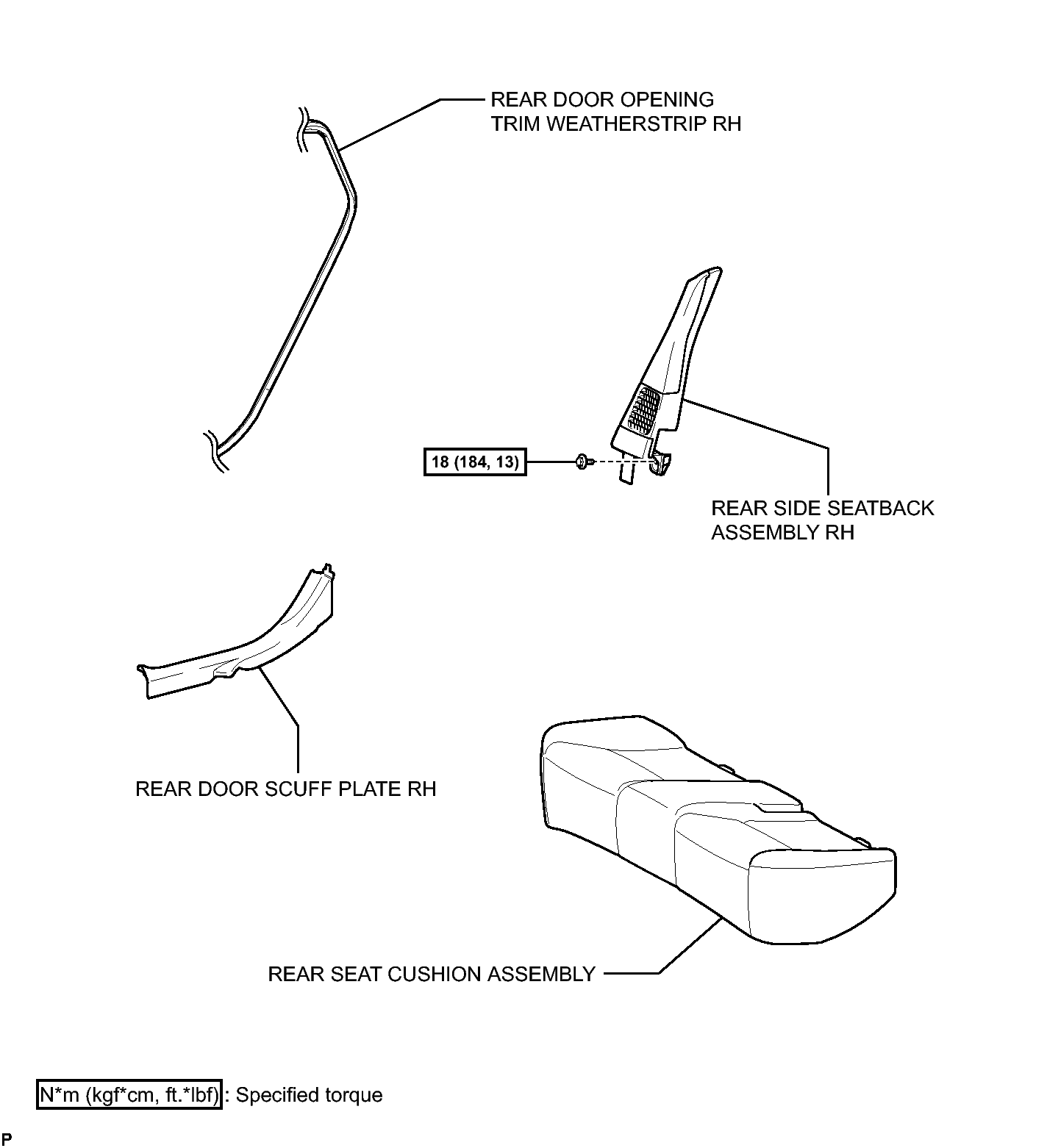

Fig 2: Identifying Door Control Receiver Replacement Components With Torque Specifications (2 Of 4)
GTY224973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

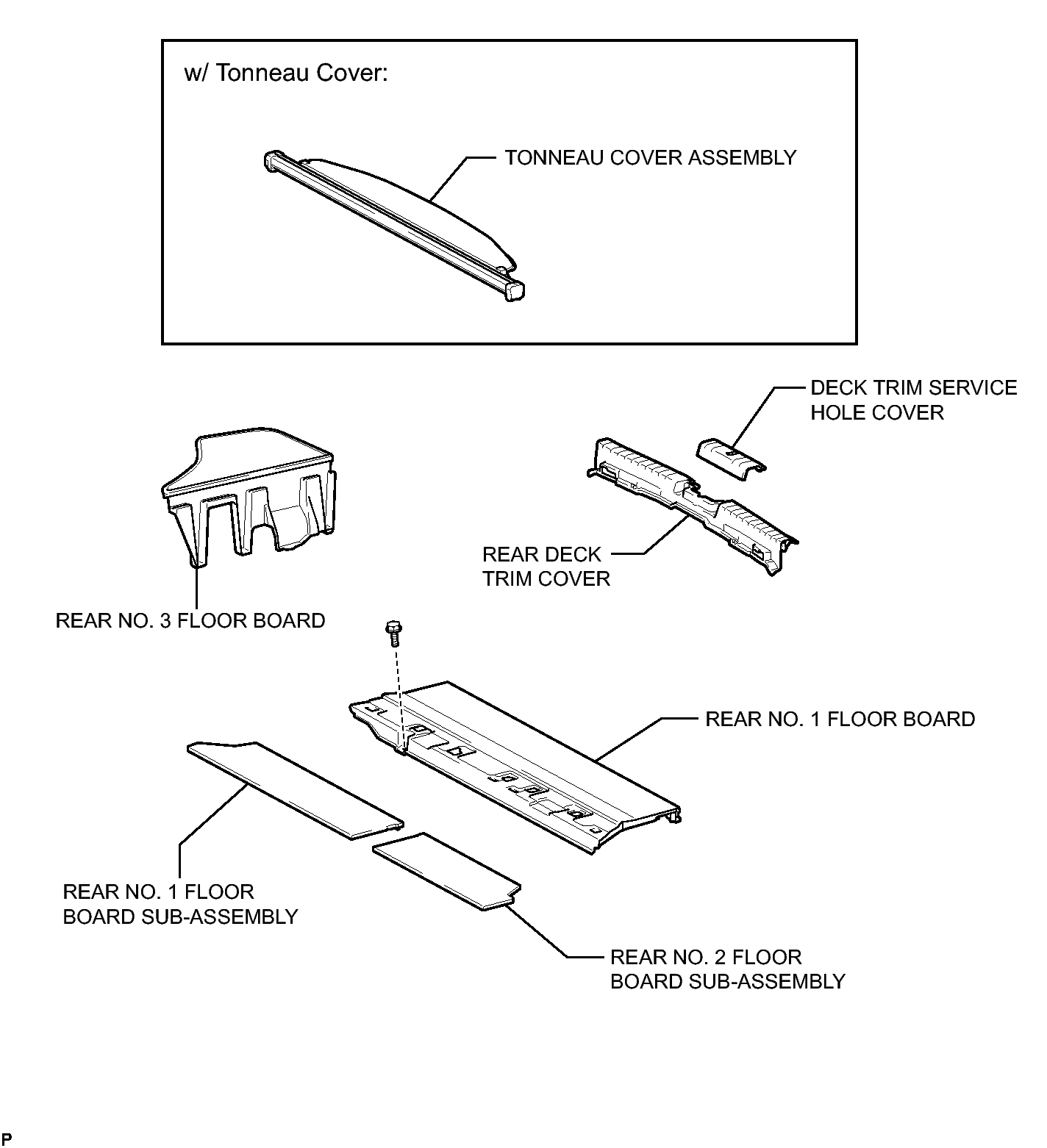

Fig 3: Identifying Door Control Receiver Replacement Components (3 Of 4)
GTY230318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

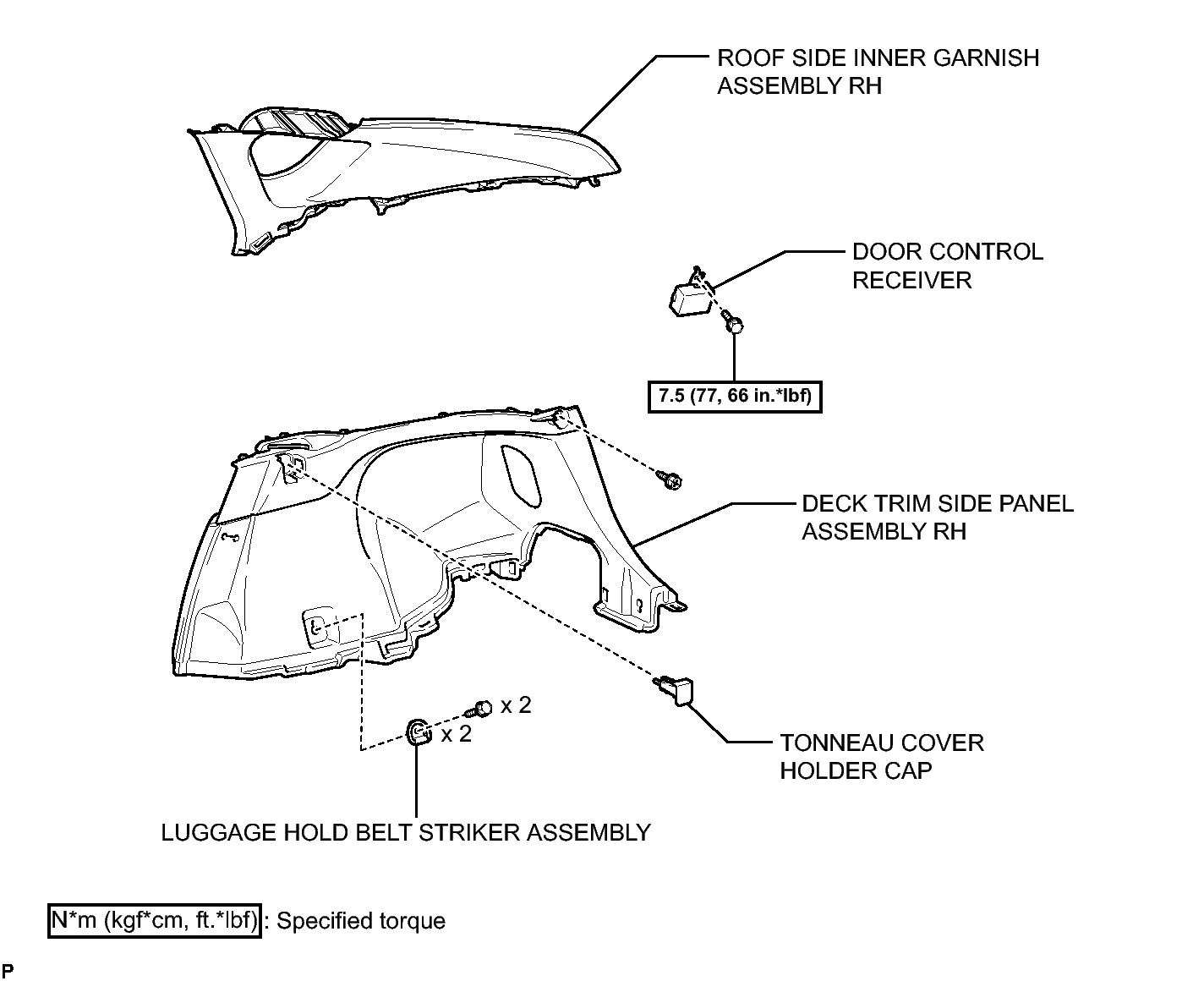

Fig 4: Identifying Door Control Receiver Replacement Components With Torque Specifications (4 Of 4)
GTY212994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
