Auto Headlight Beam Level Control System (Plug-In) (Diagnostics - Introduction)
>>
Automatic Headlight Beam Level Control System
>>
System Diagram
>>
System Diagram
System Diagram

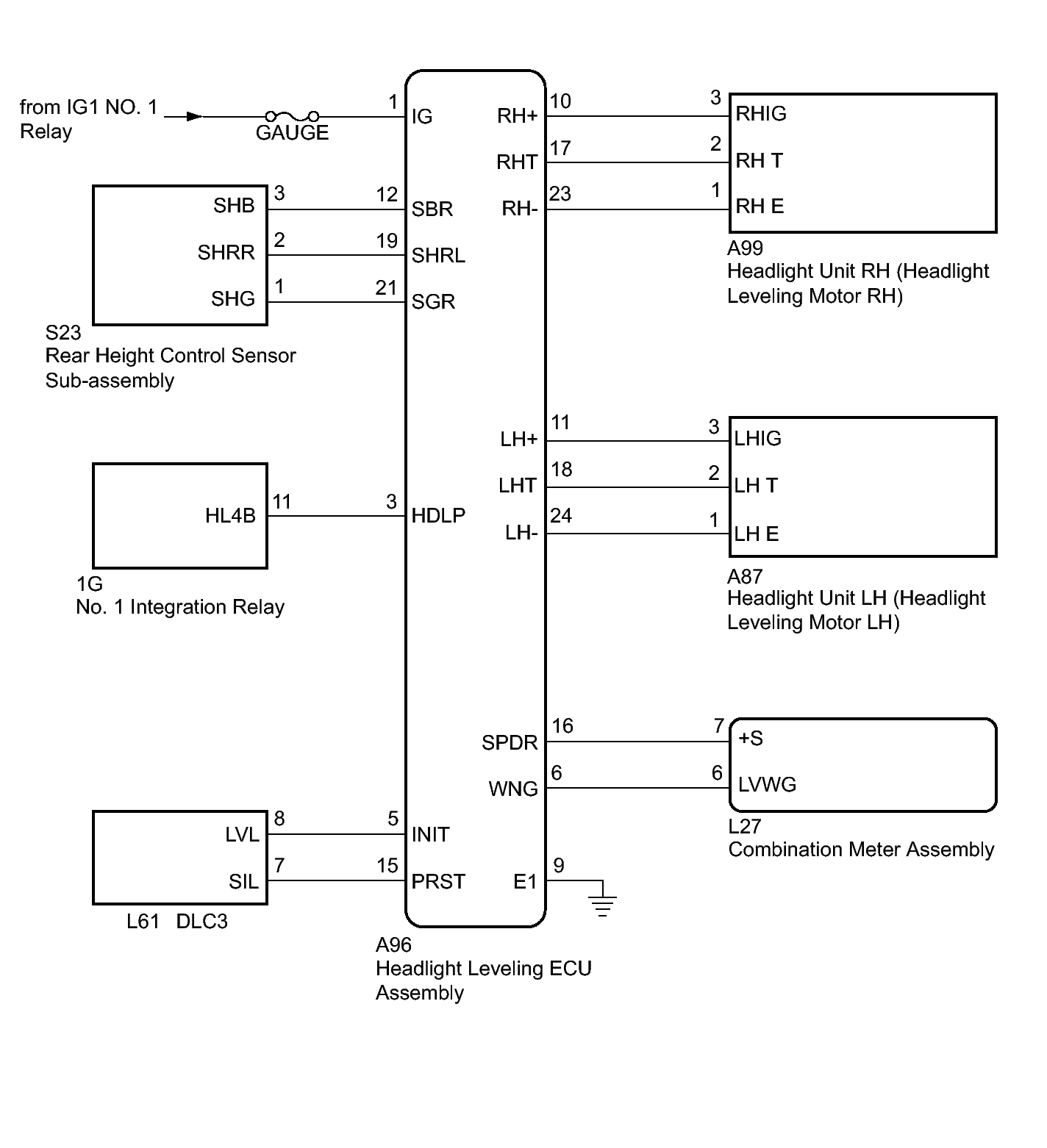

Fig 1: Identifying Automatic Headlight Beam Level Control System Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
