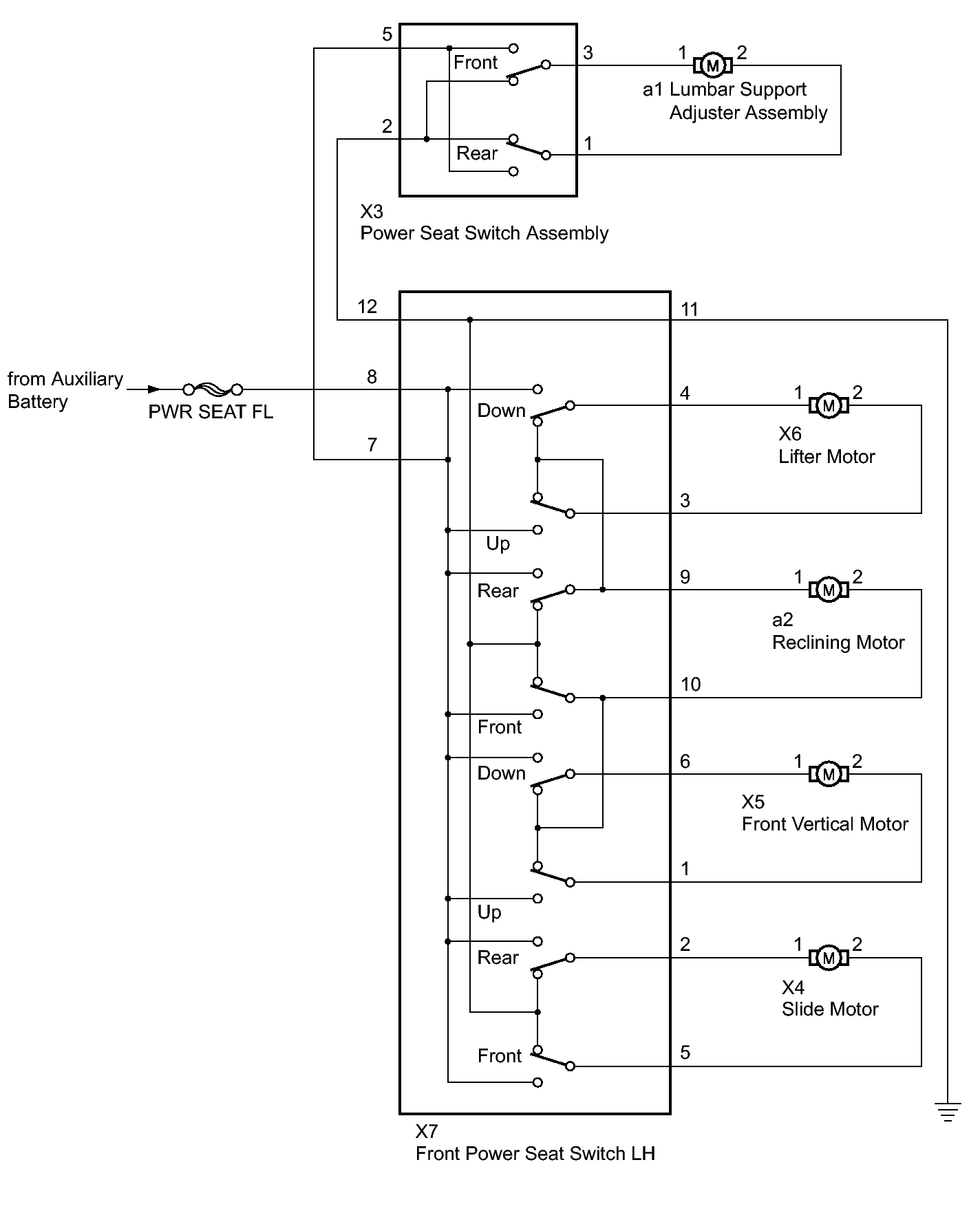

Home >> Toyota >> 2012 >> Prius Four >> Repair and Diagnosis (Single Page) >> Body & Frame >> Seats >> Front Power Seat Control System (Except Plug-In) (Inspection) >> Front Power Seat Control System >> System Diagram >> System Diagram
