Section 341 (Power Door Lock Control System (Diagnostics & Symptom Tests))
>>
Power Door Lock Control System
>>
System Diagram
>>
System Diagram
System Diagram
WARNING:
This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

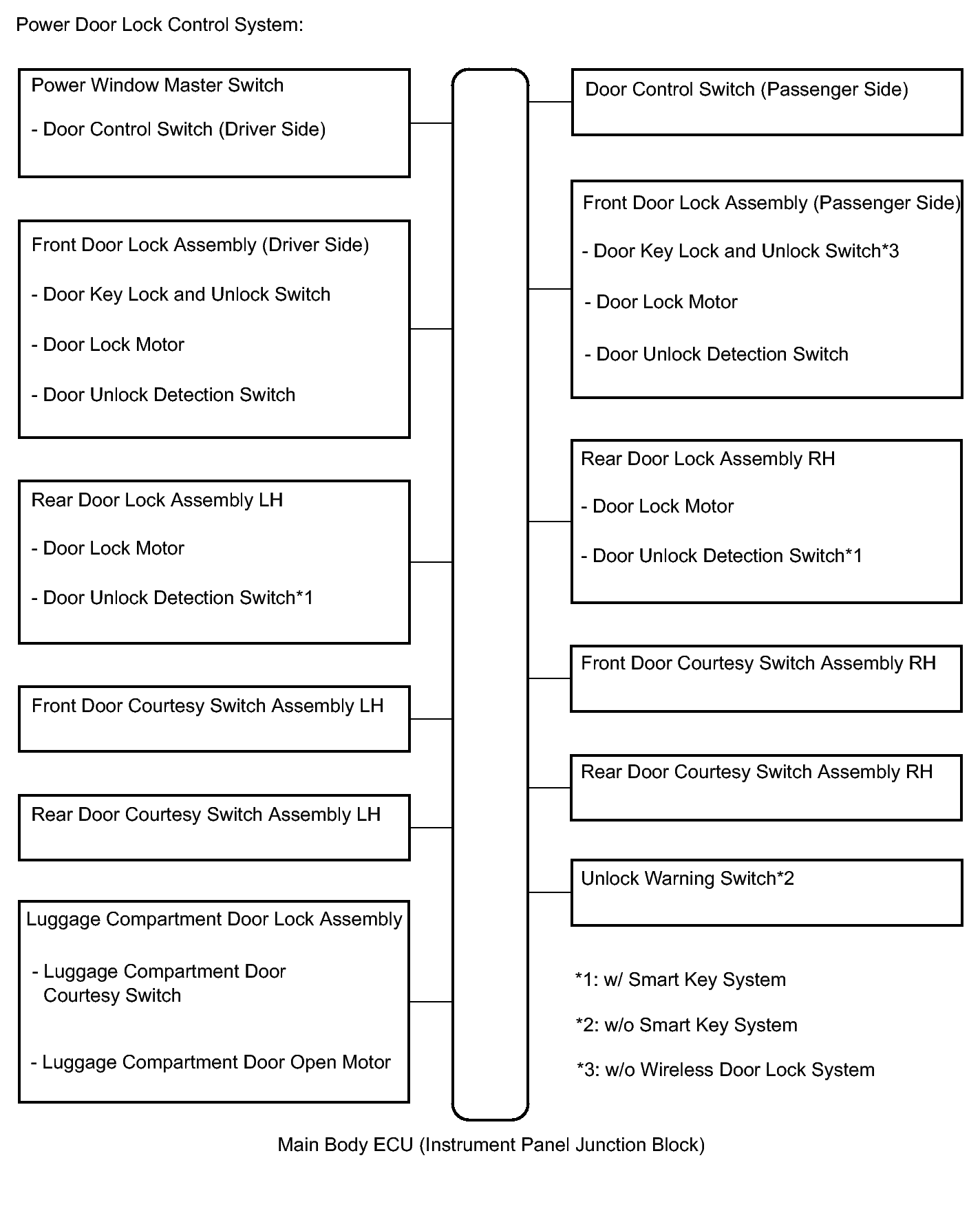

Fig 1: Power Door Lock Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
