System Diagram

WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

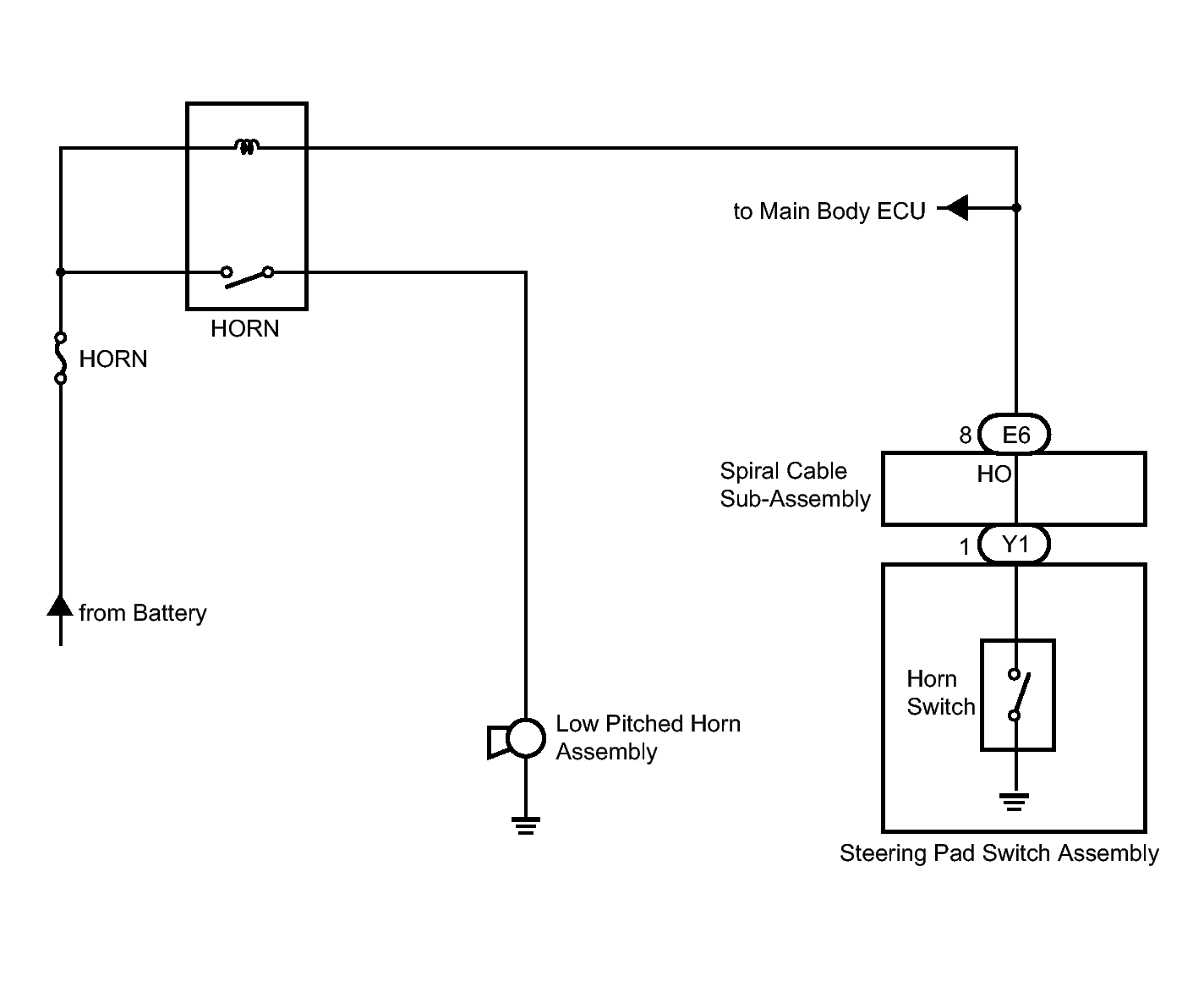

Fig 1: Horn System Circuit Diagram
GTY236229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
