Parts Location: Illustration

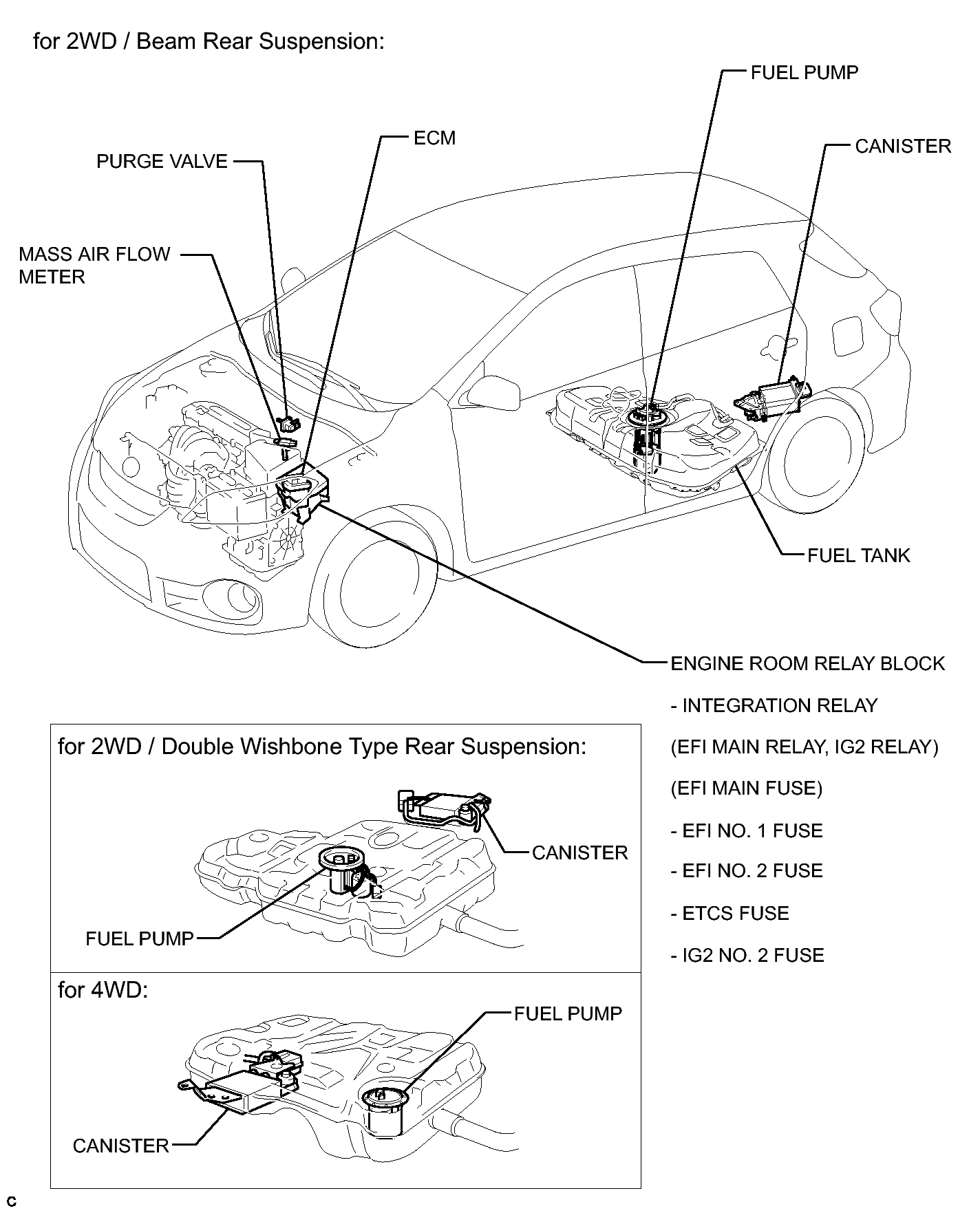

Fig 1: Identifying SFI System Components Location (1 Of 3)
GTY319483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

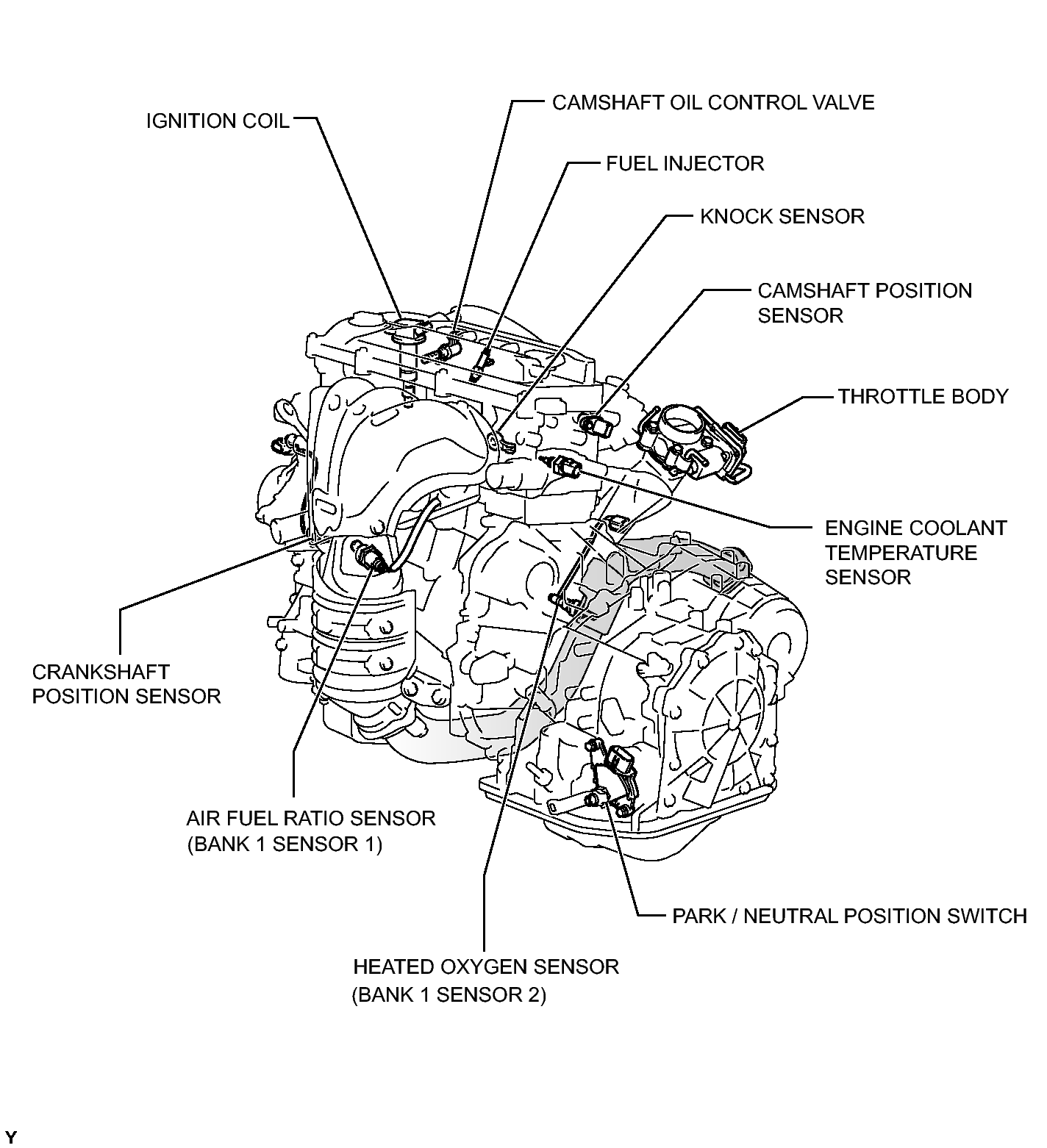

Fig 1: Identifying SFI System Components Location (2 Of 3)
GTY321496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

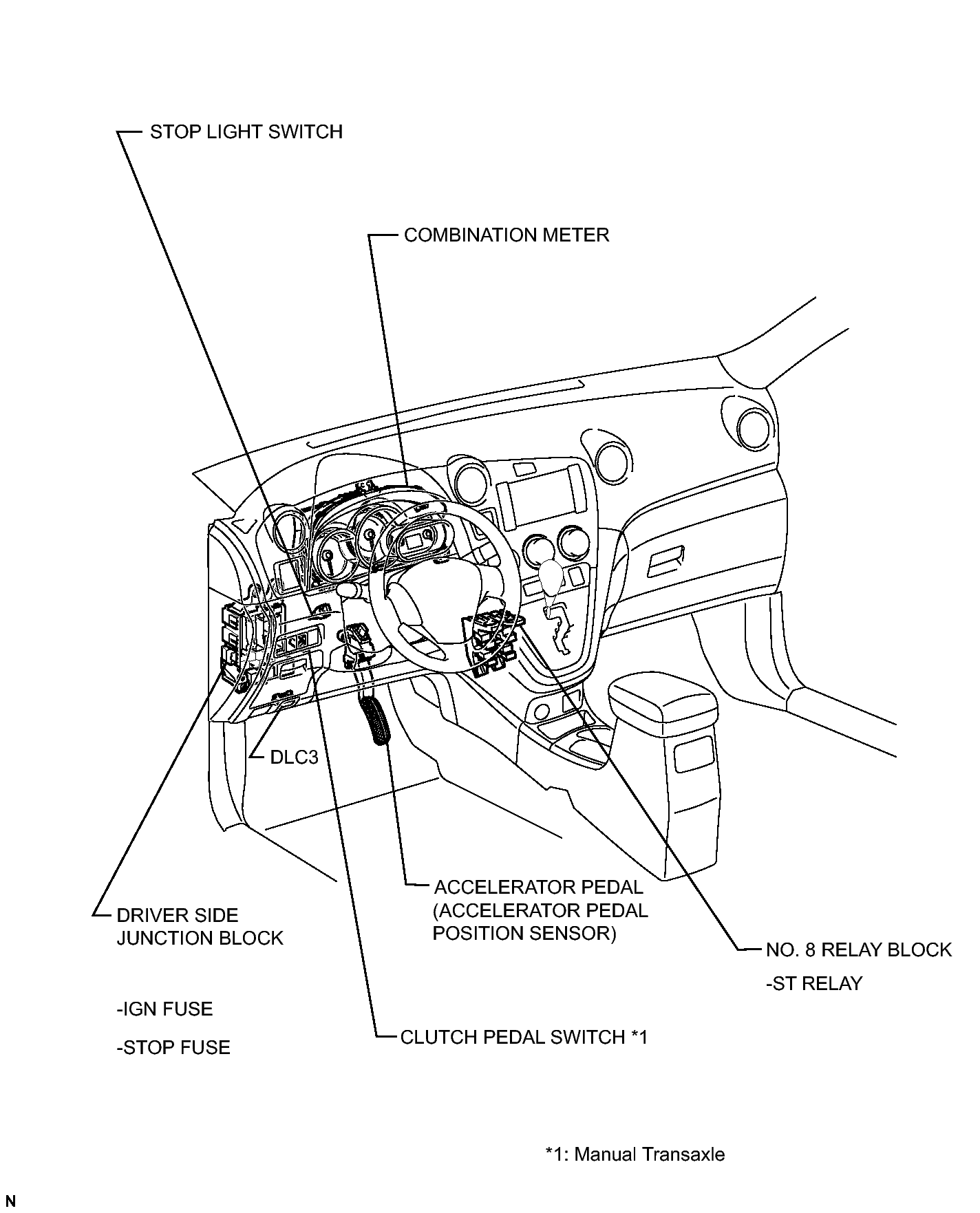

Fig 1: Identifying SFI System Components Location (3 Of 3)
GTY234809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
