Parts Location: Illustration

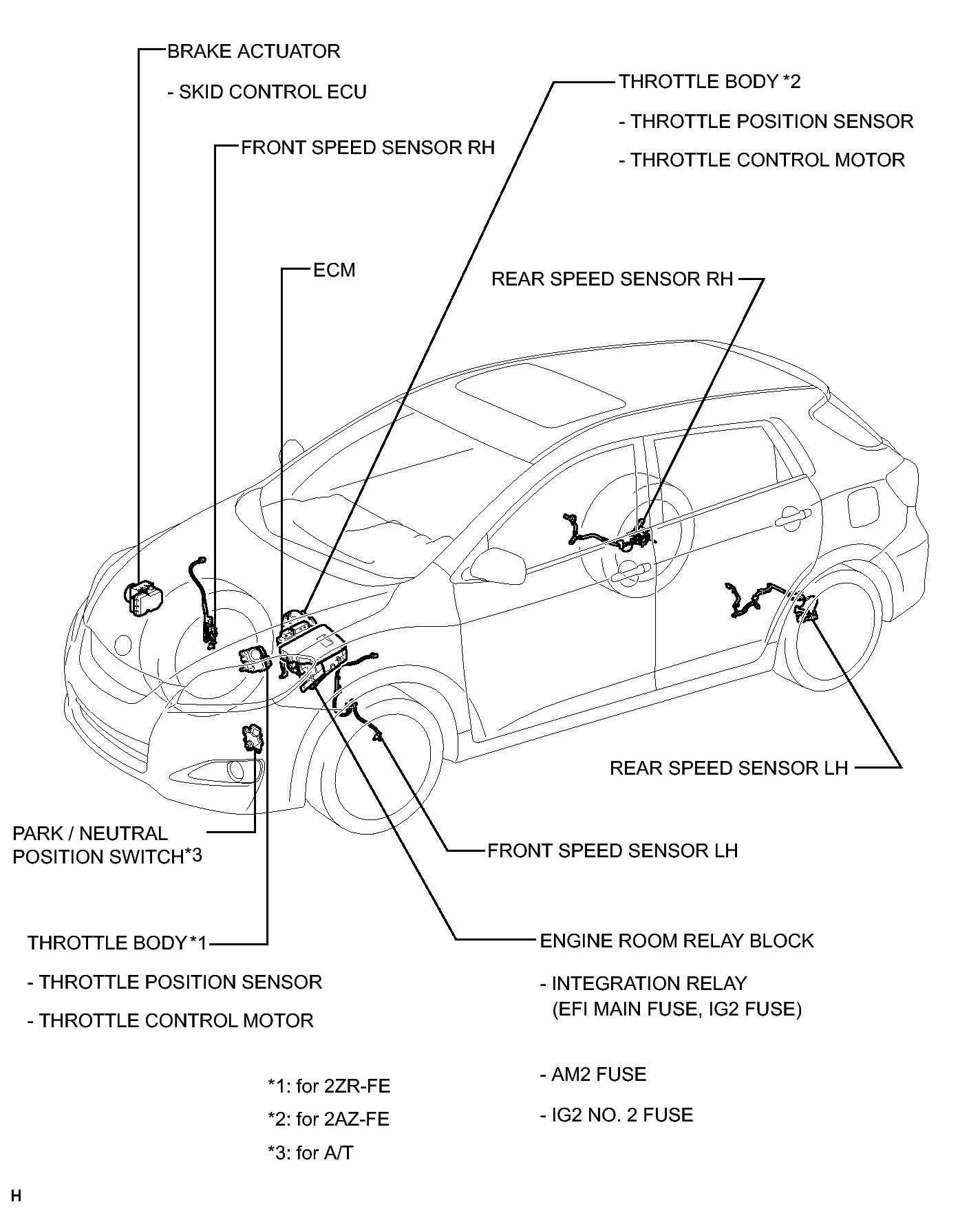

Fig 1: Identifying Cruise Control System Components Location (1 Of 2)
GTY293414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

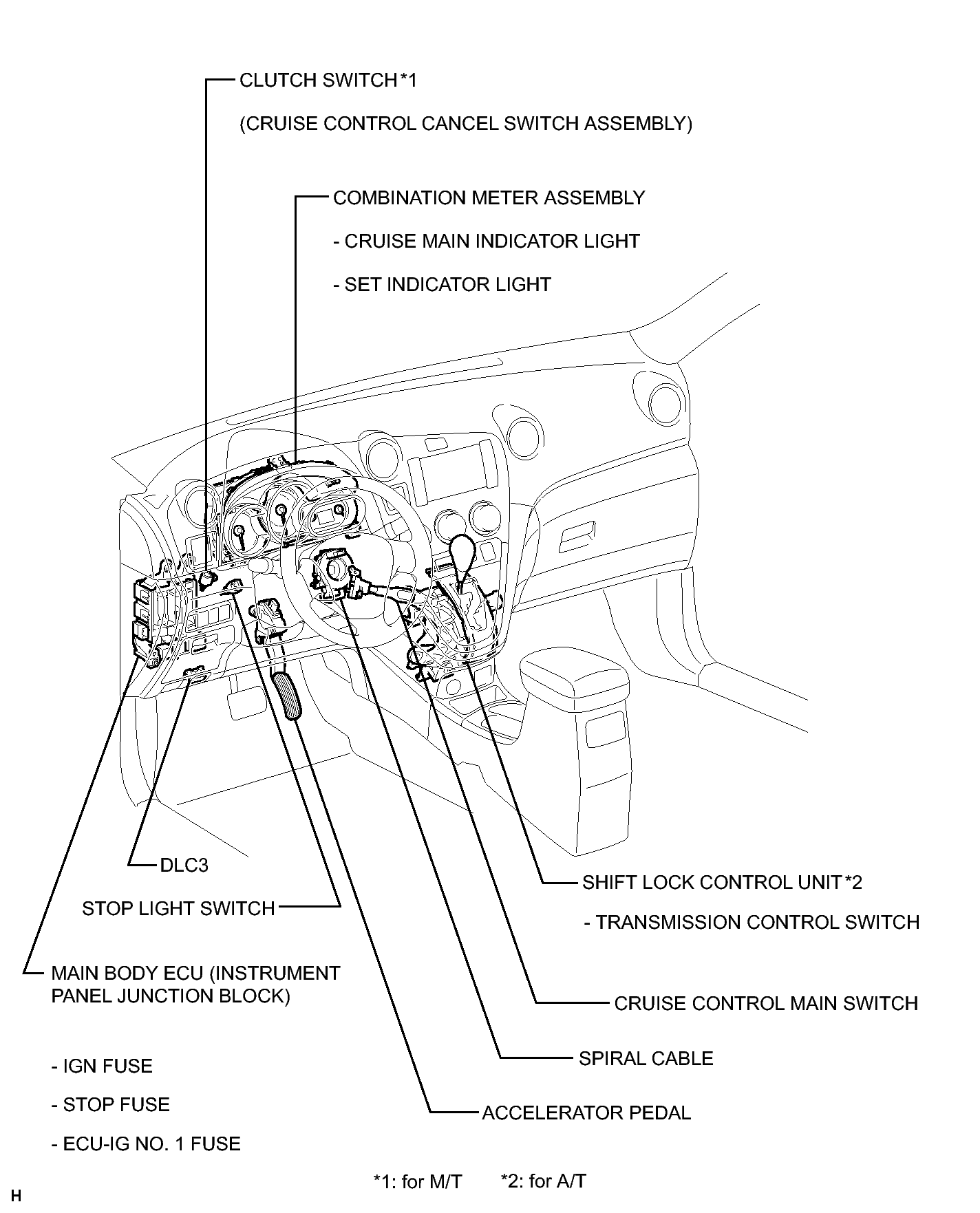

Fig 1: Identifying Cruise Control System Components Location (2 Of 2)
GTY290547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
