Parts Location: Illustration

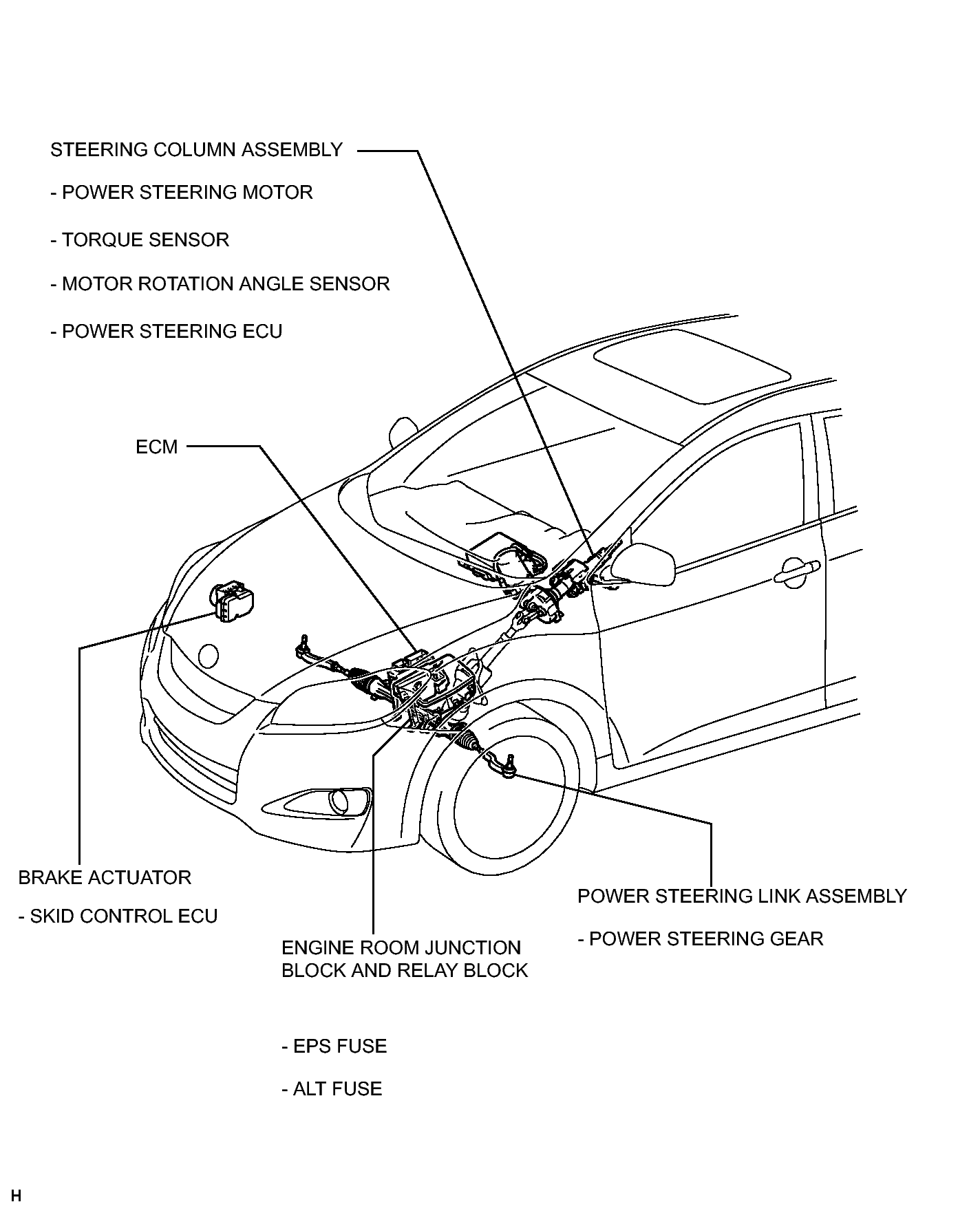

Fig 1: Identifying Power Steering System Components Location (1 Of 2)
GTY217591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

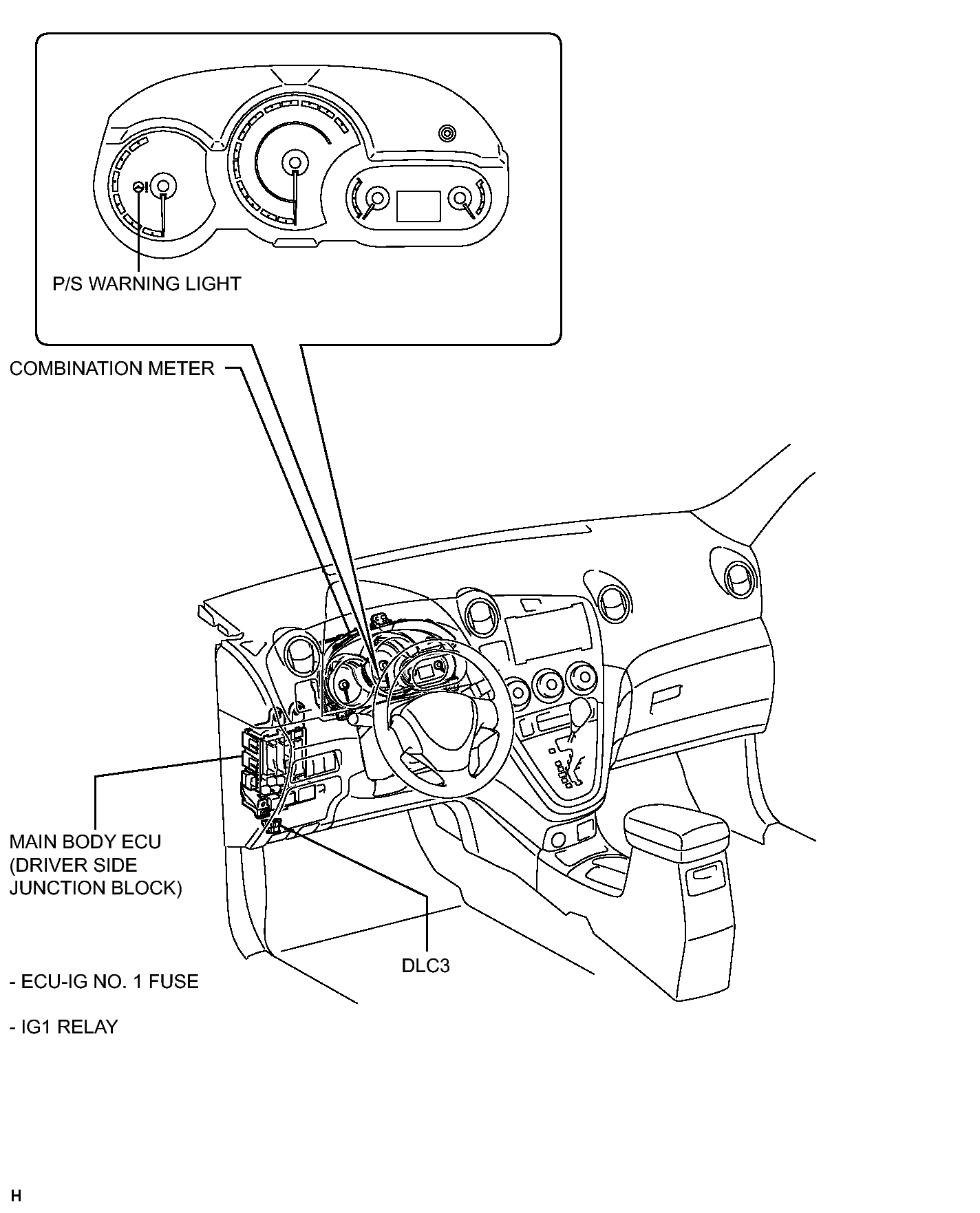

Fig 1: Identifying Power Steering System Components Location (2 Of 2)
GTY293693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
