Parts Location: Illustration

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

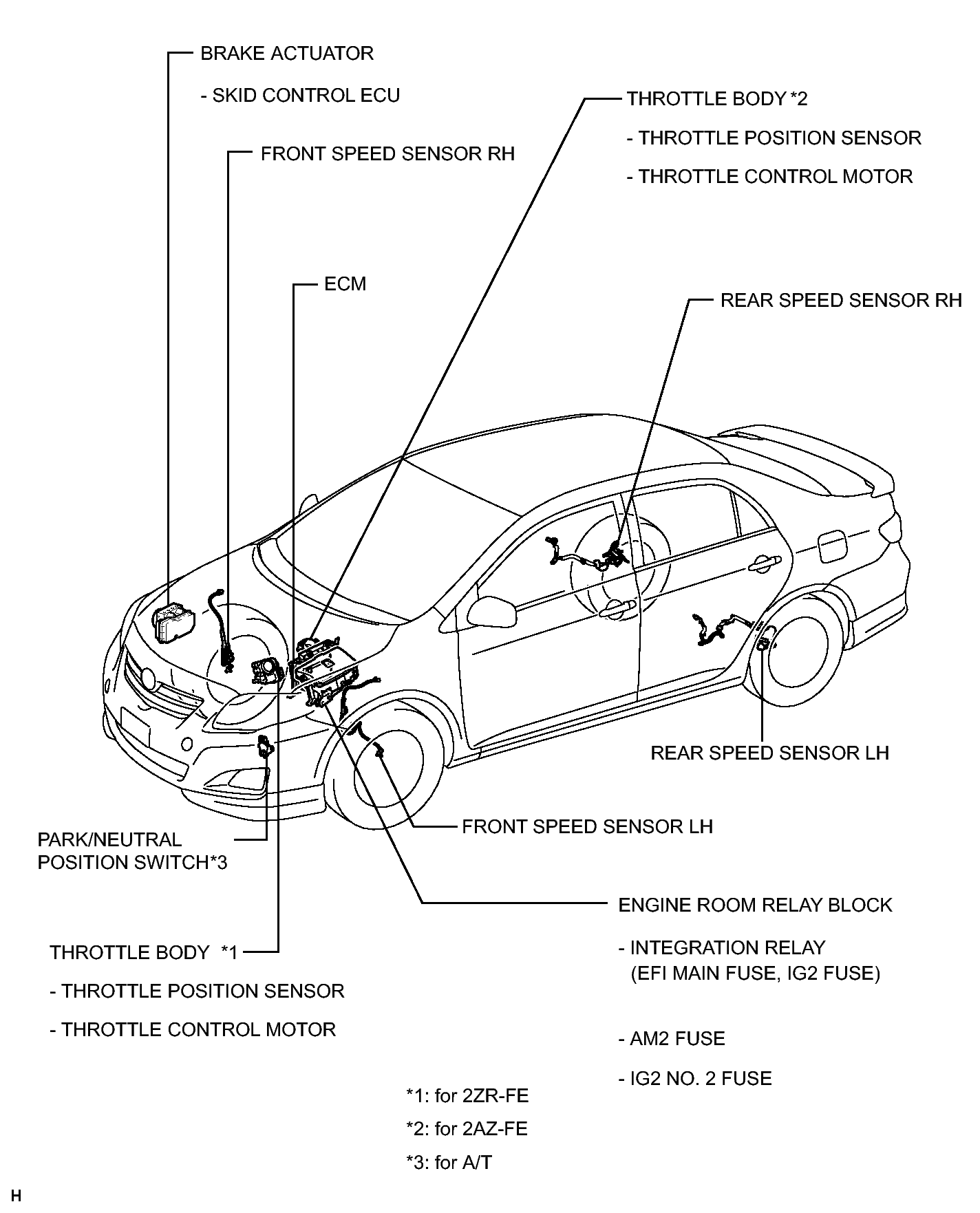

Fig 1: Cruise Control System Replacement Component Locations (1 Of 2)
GTY292516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

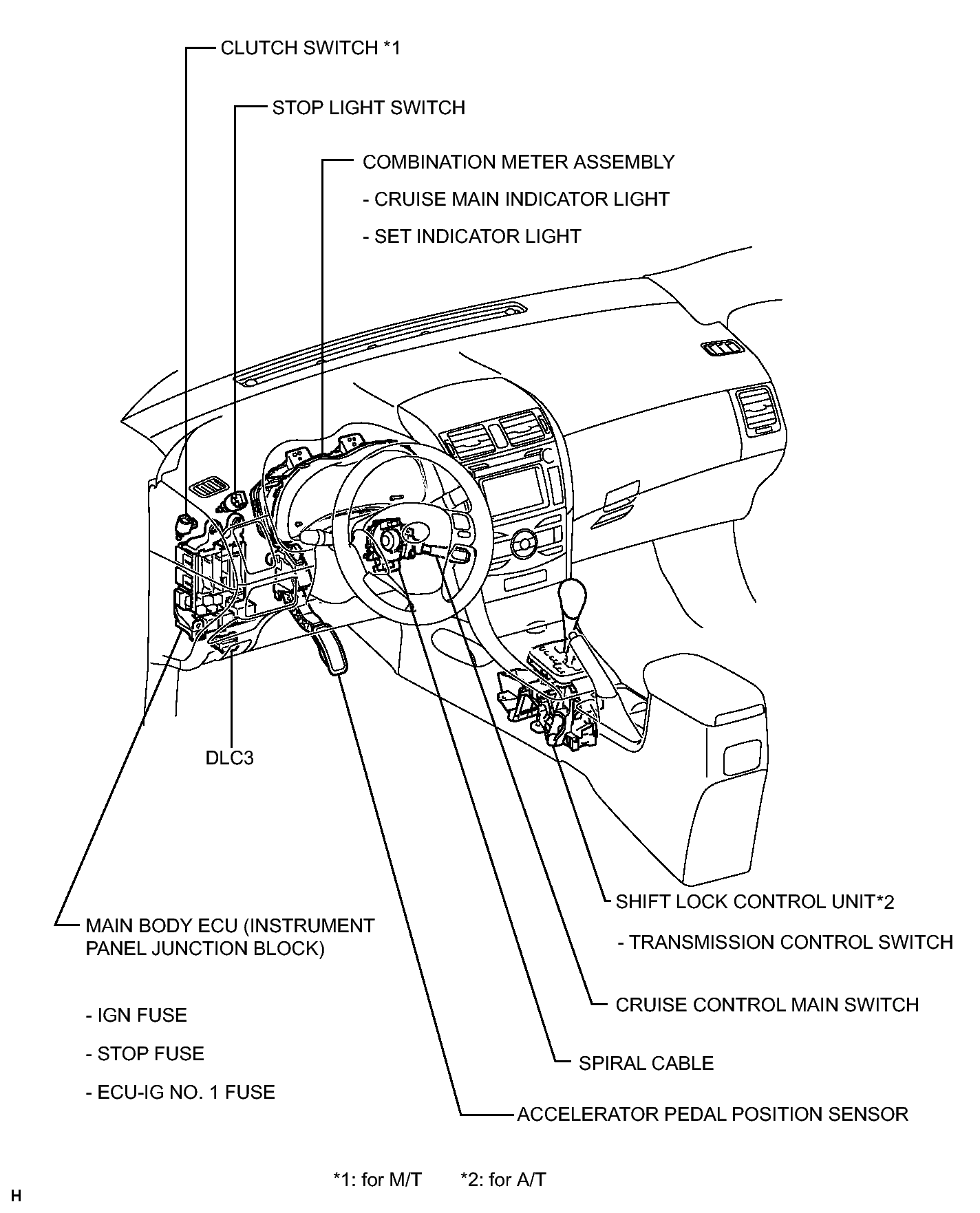

Fig 2: Cruise Control System Replacement Component Locations (2 Of 2)
GTY293448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
