Section 58 (Charging System (2ZR-FE) (Service Information)): Generator: Components: Illustration

WARNING: This page is about a different car, the 2011 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

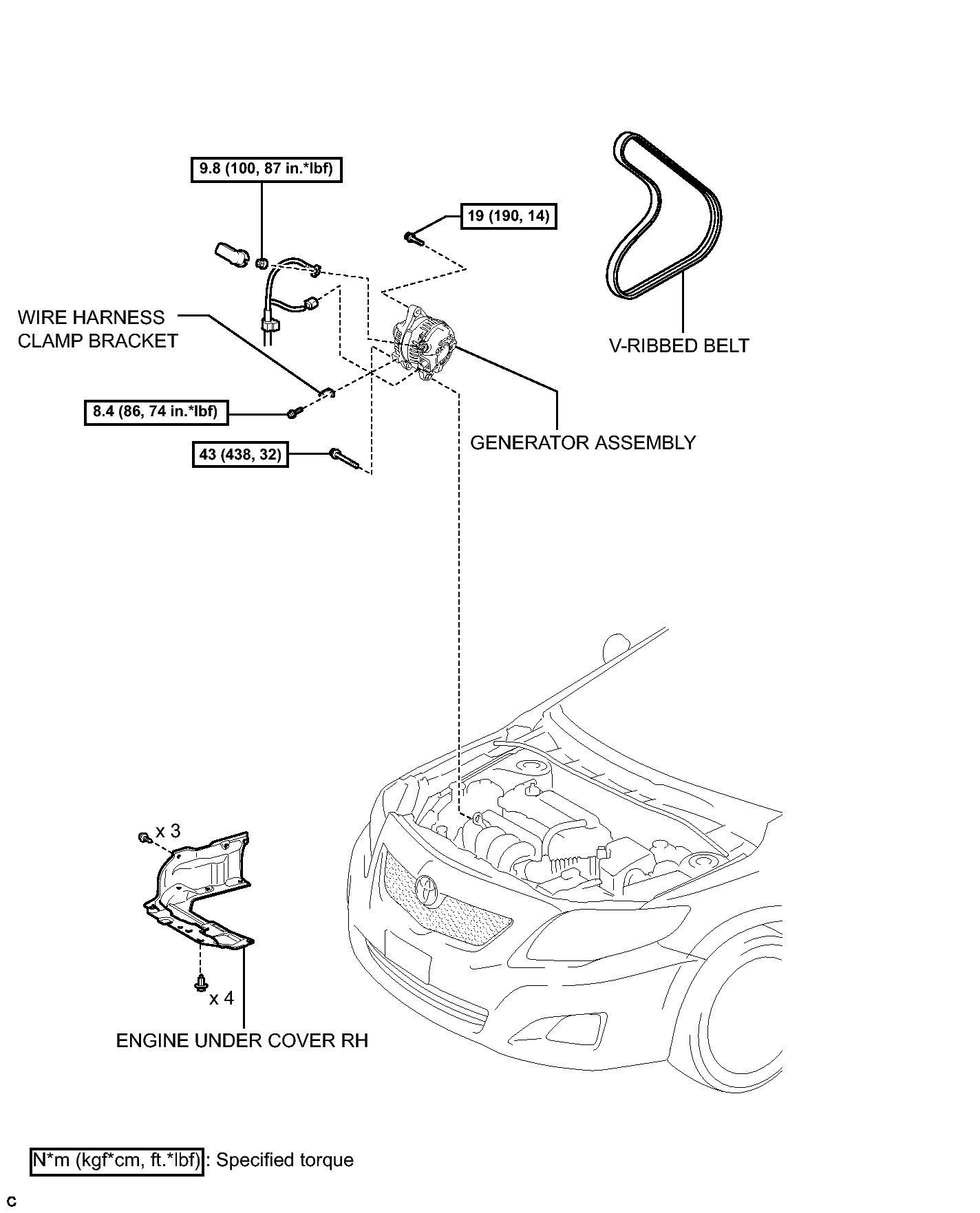

Fig 1: Identifying Generator Replacement Components With Torque Specifications (1 Of 2)
GTY194675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Generator Replacement Components With Torque Specifications (2 Of 2)
GTY293922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
