Front Door Lock: Components: Illustration

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

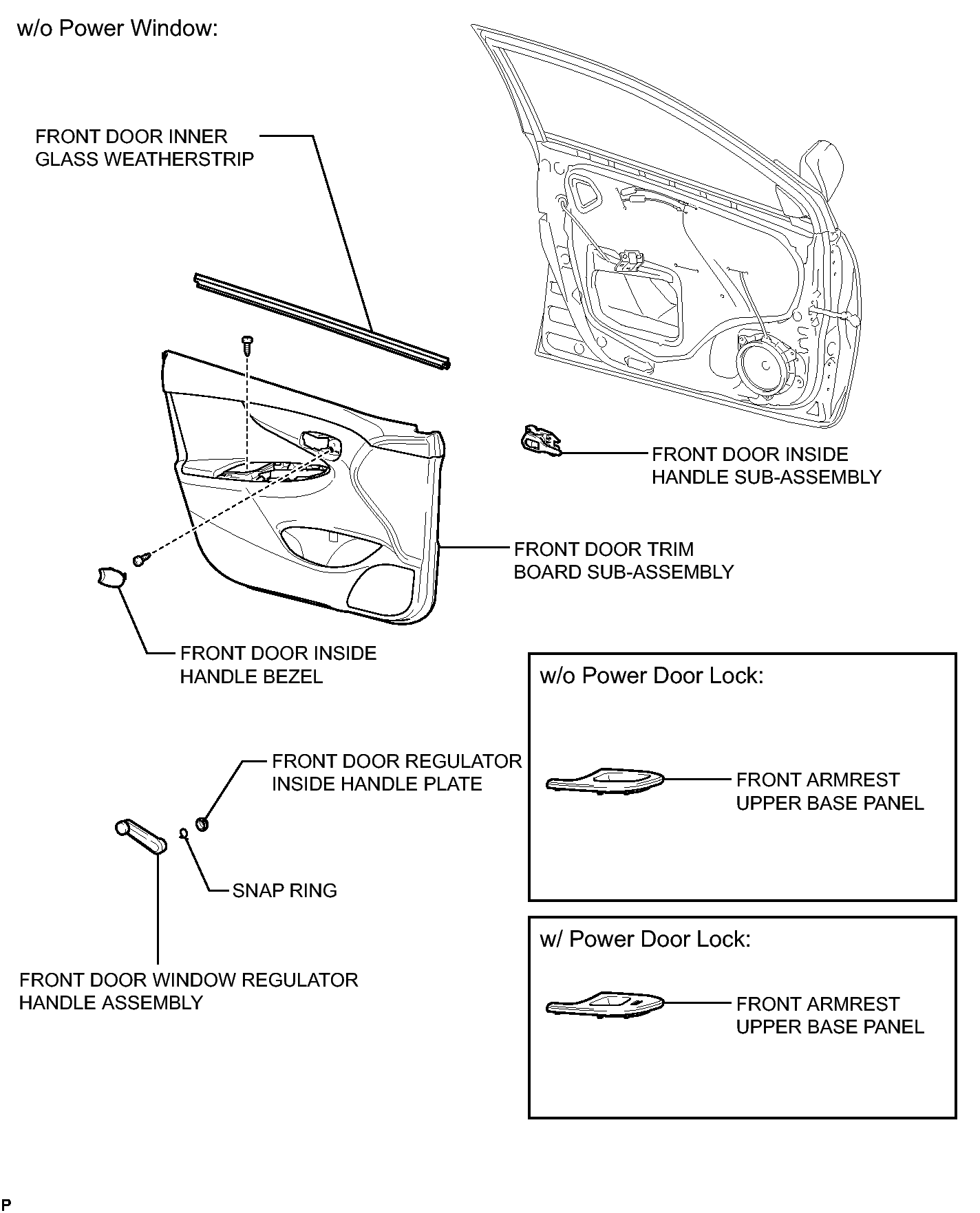

Fig 1: Identifying Front Door Lock Replacement Components (1 Of 4)
GTY186017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

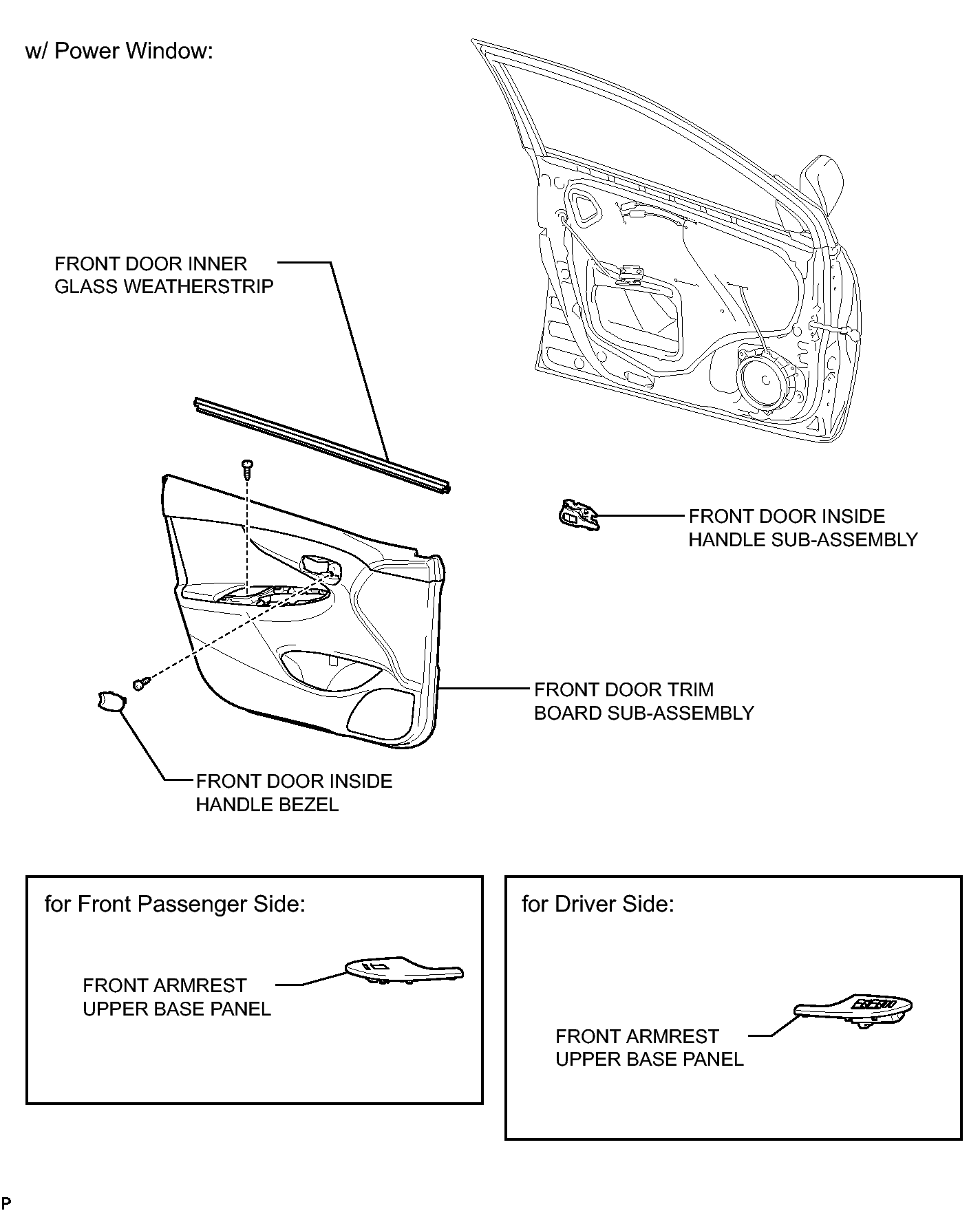

Fig 1: Identifying Front Door Lock Replacement Components (2 Of 4)
GTY200219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

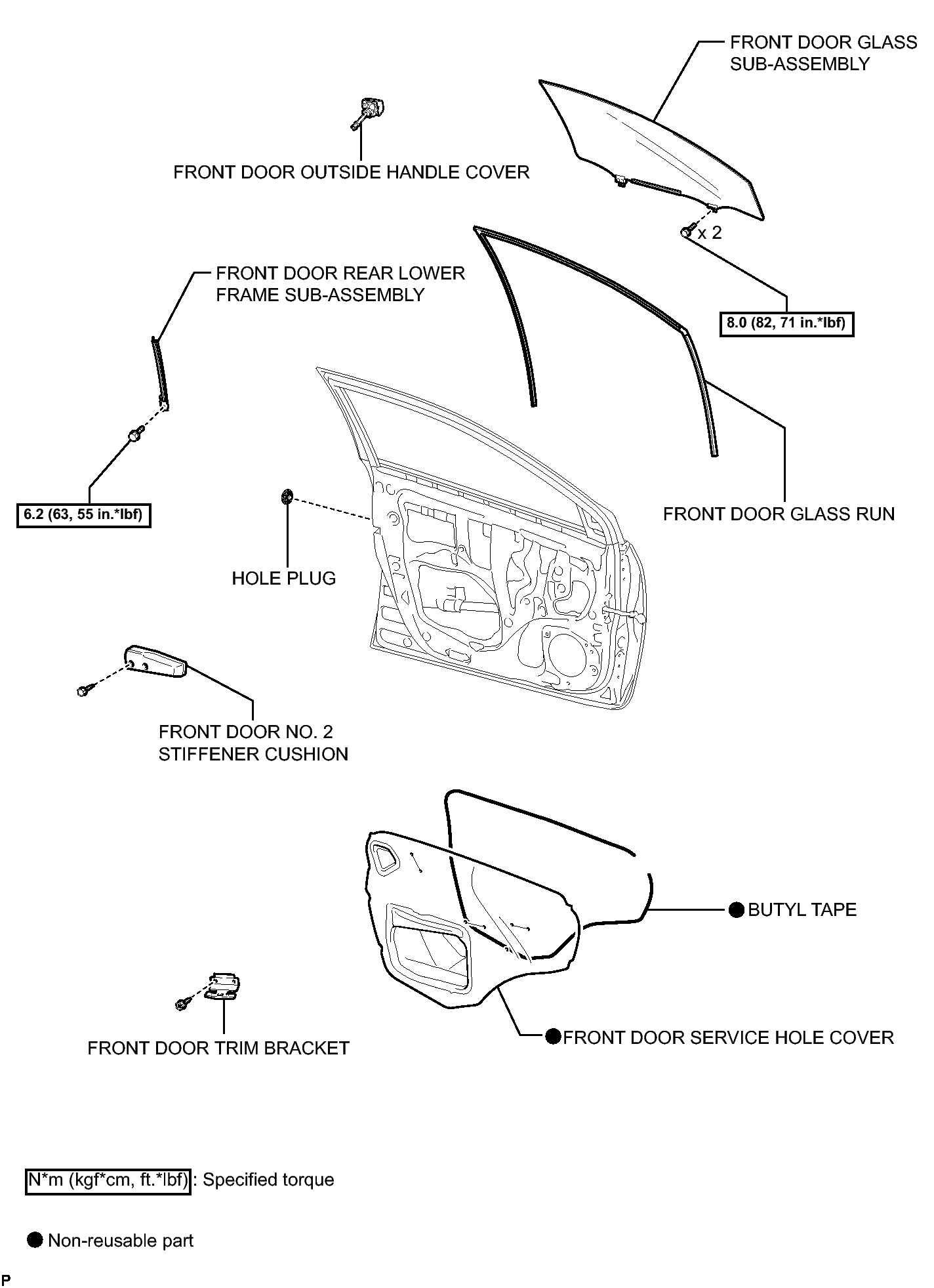

Fig 1: Identifying Front Door Lock Replacement Components With Torque Specifications (3 Of 4)
GTY200221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

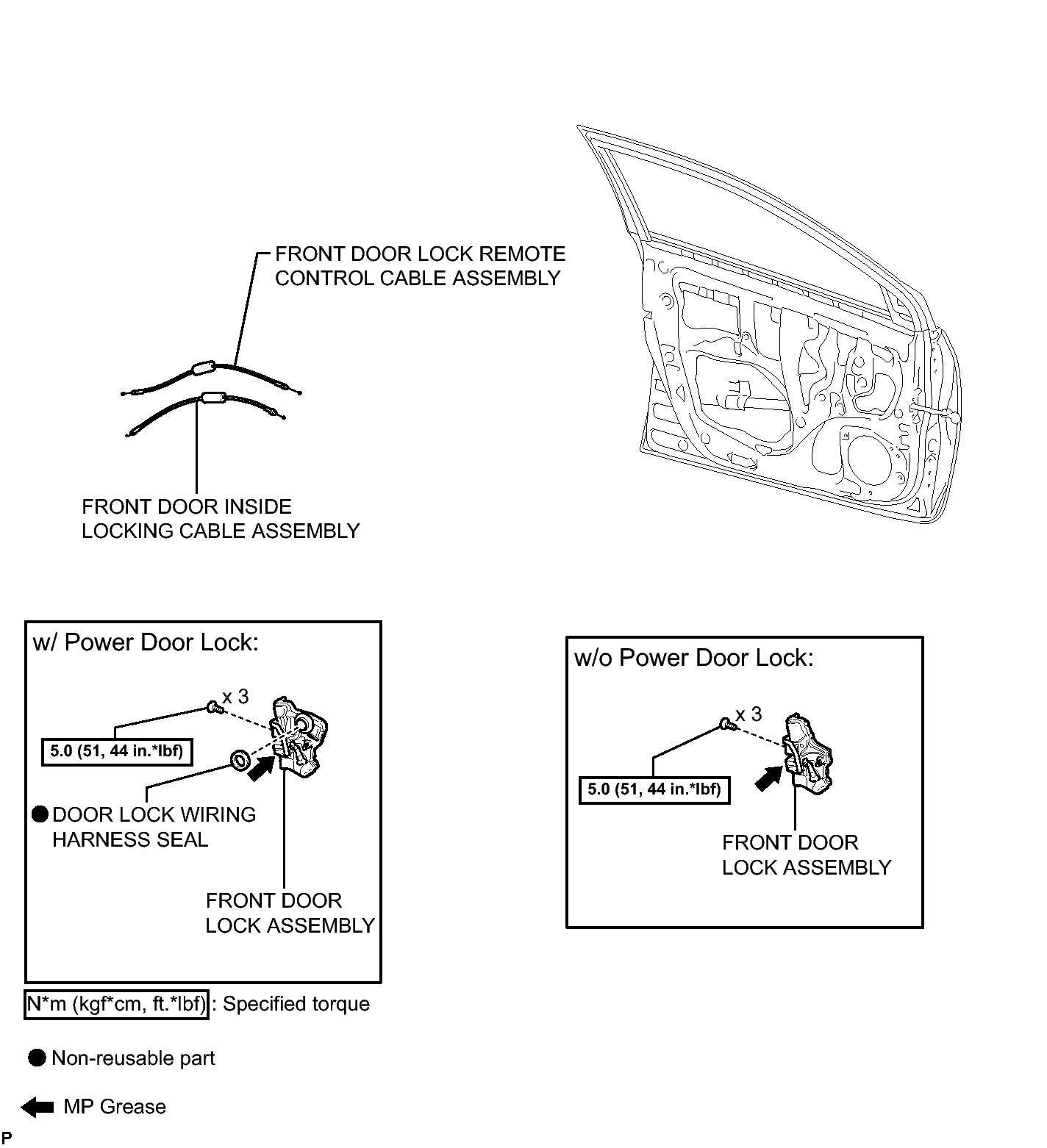

Fig 1: Identifying Front Door Lock Replacement Components With Torque Specifications (4 Of 4)
GTY200222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
