DTC U0073: Control Module Communication Bus OFF; DTC U0100: Lost Communication with ECM / PCM; DTC U0123: Lost Communication with Yaw Rate Sensor Module; DTC U0124: Lost Communication with Lateral Acceleration Sensor Module; DTC U0126: Lost Communication with Steering Angle Sensor Module: Wiring Diagram

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

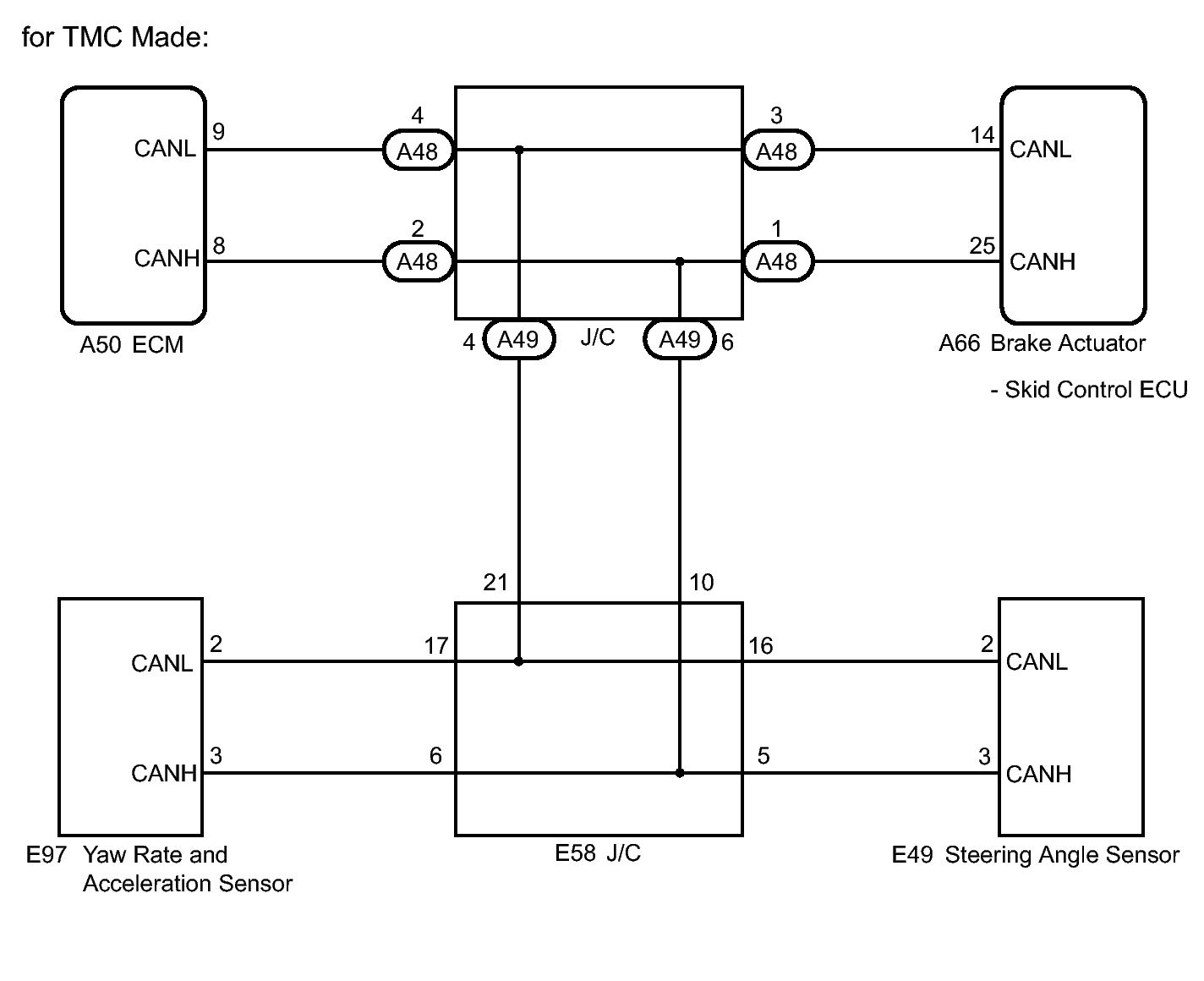

Fig 1: Identifying Control Module Communication Bus OFF Wiring Diagram (1 Of 2)
GTY293287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

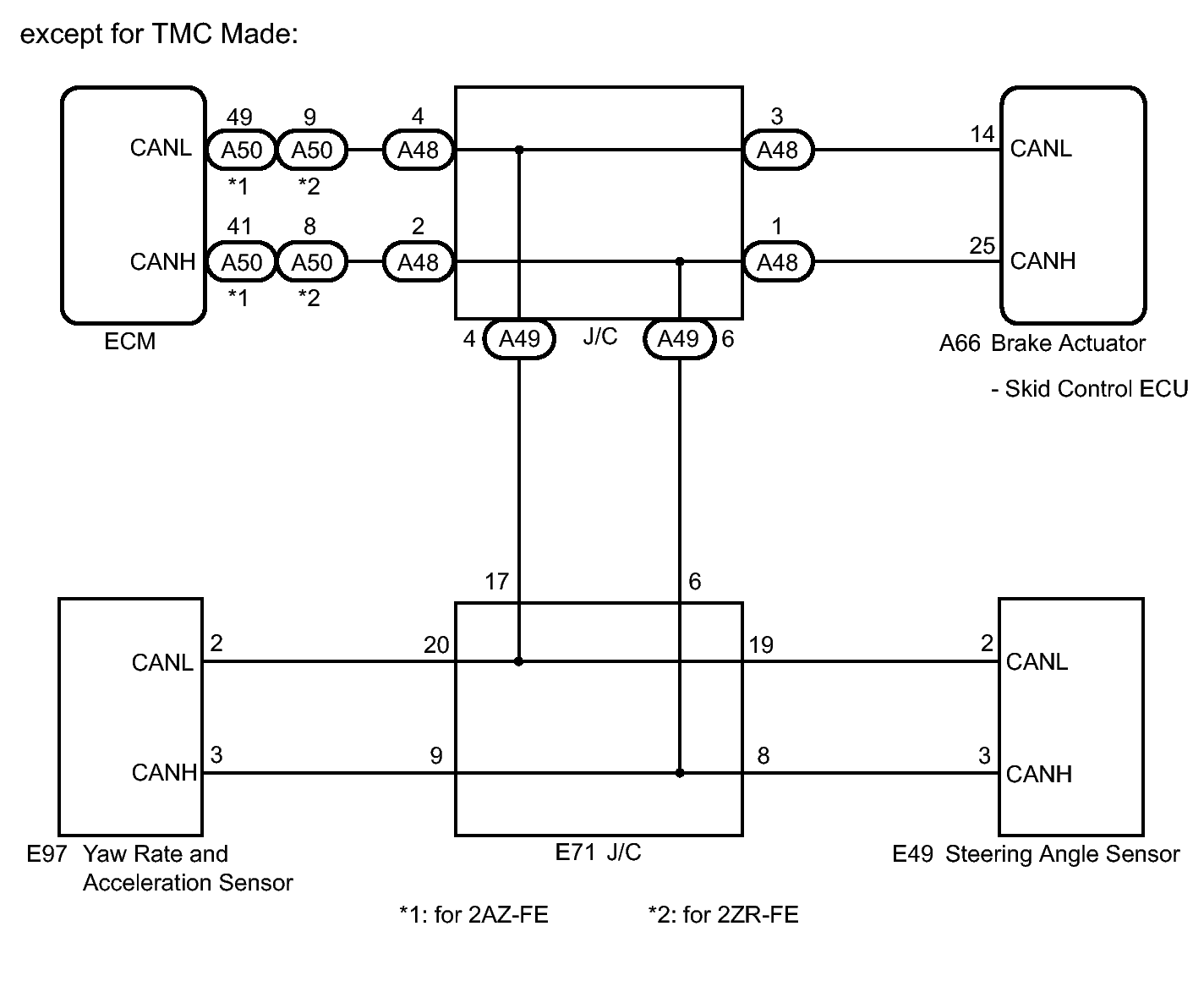

Fig 2: Identifying Control Module Communication Bus OFF Wiring Diagram (2 Of 2)
GTY318748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
