Throttle Body: Removal: Removal

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

DRAIN ENGINE COOLANT . Refer to REPLACEMENT - Step 1
REMOVE NO. 2 CYLINDER HEAD COVER . Refer to REMOVAL - Step 10
REMOVE AIR CLEANER CAP SUB-ASSEMBLY
1. Disconnect the mass air flow meter connector and the 2 wire harness clamps.

  Fig 1: Locating Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the ventilation hose and loosen the hose clamp.

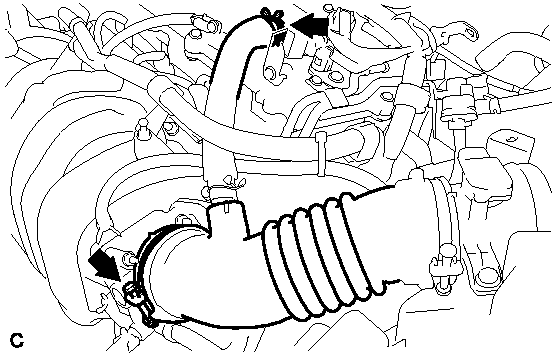

  Fig 2: Locating Ventilation Hose And Hose Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Release the 2 clamps and remove the air cleaner cap sub-assembly with hose.

  Fig 3: Locating Clamps And Air Cleaner Cap Sub-Assembly With Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE THROTTLE BODY ASSEMBLY
1. Disconnect the throttle body connector and the 2 water by-pass hoses.

  Fig 4: Locating Throttle Body Connector And Water By-Pass Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and 2 nuts, and remove the throttle body assembly.

  Fig 5: Locating Bolts And Nuts And Throttle Body Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the gasket from the intake manifold.

  Fig 6: Locating Intake Manifold Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
