REAR SPEED SENSOR (for 4WD): Components: Illustration

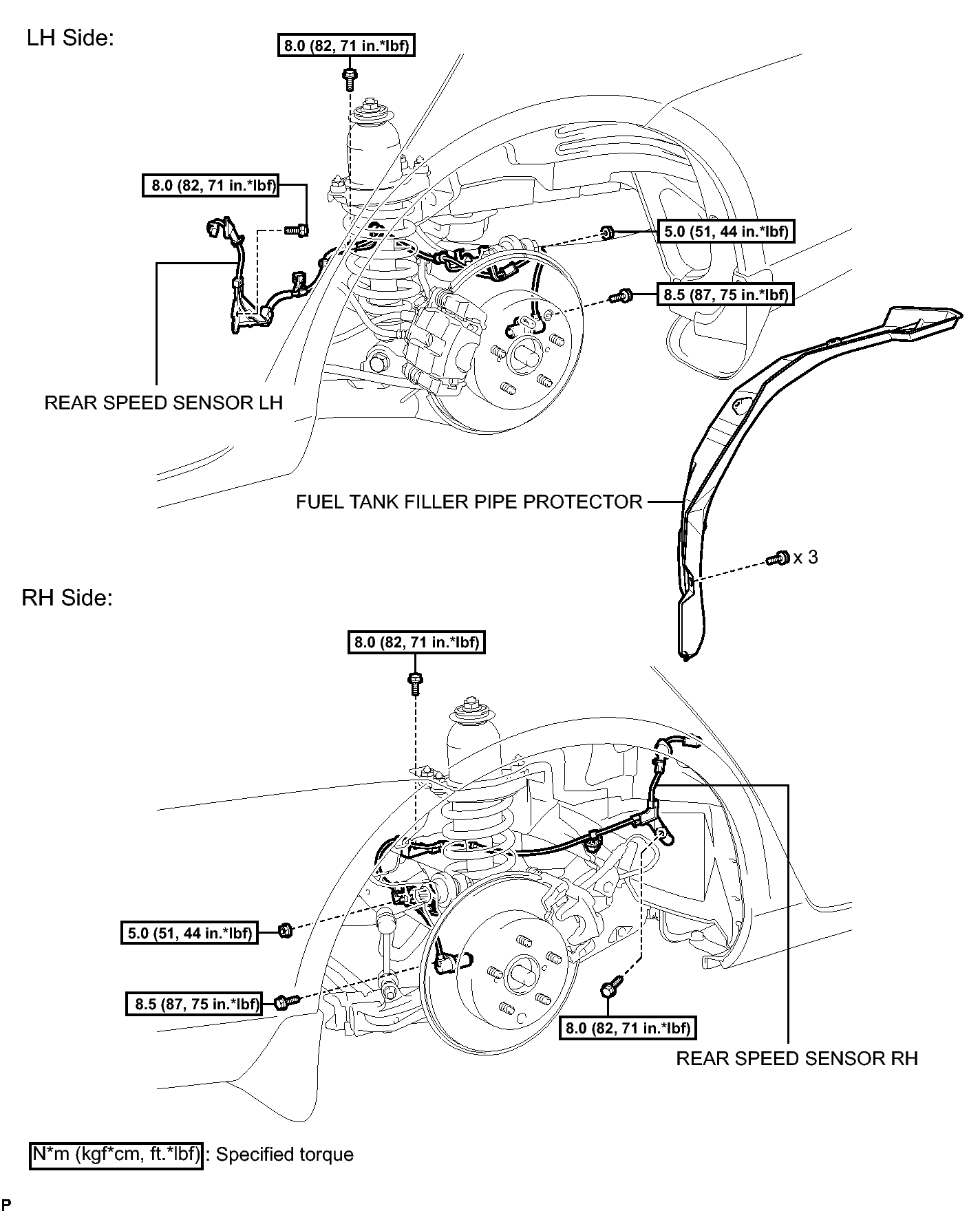

Fig 1: Identifying Rear Speed Sensor Replacement Components (4WD) With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Rear Speed Sensor Replacement Components (4WD) With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Rear Speed Sensor Replacement Components (4WD) With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
