System Diagram

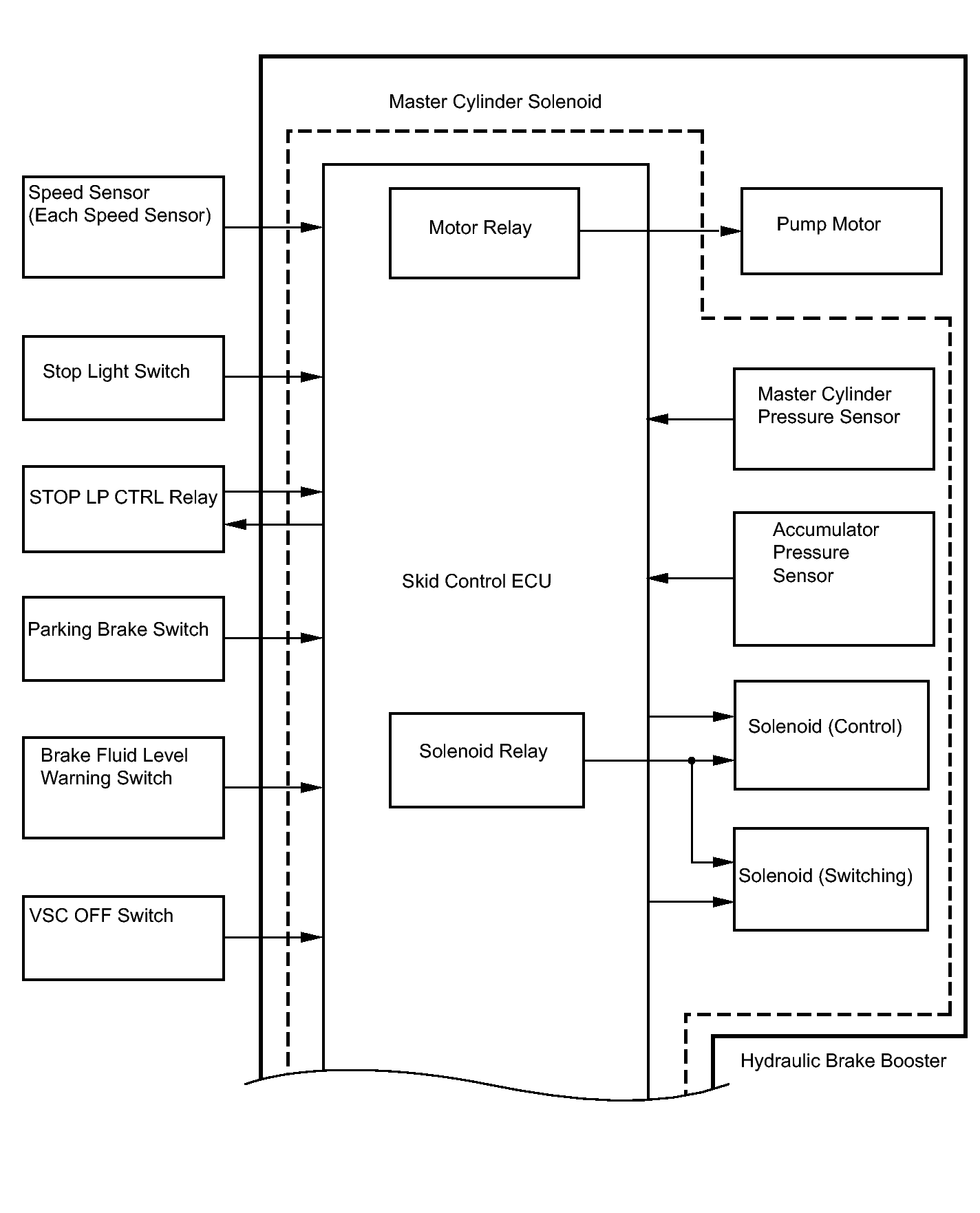

Fig 1: Vehicle Stability Control System Diagram (1 Of 3)
GTY308811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

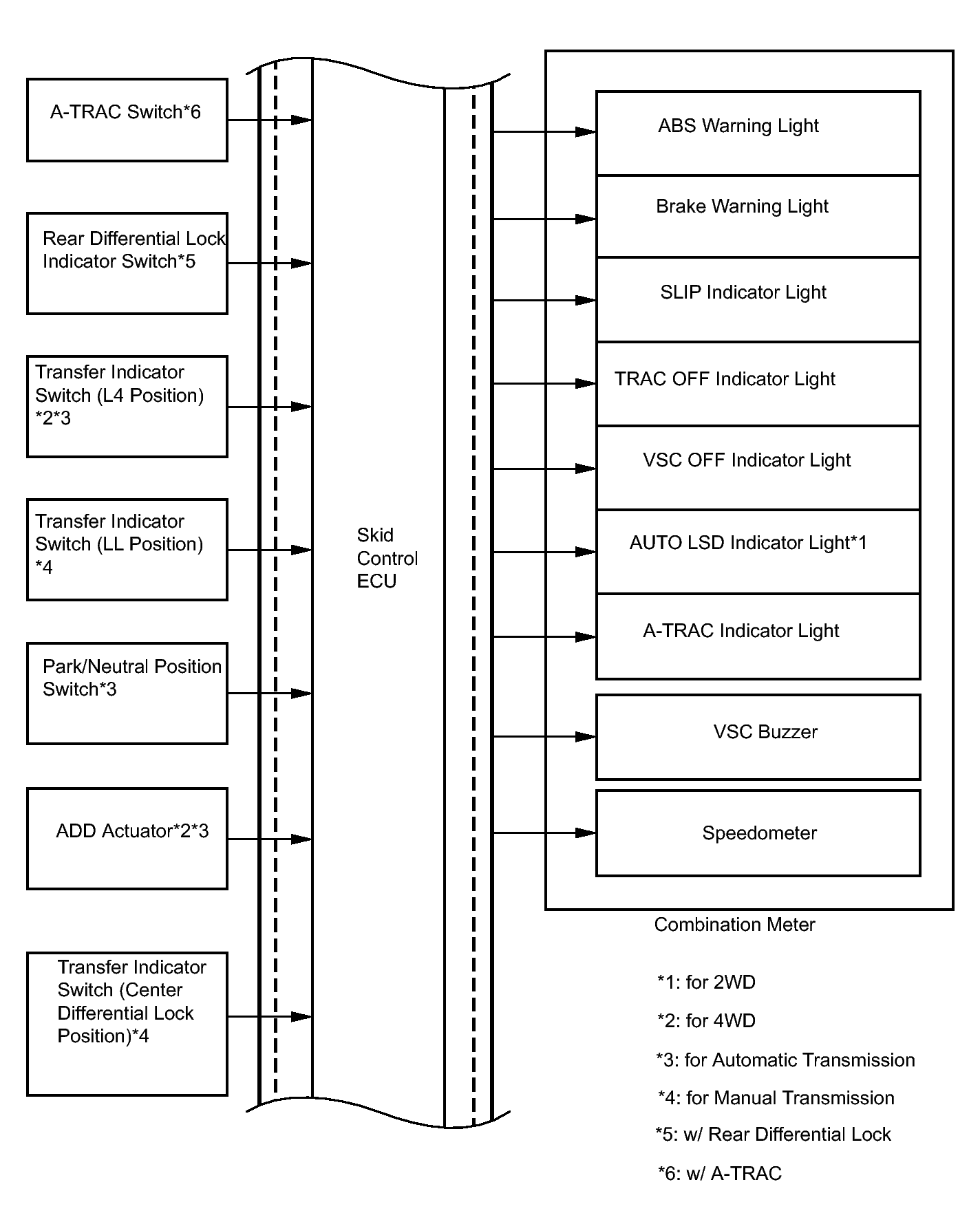

Fig 2: Vehicle Stability Control System Diagram (2 Of 3)
GTY309327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Vehicle Stability Control System Diagram (3 Of 3)
GTY309796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Transmitting ECU (Transmitter) Receiving ECU Signals Communication Method
ECM Skid control ECU
  • Engine speed signal
  • Accelerator pedal position signal
  • Intake air temperature signal
  • Shift position signal
  • TC terminal status
 CAN communication system
Skid control ECU ECM
  • Yaw rate and deceleration signal
  • VSC data signal
  • Wheel speed signal
 CAN communication system
Skid control ECU Combination meter
  • Warning/indicator light signal
  • Vehicle speed signal
 CAN communication system
Yaw rate and deceleration sensor Skid control ECU Yaw rate and deceleration signal CAN communication system
Steering angle sensor Skid control ECU Steering angle signal CAN communication system
