System Diagram
WARNING: This page is about a different car, the 2012 Lexus GX 460. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 TEXT IN ILLUSTRATION

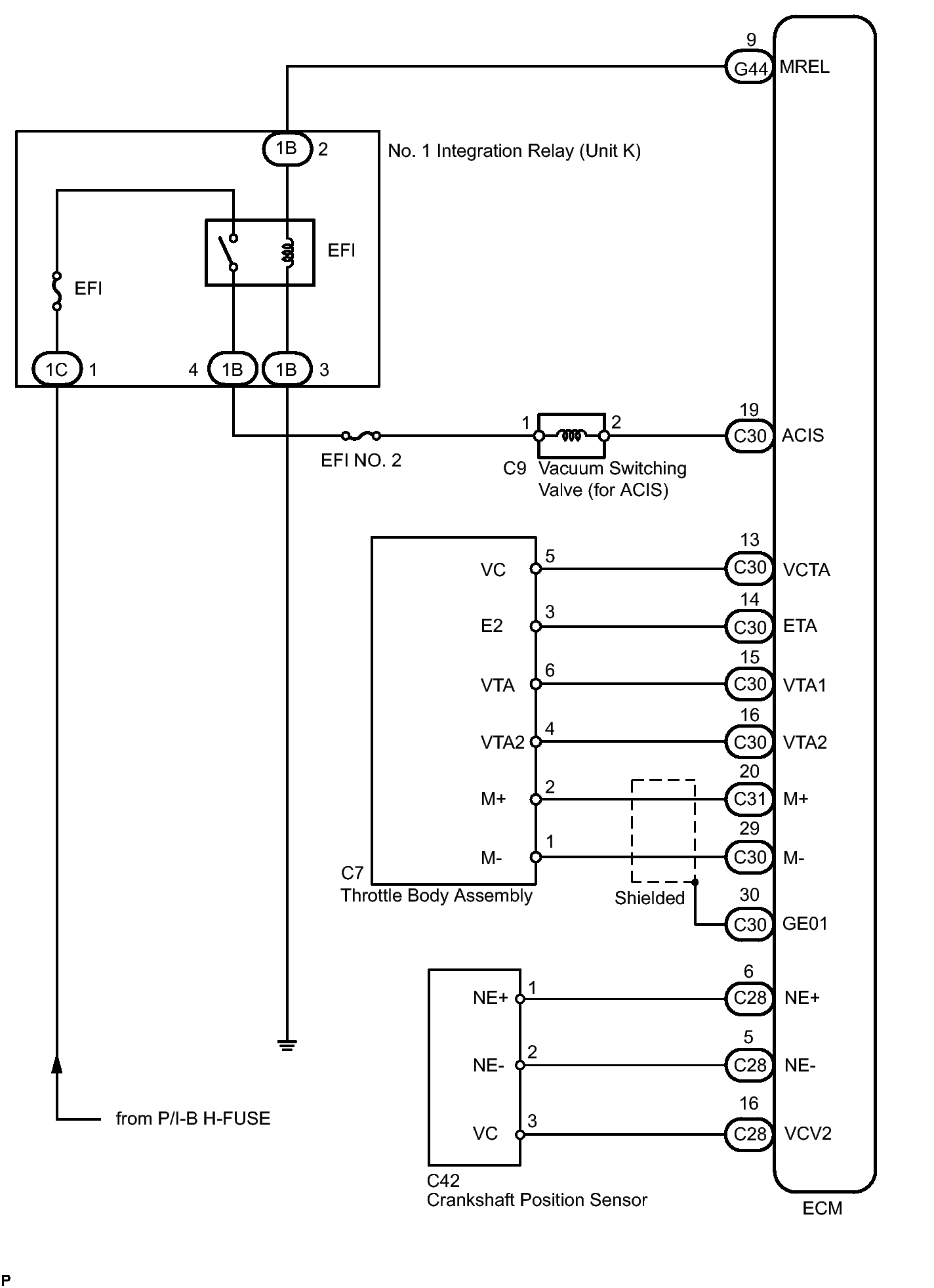

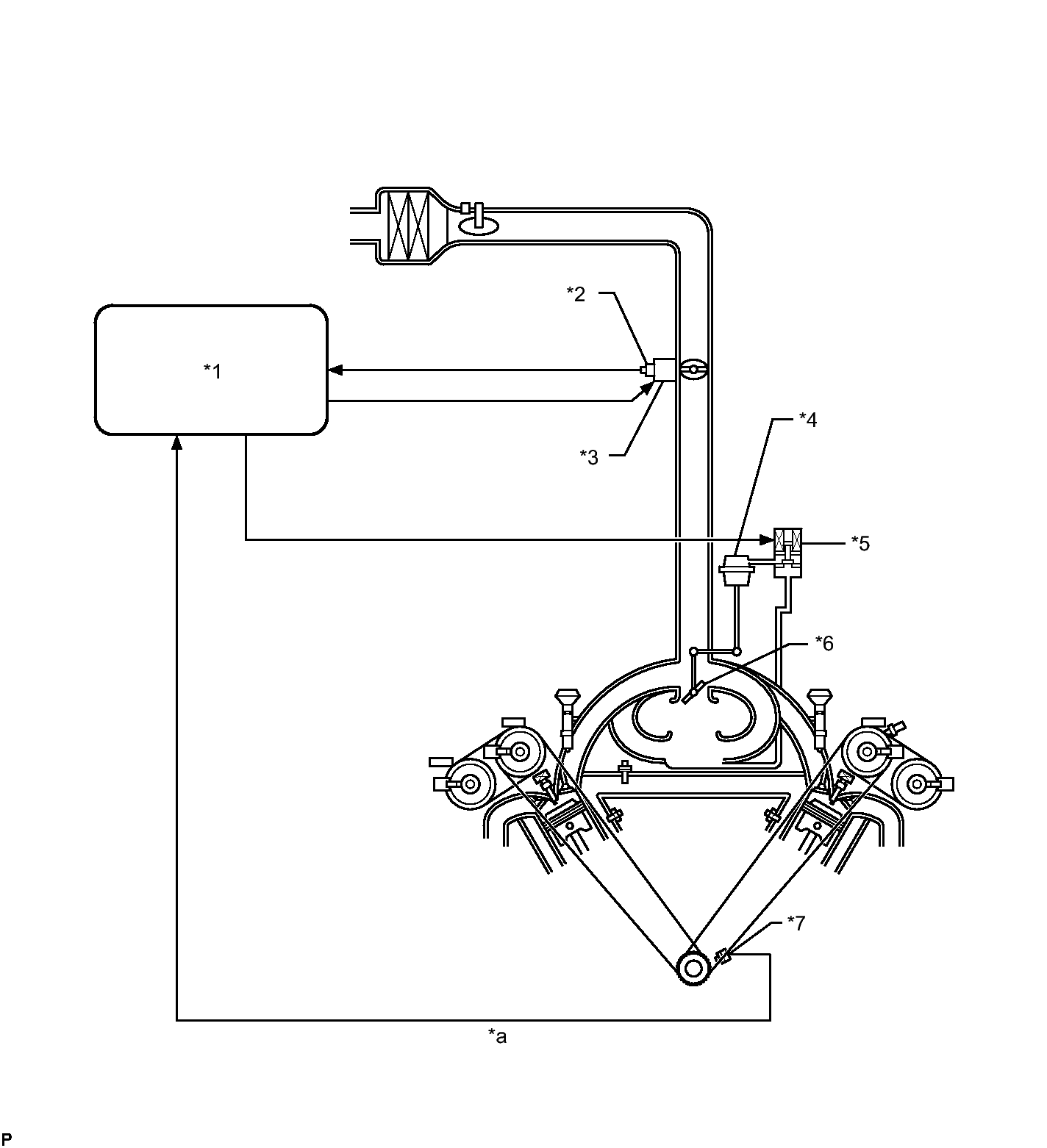

| *1 |
ECM |
*2 |
Throttle Position Sensor |
| *3 |
Throttle Body Assembly |
*4 |
Intake Air Control Valve Actuator |
| *5 |
Vacuum Switching Valve (for ACIS) |
*6 |
Intake Air Control Valve |
| *7 |
Crankshaft Position Sensor |
- |
- |
| *a |
Engine Speed |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
