Section 48 (Air Conditioning System (Service Information)): Compressor: Components: Illustration

WARNING: This page is about a different car, the 2012 Lexus GX 460. However, it is still accessible from the selected car via links, so may be relevant.

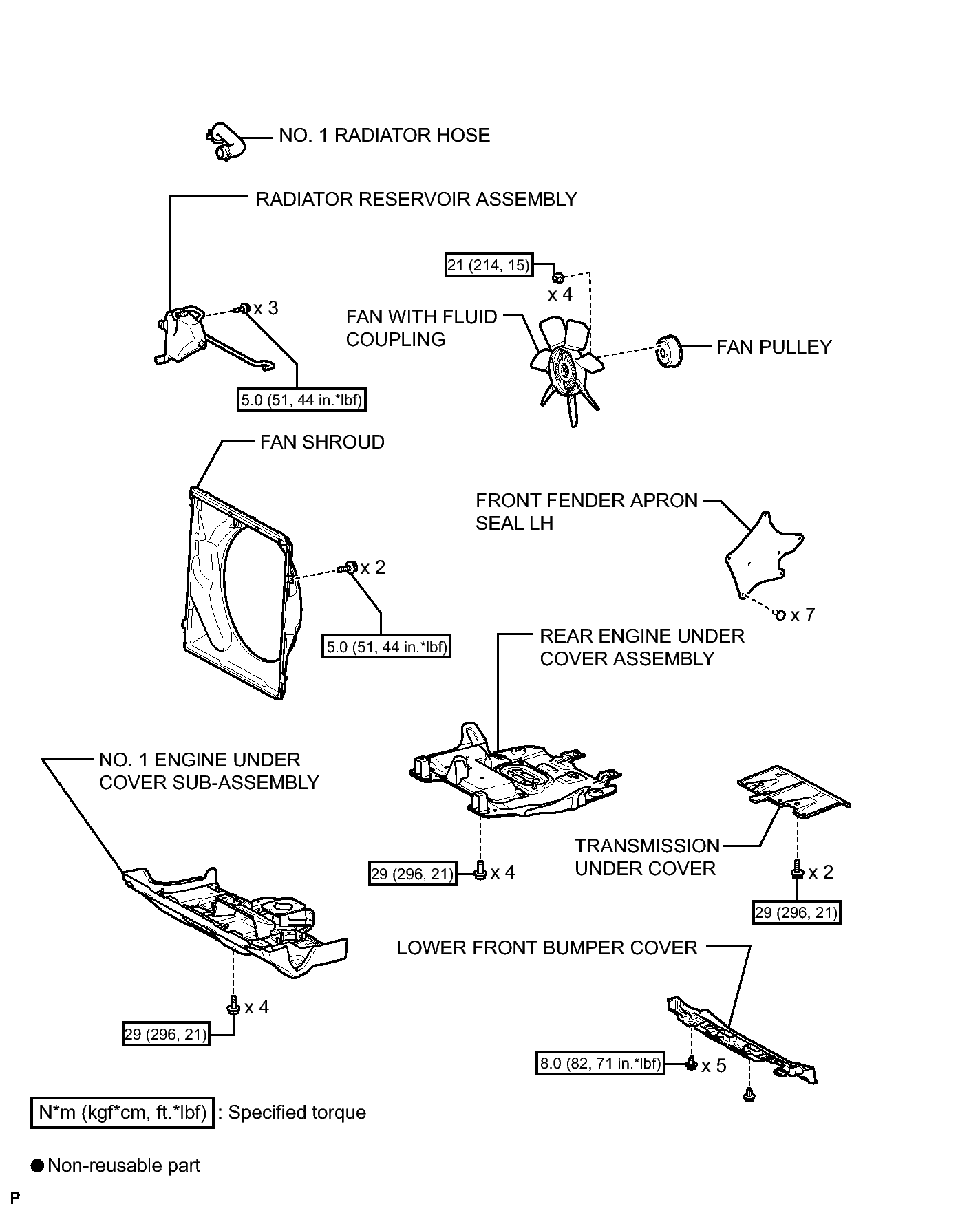

Fig 1: Identifying Compressor Replacement Components With Torque Specifications (1 Of 3)
GTY284729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

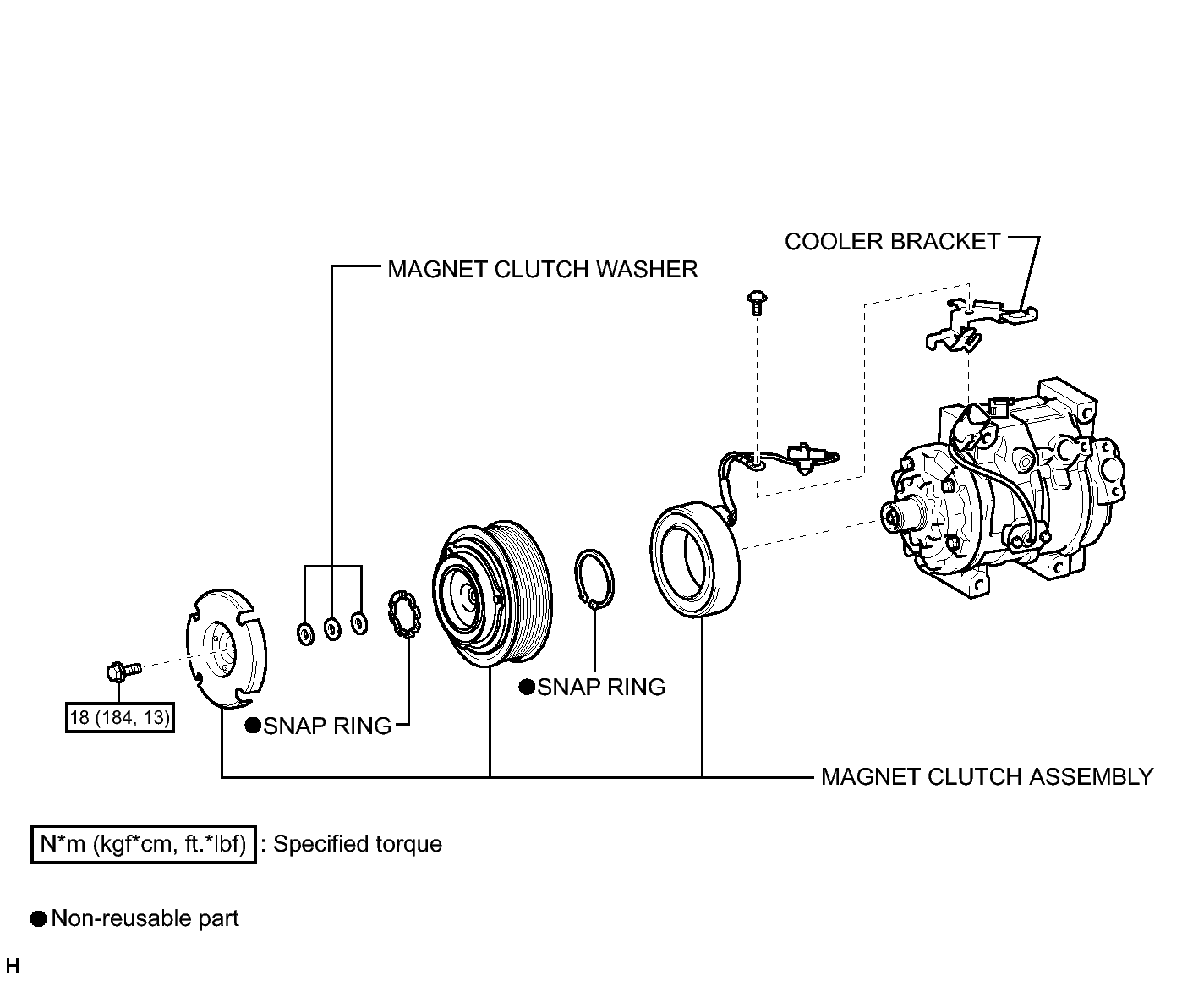

Fig 1: Identifying Compressor Replacement Components With Torque Specifications (2 Of 3)
GTY262419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

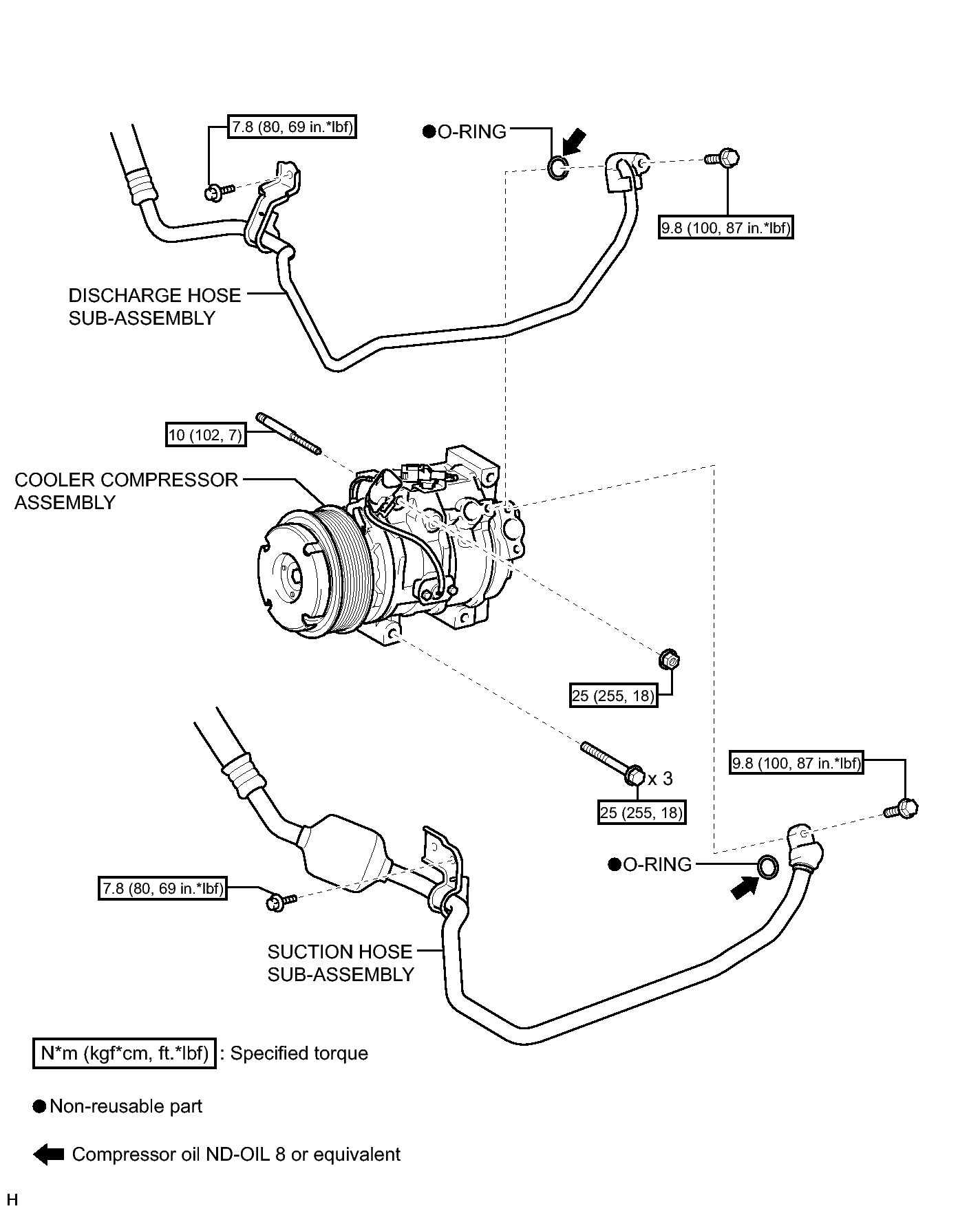

Fig 1: Identifying Compressor Replacement Components With Torque Specifications (3 Of 3)
GTY275413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
