Lane Recognition Camera Sensor: Removal: Removal

WARNING: This page is about a different car, the 2012 Lexus GX 460. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE MAP LIGHT ASSEMBLY . Refer to REMOVAL - Step 1
REMOVE FRONT ROOF TOP GARNISH

Fig 1: Identifying Front Roof Top Garnish Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Detach the clip and 2 claws and remove the front roof top garnish.
  NOTE:
  When removing the front roof top garnish, do not apply force to the lane recognition camera sensor assembly area labeled "X".
REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER . Refer to REMOVAL - Step 3
REMOVE RAIN SENSOR COVER . Refer to REMOVAL - Step 1
REMOVE LANE RECOGNITION CAMERA SENSOR ASSEMBLY
NOTE:
Do not apply force to the lane recognition camera sensor assembly area labeled "X".

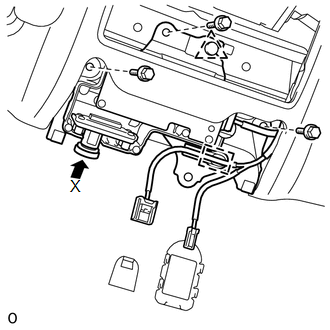

Fig 2: Identifying Lane Recognition Camera Sensor Assembly Bolts, Clamps, Clips & Precaution
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect all the connectors.
2. Detach the clamp.
3. Remove the 3 bolts.
4. Detach the clip and remove the lane recognition camera sensor assembly.
5. Remove the roof side inner garnish clip from the lane recognition camera sensor assembly.
  NOTE:
  When removing the roof side inner garnish clip, replace it with a new one.
