Parts Location: Illustration

WARNING: This page is about a different car, the 2012 Lexus GX 460. However, it is still accessible from the selected car via links, so may be relevant.

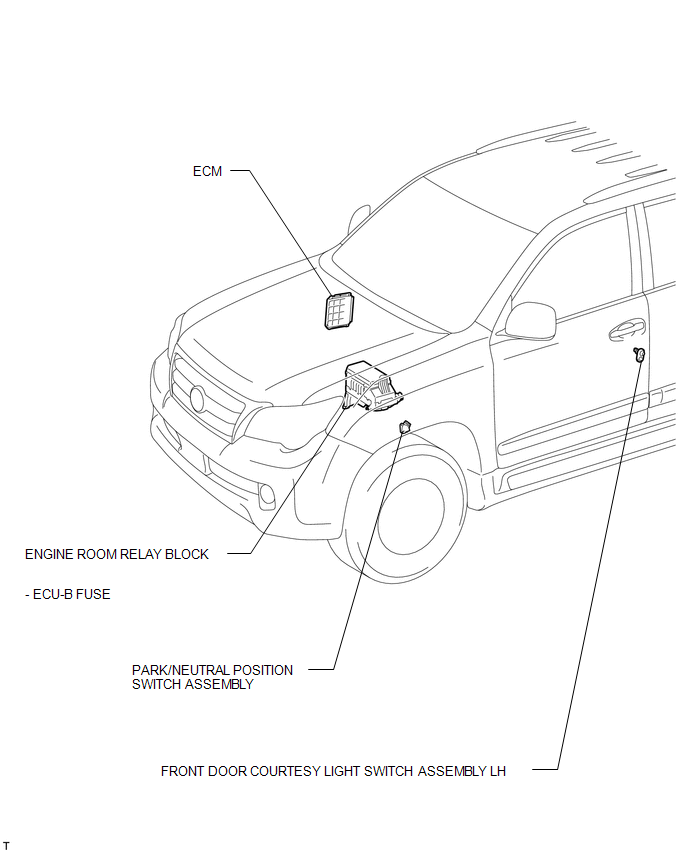

Fig 1: Identifying Front Power Seat Control System Components Location (1 Of 4)
GTY279667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

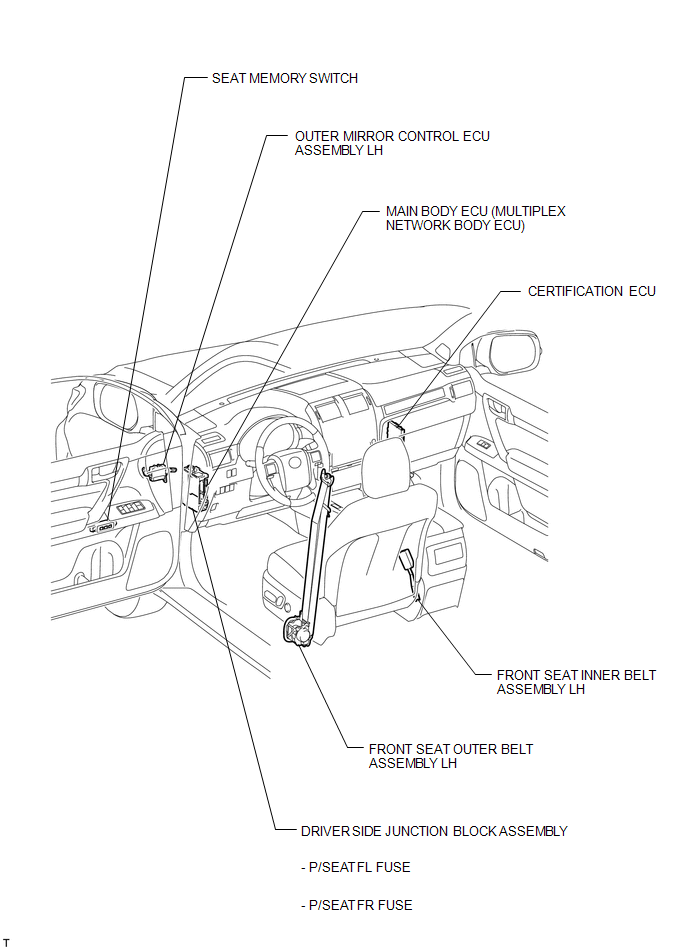

Fig 1: Identifying Front Power Seat Control System Components Location (2 Of 4)
GTY282965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

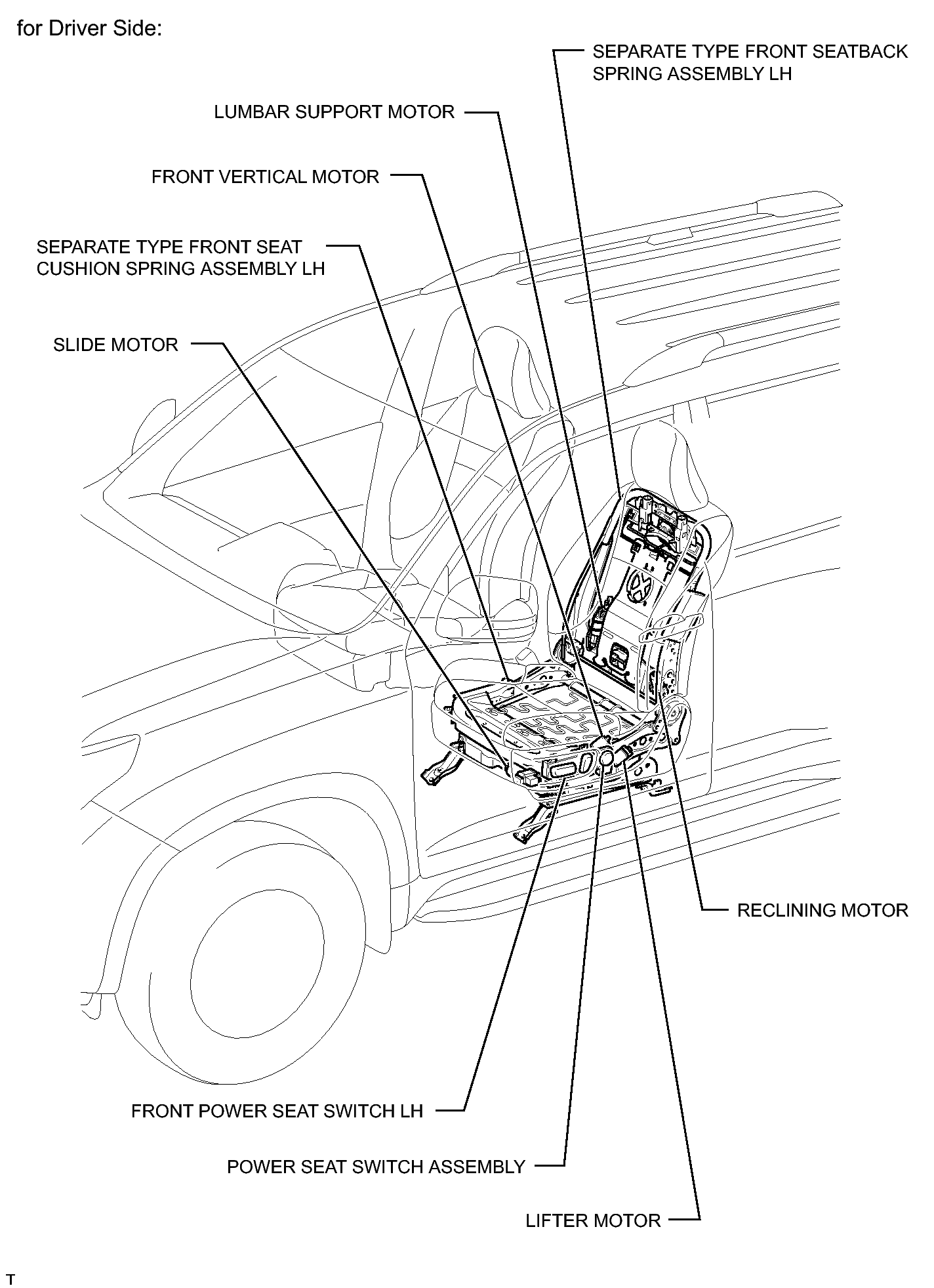

Fig 1: Identifying Front Power Seat Control System Components Location (3 Of 4)
GTY264328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

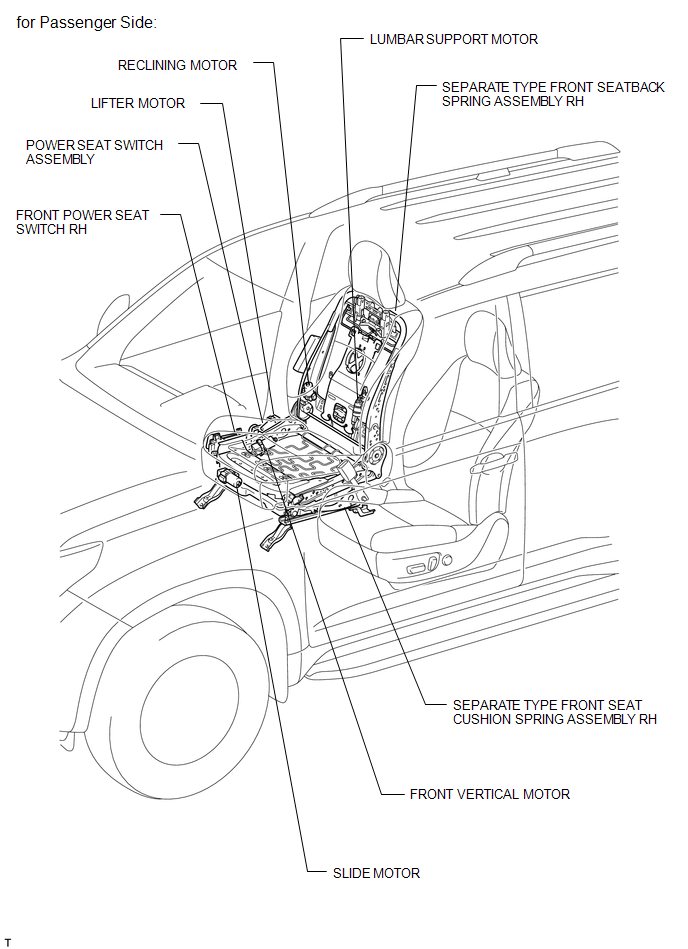

Fig 1: Identifying Front Power Seat Control System Components Location (4 Of 4)
GTY271915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
