Parts Location: Illustration

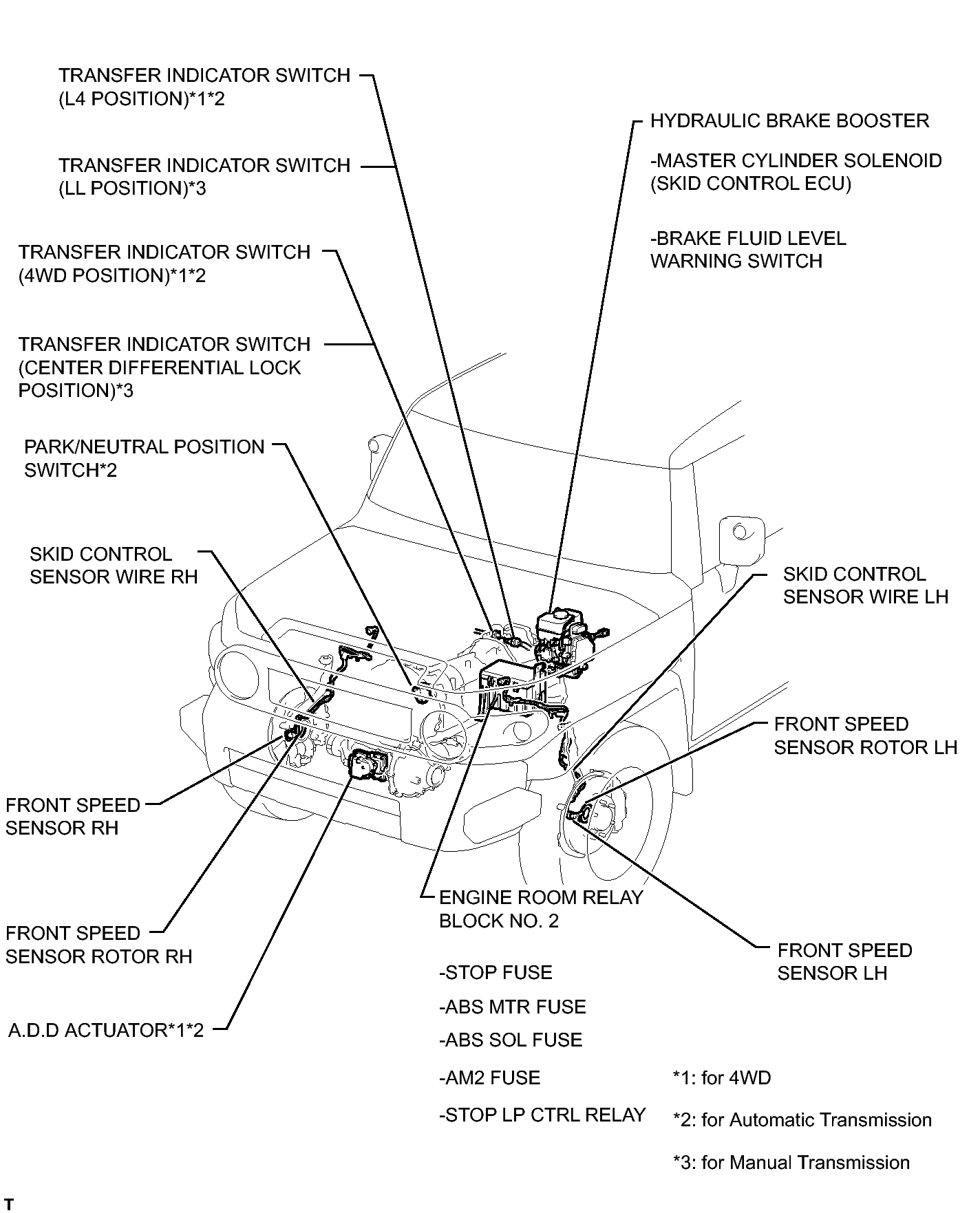

Fig 1: Identifying Vehicle Stability Control System Component Locations (1 Of 3)
GTY308925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

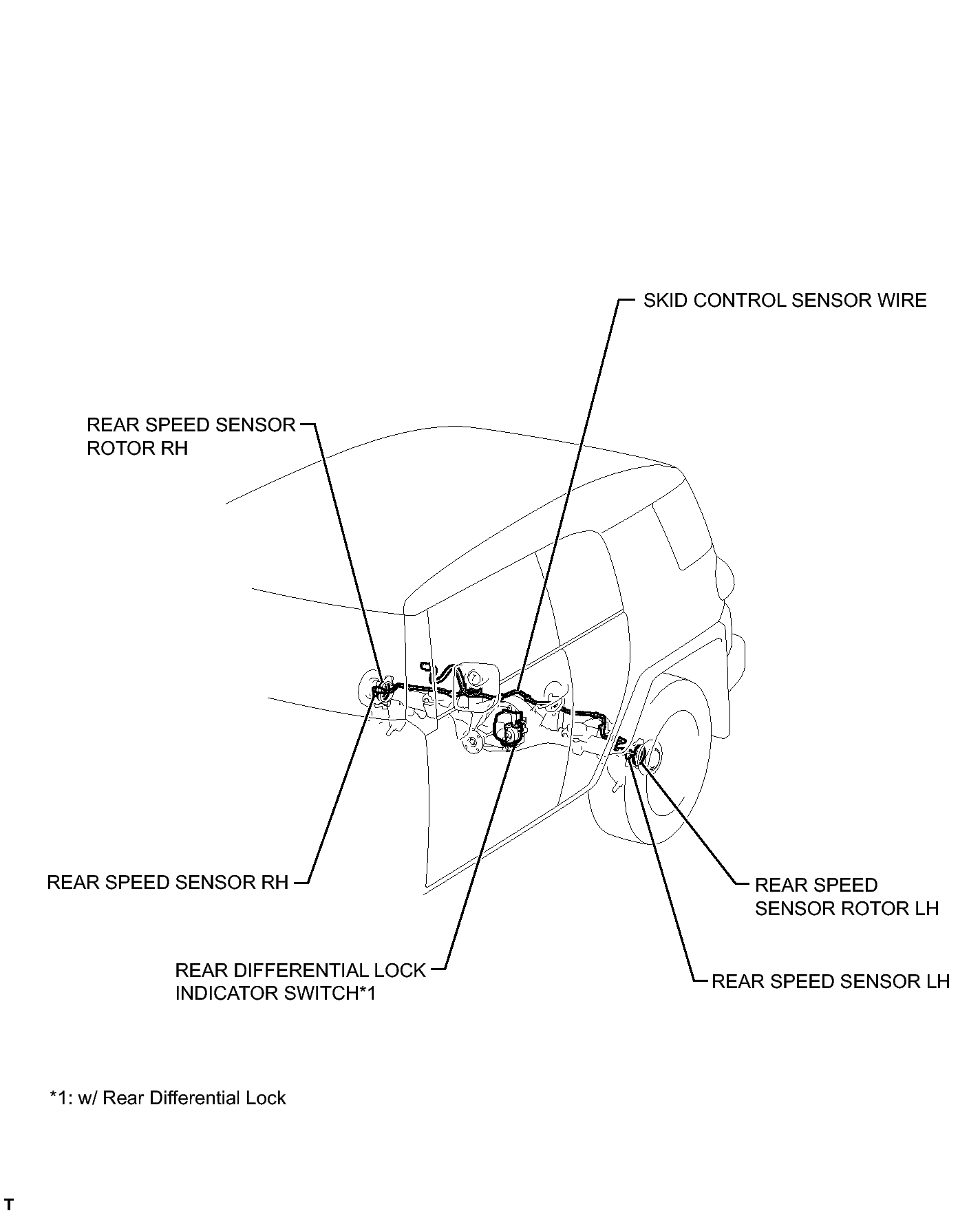

Fig 1: Identifying Vehicle Stability Control System Component Locations (2 Of 3)
GTY309308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

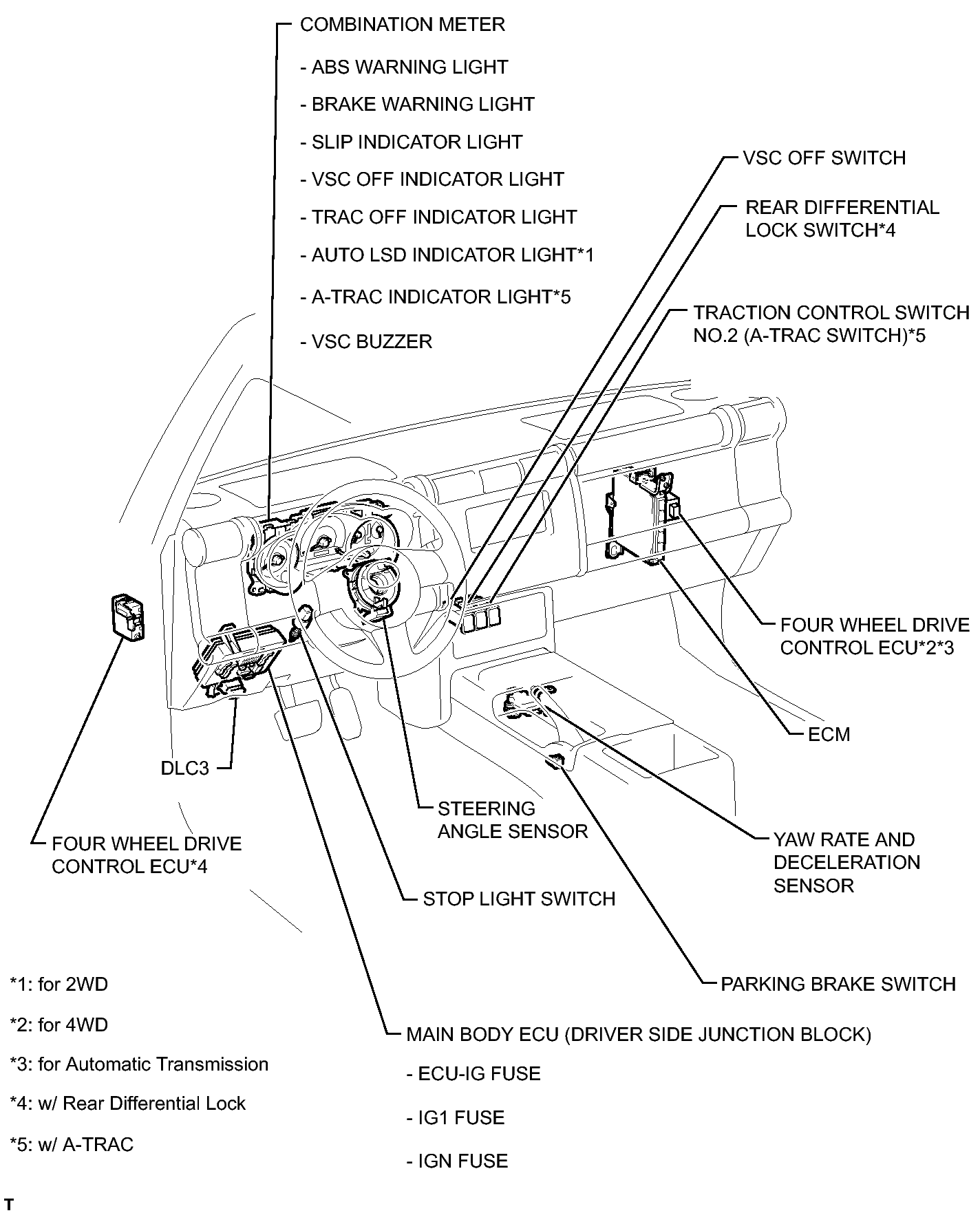

Fig 1: Identifying Vehicle Stability Control System Component Locations (3 Of 3)
GTY308547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
