System Diagram

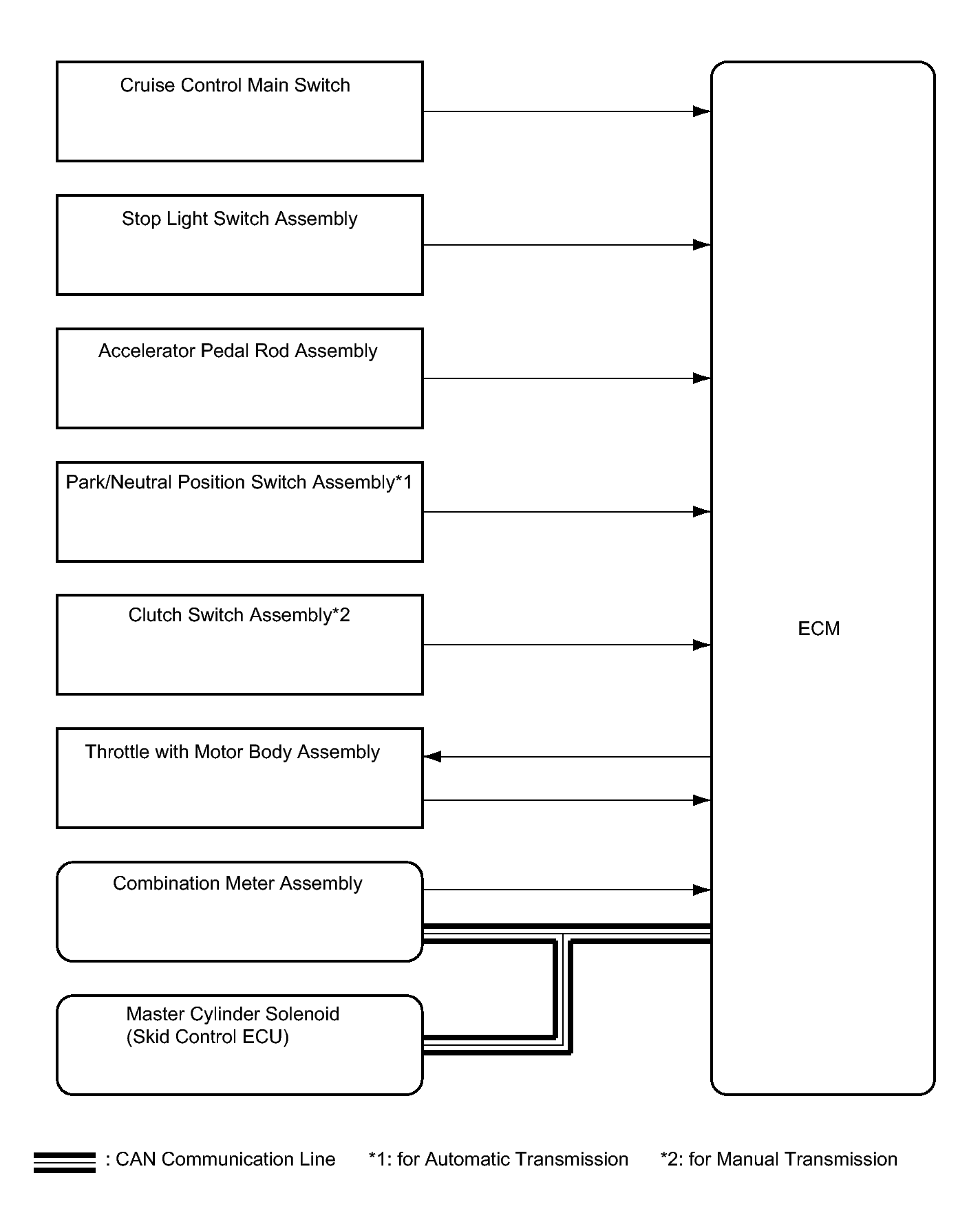

Fig 1: Cruise Control System Circuit Diagram
GTY308431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
ECM Combination Meter Assembly Cruise main indicator light signal CAN
Skid Control ECU ECM Vehicle stability control system operation signal CAN
