Front Seat Side Airbag Assembly: Components: Illustration

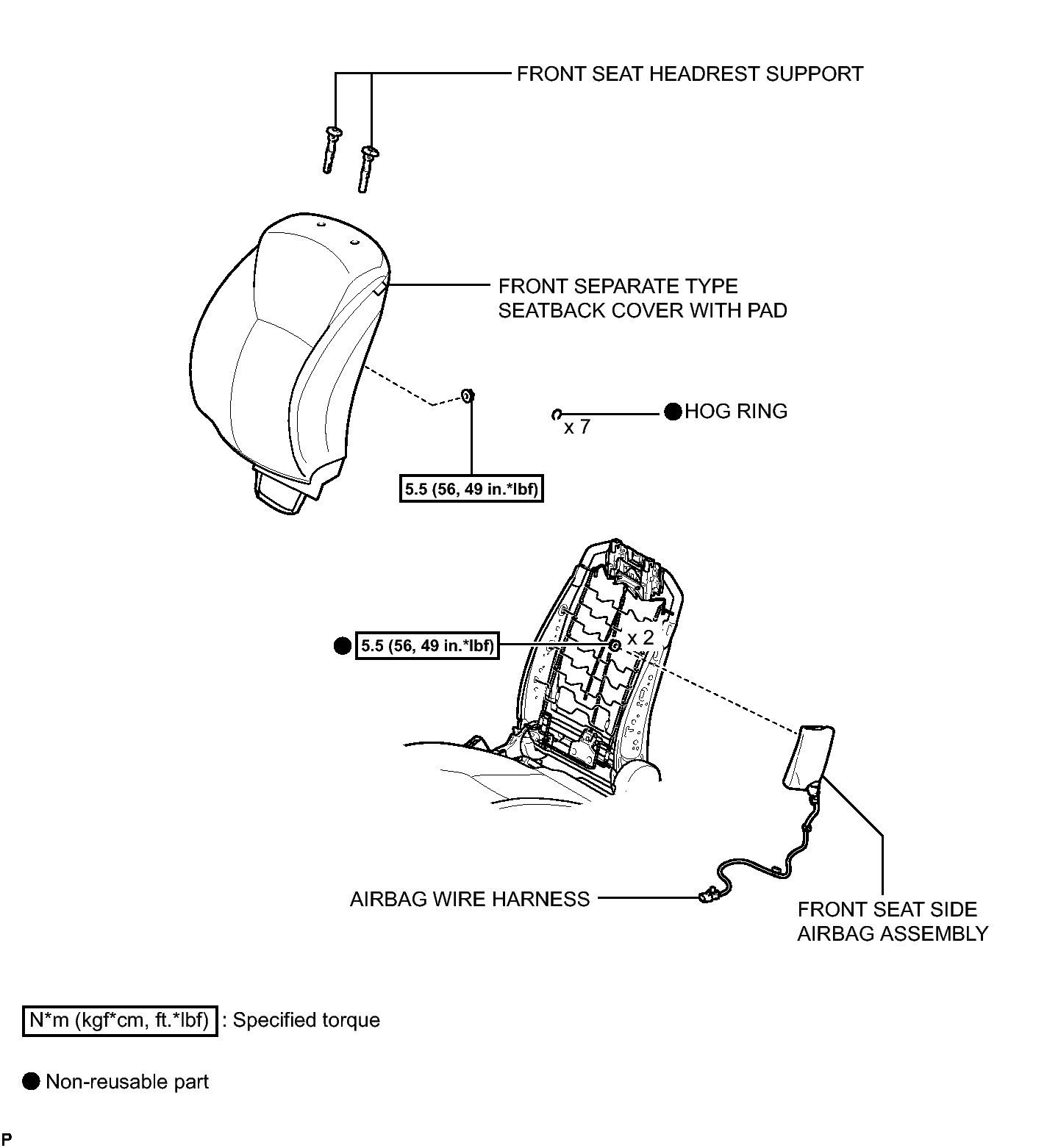

Fig 1: Identifying Front Seat Side Airbag Assembly Replacement Components With Torque Specifications
GTY291073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
