System Diagram

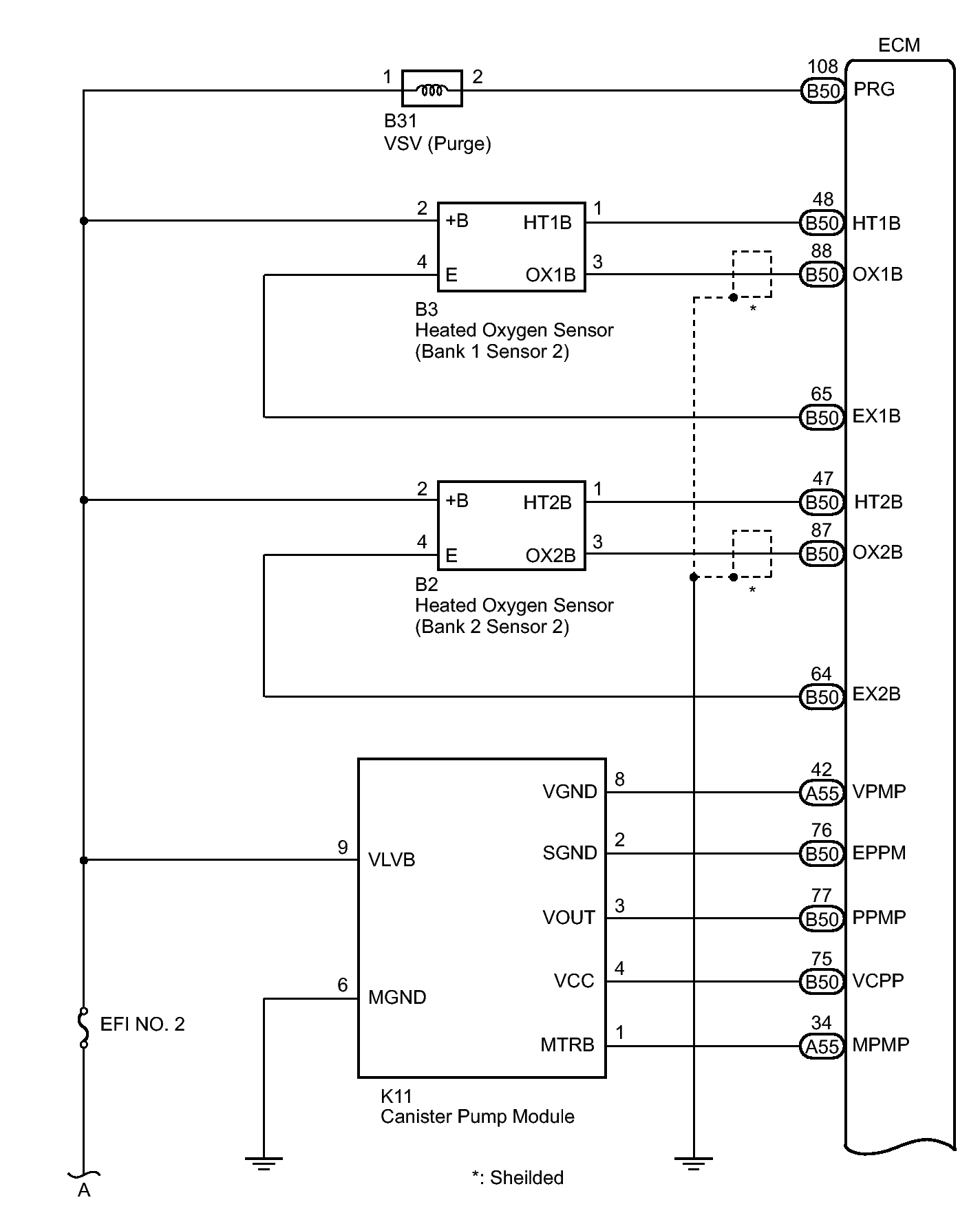

Fig 1: Identifying Emission Control System Circuit Diagram (1 Of 2)
GTY335614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

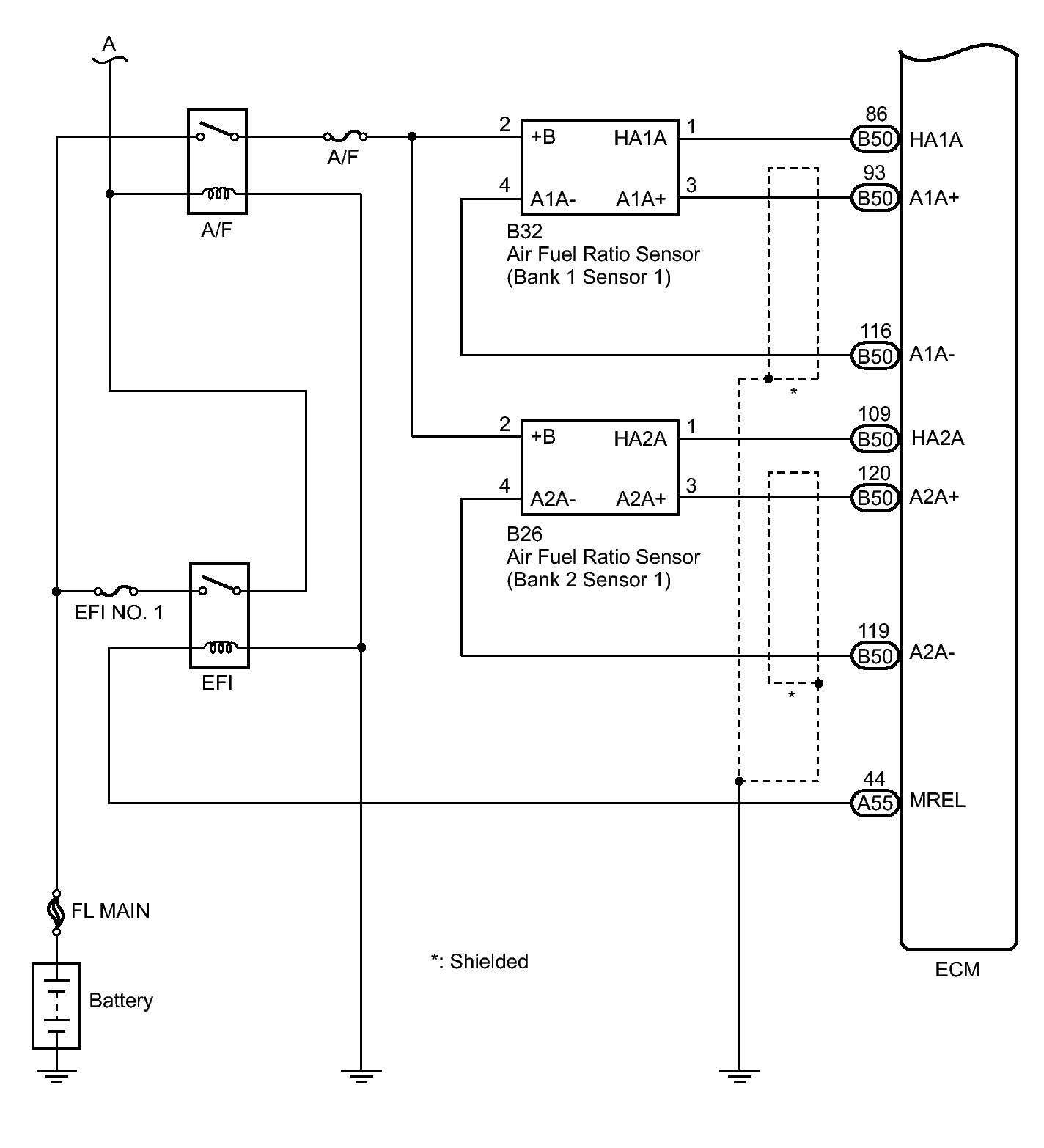

Fig 2: Identifying Emission Control System Circuit Diagram (2 Of 2)
GTY325498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
