Driver Side Knee Airbag Assembly: Components: Illustration

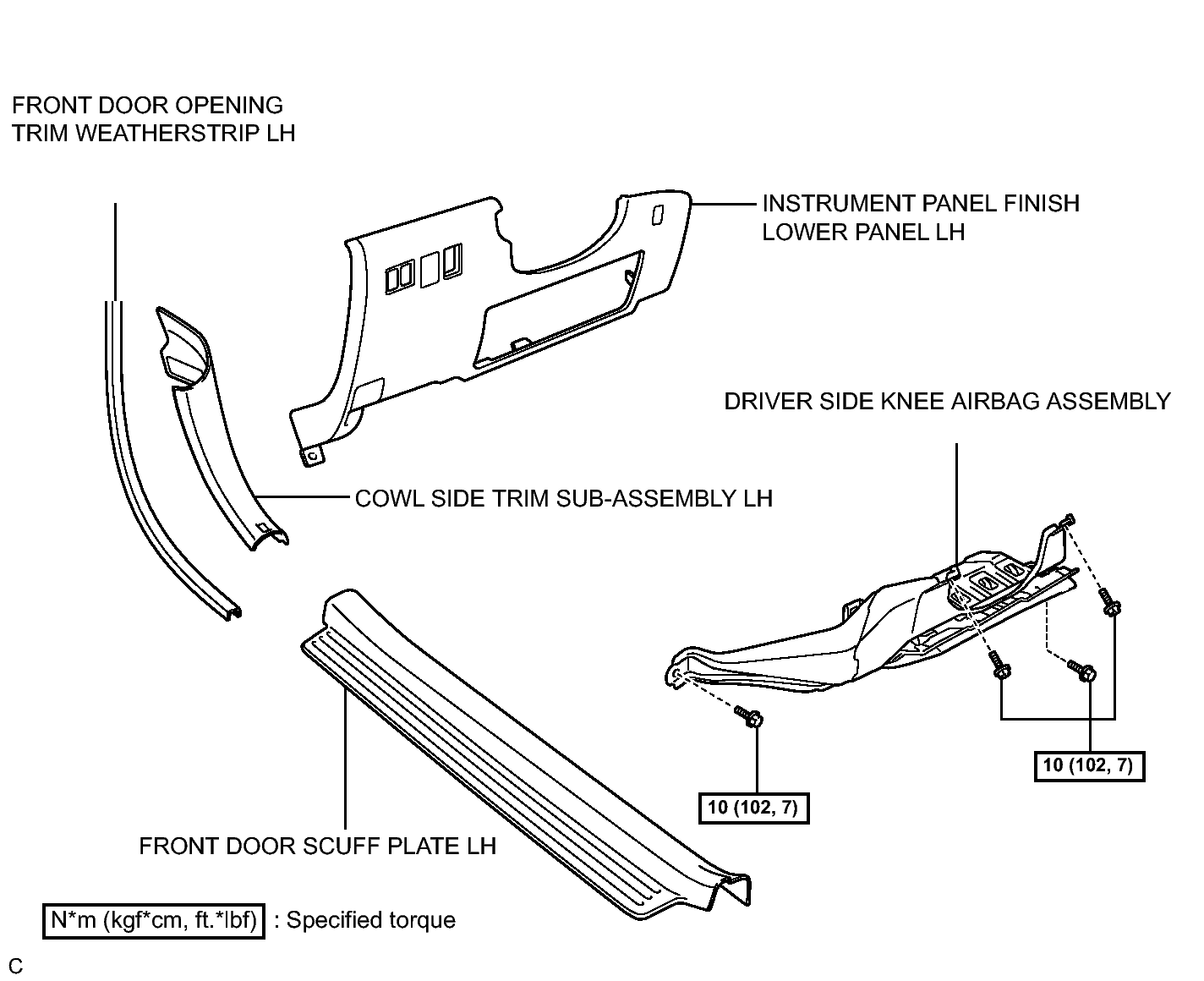

Fig 1: Identifying Driver Side Knee Airbag Assembly Replacement Components With Torque Specifications
GTY201219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
