Front Passenger Airbag Assembly: Installation: Installation

  1. INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY
    1. Attach the 5 hooks (A).

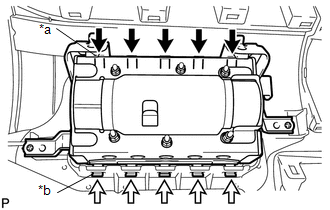

      Fig 1: Identifying Hook A And B
      GTY215991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Hook A
      *b Hook B
    2. Attach the 5 hooks (B) to install the instrument panel passenger airbag.
    3. Install the 2 screws.
  2. INSTALL NO. 2 INSTRUMENT PANEL WIRE
    1. Connect the 2 connectors to install the wire.
      NOTE:

      When handling the airbag connector, take care not to damage the airbag wire harness.

    2. Attach the clamp.
  3. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY
    1. Install the instrument panel sub-assembly. Refer to INSTALLATION .
